Industrial Wire Grommet Screen with PU Edge Reinforcement 46-76.4% Open Area SS304/316 for Mineral Processing

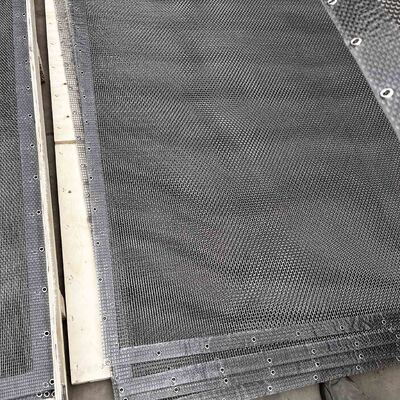

Large Image : Industrial Wire Grommet Screen with PU Edge Reinforcement 46-76.4% Open Area SS304/316 for Mineral Processing

Product Details:

Place of Origin:	China
Brand Name:	CHINA HUATAO
Certification:	ISO9001,CE,SGS etc.
Model Number:	HT

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD 100-200 per pcs
Packaging Details:	Wooden Box or Carton Box
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	100PCS/MONTH

Contact Now

Detailed Product Description

Mesh Material:

Stainless Steel 304, 304L, 316, 316L

Highlight:

Industrial wire grommet screen

PU edge reinforcement screen

Rotex replacement screen open area

Industrial Wire Grommet Screen PU Edge 46-76.4% Open Area SS304/316

Industrial Wire Grommet Screen with PU Edge Reinforcement 46-76.4% Open Area
Premium Replacement Screens for Mineral Processing

HUATAO's grommet screens provide an optimal solution for Rotex® separator screen replacement in mineral screening applications. These precision-engineered wire screens feature reinforced edges and secure attachment via eyelets for stability during high-vibration operation.

Key Features

PU edge reinforcement or 180° folded mesh edges with stainless steel grommets
Rectangular mesh design offers up to 30% larger open area than traditional screens
Enhanced material throughput without compromising screen lifespan
Compatible with all common mineral processing machine sizes and types
Optional stainless steel hook available for Megatex® screeners

Technical Specifications

Mesh Material	Stainless Steel 304, 304L, 316, 316L
Edge material	PU, canvas, or silica gel reinforced strips
Mesh type	Woven mesh
Mesh count	14-230
Wire diameter	0.0014-0.0090 inch
Open area	46.0%-76.4%

Detailed Mesh Specifications

Item	Mesh Size	Wire Size (in.)	Microns	Open Area %
1	14	0.009	1580	76.4
2	16	0.009	1360	73.3
3	18	0.009	1180	70.2
4	20	0.009	1040	67.2
5	22	0.0075	964	69.7
6	24	0.0075	868	67.2
7	26	0.0075	786	64.8
8	28	0.0075	716	62.4
9	30	0.0065	681	64.8
10	32	0.0065	630	62.7
