Stainless Steel Grommet Screen with 30% More Open Area for High Wear Resistance in Mining

Large Image : Stainless Steel Grommet Screen with 30% More Open Area for High Wear Resistance in Mining

Product Details:

Place of Origin:	China
Brand Name:	CHINA HUATAO
Certification:	ISO9001,CE,SGS etc.
Model Number:	HT

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD 100-200 per pcs
Packaging Details:	Wooden Box or Carton Box
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	100PCS/MONTH

Contact Now

Detailed Product Description

Mesh Material:

Stainless Steel 304, 304L, 316, 316L

Highlight:

Rectangular mesh grommet screen

High-capacity mining screen

Rotex replacement grommet screen

Stainless Steel Grommet Screen 30% More Open Area for Mining

Product Overview

High-Capacity Rectangular Mesh Grommet Screen with 30% More Open Area

HUATAO's grommet screens provide reliable replacement screens for Rotex® separators in mineral screening applications. These wire screens feature secure eyelet attachments for quick installation and tight fit. The mesh edges are reinforced with either heavy-duty PU strips or 180-degree folded edges with stainless steel grommets, ensuring durability in demanding mining environments.

Our rectangular mesh design offers up to 30% more open screening area than traditional meshes, increasing material throughput without compromising screen lifespan. Suitable for both coarse and fine mineral separation, these screens are available for all common cut sizes to accommodate diverse mining operations.

Compatible with various mineral processing machines including Megatex® screeners (with optional stainless steel hooks), our grommet screens combine easy installation with exceptional performance and longevity.

Key Parameters

Parameter	Specification
Mesh Material	Stainless Steel 304, 304L, 316, 316L
Edge material	PU, canvas, silica gel reinforced strips
Mesh type	Woven mesh
Mesh count	14-230
Wire diameter	0.0014-0.0090 inch
Open area	46.0%-76.4%

Detailed Specifications

Item	Mesh Size	Wire Size (in.)	Microns	Open Area %
1	14	0.009	1580	76.4
2	16	0.009	1360	73.3
3	18	0.009	1180	70.2
4	20	0.009	1040	67.2
5	22	0.0075	964	69.7
6	24	0.0075	868	67.2
7	26	0.0075	786	64.8
8	28	0.0075	716	62.4
9	30	0.0065	681	64.8
10	32	0.0065	630	62.7
11	34	0.0065	582	60.7
12	36	0.0065	541	58.7
13	38	0.0065	503	56.7
14	40	0.0065	470	54.8
15	42	0.0055	465	59.1
16	44	0.0055	437	57.5
17	46	0.0055	411	55.8
18	48	0.0055	388	54.2
19	50	0.0055	368	52.5
20	52	0.0055	348	51
21	54	0.0055	330	49.4
22	58	0.0045	323	54.6
23	60	0.0045	310	53.3
24	62	0.0045	295	51.7
25	64	0.0045	281

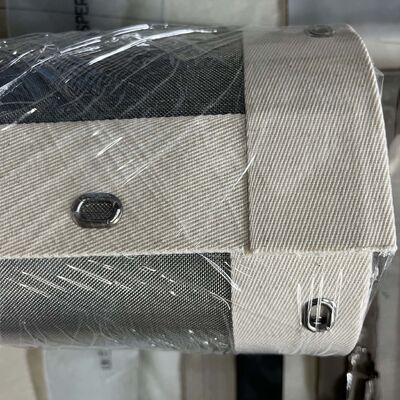

Edge Type Options

Black PU-Strip Grommet Screen

Transparent PU-Strip Grommet Screen

180° Folded Edge Grommet Screen

Production Process

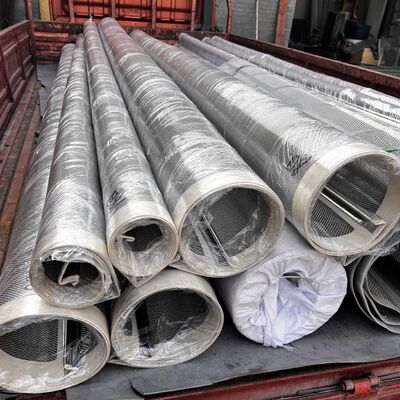

Packaging & Logistics

Wooden box package for secure shipping and handling.

Applications
