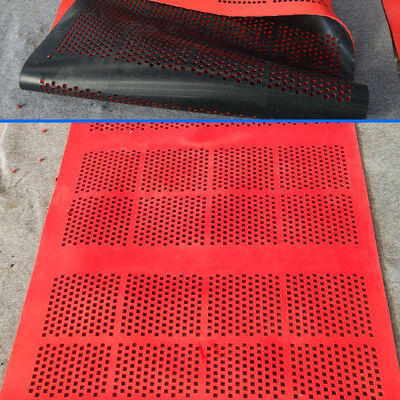

1.25m Width Red Soft/Black Hard Sections Self-Cleaning Rubber Panel for Vibrating Screens with 6-16mm Thickness

Large Image : 1.25m Width Red Soft/Black Hard Sections Self-Cleaning Rubber Panel for Vibrating Screens with 6-16mm Thickness

Product Details:

Place of Origin:	China
Brand Name:	HUATAO
Certification:	ISO9001,CE,SGS etc.
Model Number:	HTR001

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	10-300 USD per piece
Packaging Details:	Wooden box
Delivery Time:	7-10 dyays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	3000 pcs per month

Contact Now

Detailed Product Description

Material:

High-wear Rubber + Hook

Highlight:

1.25m rubber screen panel

self-cleaning vibrating screen panel

red soft black hard rubber panel

1.25m Self-Cleaning Rubber Panel for Vibrating Screens 6-16mm Thickness

1.25m Self-Cleaning Rubber Panel for Vibrating Screens featuring Red Soft/Black Hard sections. These premium rubber self-cleaning screen mats are manufactured from imported Thai rubber, delivering exceptional durability for demanding screening operations. The composite rubber structure provides superior wear resistance and operational stability, making them compatible with all vibrating screen systems—suitable for both dry and wet screening applications.

Our rubber panels combine the high throughput capacity of traditional metal meshes with significantly better durability than standard polyurethane panels. Customer feedback confirms performance that exceeds metal screens by 5-10 times and outlasts polyurethane panels by over 2 times.

Key Features & Benefits

Exceptional dry screening performance with more precise material separation than traditional screens
Minimizes clogging and significantly extends service life
Composite structure design: red section (softer, enhanced wear resistance) and black section (stiffer for structural integrity)
Available in 1m and 1.25m widths with unlimited length options
Easy hook installation system for quick replacement
Thickness options: 6mm (standard) or 8mm (custom available)
Aperture sizes ranging from 3mm (minimum) to 4-12mm (common applications)
Standard round holes with customizable rectangular hole patterns

Technical Specifications

Feature	Specification
Material	Rubber
Installation Type	Hook
Thickness	6/8/10/12/14/16mm (customizable)
Hole Size	Square, rectangle, oval round, Round etc.
Size	As client request
Color	Red-Black color
Application	Screening, separation, sorting, sieving

Why Choose HUATAO?

HUATAO's engineering team specializes in customizing rubber screens to match specific material characteristics and operational requirements. Our ISO 14001-certified production facilities ensure consistent quality and environmental responsibility. Standard configurations ship within 25 days, with expedited options available for urgent requirements. Our comprehensive quality control processes exceed industry standards, guaranteeing reliable performance in your processing plant operations.

Product Images

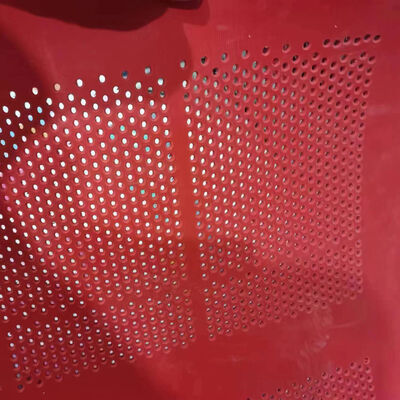

Front Face

Black Face

Working Process

Packaging & Logistics

Wooden box packaging for secure transportation and storage.

Wooden Box Packaging

Warehouse Storage

Product Advantages
