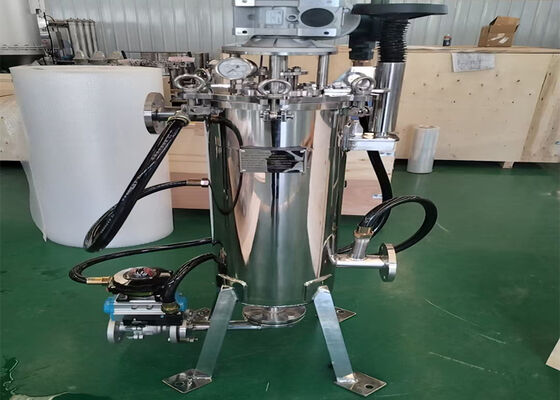

Explosion Proof Scraper Self Cleaning Filter Housing For Ink Industry
Introduction For Explosion Proof Scraper Self Cleaning Filter Housing For Ink Industry

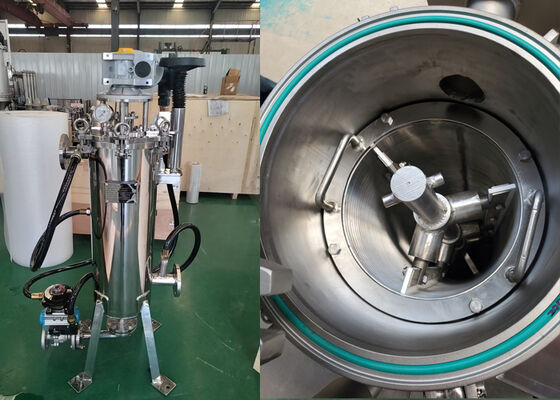

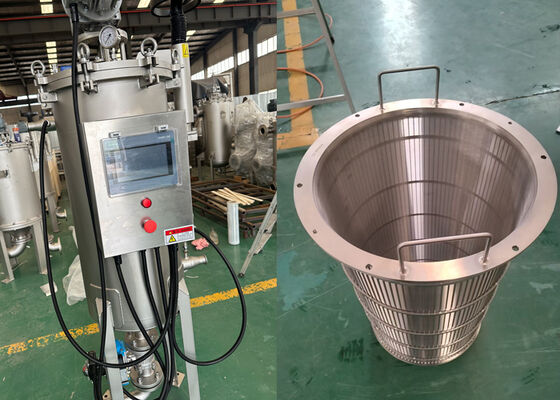

The filter receives liquid from the inlet port. When filtration is underway, impurities in the water adhere to the stainless steel screen and gradually build up on its inner surface. Our self-cleaning filter is capable of operating in fully automatic, semi-automatic, or manual mode.

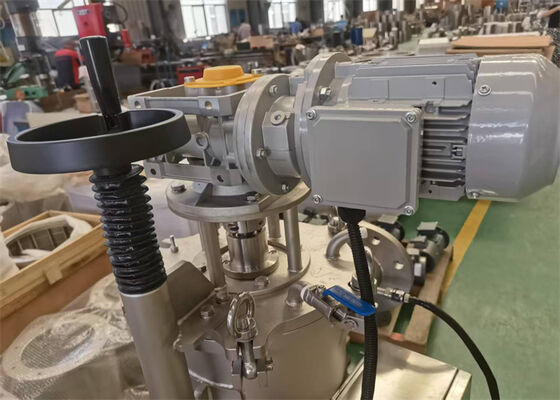

In Ink industry, onsite need to do Explosion proof, so our self cleaning filter machine equippend with explosion proof motor, explosion proof brand PLC control, explosion proof pressure sensor, explosion proof pipe.
Technical Parameters For Explosion Proof Scraper Self Cleaning Filter Housing For Ink Industry
| Filter Model |
Filter Inner Dia. |
Filter Height |
Thickness |
Filter Area |
Filtration Precision |
| HT-D219 |
250mm |
1000 |
3 |
0.2 |
50microns |
| HT-D273 |
300mm |
1450mm |
4mm |
0.5 |
| HT-D325 |
350mm |
1600mm |
4mm |
0.6 |
| HT-D400 |
450mm |
1700mm |
6mm |
0.7 |
| HT-D450 |
500mm |
1750mm |
6mm |
0.9 |
| HT-D550 |
600mm |
1850mm |
6mm |
2.0 |
| HT-D800 |
850mm |
2000mm |
6mm |
2.5 |
Working Principle For Explosion Proof Scraper Self Cleaning Filter Housing For Ink Industry
1)Automatic Cleaning —Mode 1 (Timed Cycle)
Motor:Operates and stops according to a preset schedule.When running,the motor drives the shaft to rotate,allowing the scraper to remove impurities accumulated on the filter cartridge .After the set running time is reached,the motor stops working.After the preset stopping time is reached,the motor starts running again .This cycle continues automatically.
Drain Valve:Opens and closes according to preset schedule; The loop control is identical to the motor loop control.
2)Automatic Cleaning —Mode 2 (Differential Pressure Start)
The device is equipped with pressure sensors at both the inlet and outlet to monitor the inlet pressure and outlet pressure.When the pressure difference between the inlet and outlet reaches the preset value,the device automatically transitions from the circulation state of Mode 1 to this mode;the motor activates, and the discharge process begins immediately.
3)Manual Cleaning:
The operating status of the motor and drain valve is controlled entirely via manual switches by worker.
Feature For Explosion Proof Scraper Self Cleaning Filter Housing For Ink Industry
1. High filtration accuracy, the minimum accuracy can reach 20 microns.
2. No disposable consumables are produced, saving consumable costs and environmental protection treatment costs.
3. High degree of automation, no need for manual cleaning, dual control of pressure difference and time, to achieve full automation of cleaning
4. Closed filtration to prevent leakage of hazardous materials, which is conducive to safe and efficient production.
Application Industry For Explosion Proof Scraper Self Cleaning Filter Housing
water treatment, paper making,petrochemical, sanitary, paint, ink,grease, food and beverage, etc.
