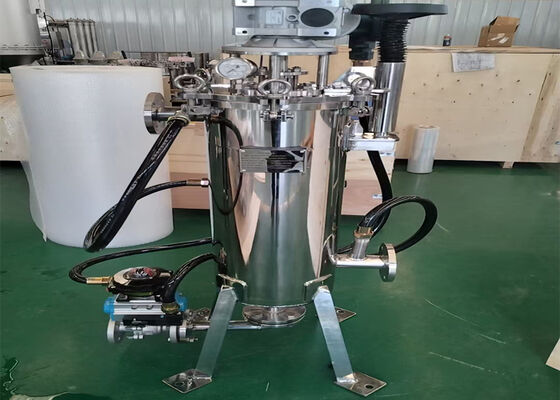

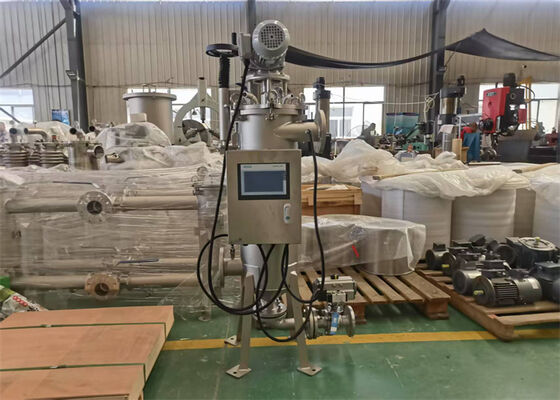

Stainless Steel Automatic Self-Cleaning Filter Housing For Filtration Wine

Large Image : Stainless Steel Automatic Self-Cleaning Filter Housing For Filtration Wine

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO,CE,SGS
Model Number:	HT009

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD4000-15000 PER SET
Packaging Details:	WOODEN CASE
Delivery Time:	20-50 DAYS
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500Sets/Month

Contact Now

Detailed Product Description

Type:	Inner Scraper	Filter Inner Diameter:	273mm Or Customed
Filter Body Thickness:	4mm	Filtration Accuracy Um:	Min. 50micron
Scraper Material:	PTFE	Warranty Period:	1 Year
Filter Body Material:	SS304 Or SS316	Filter Cartridge:	Wedge Wire Screen With SS304 Material
Inlet/Outlet Diameter:	DN50/DN100/Customized	Filter Surface:	Mirror Polish/Sand Blasting
Motor And Reducer:	Italy Siti Brand	Flow Rate:	30m3/H,Customized
HS Code:	8421299090
Highlight:	stainless steel automatic filter housing , self-cleaning wine filtration system , industrial stainless steel filter housing

Stainless Steel Automatic Self-Cleaning Filter Housing For Filtration Wine

Introduction

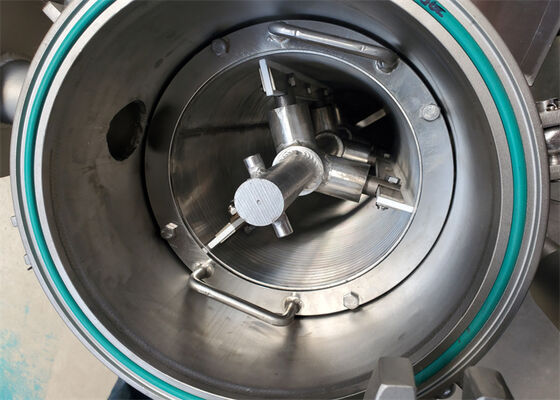

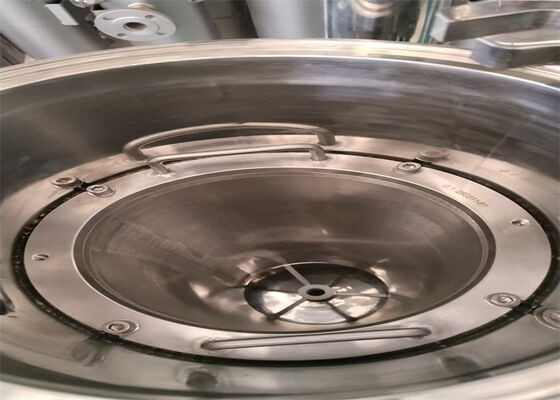

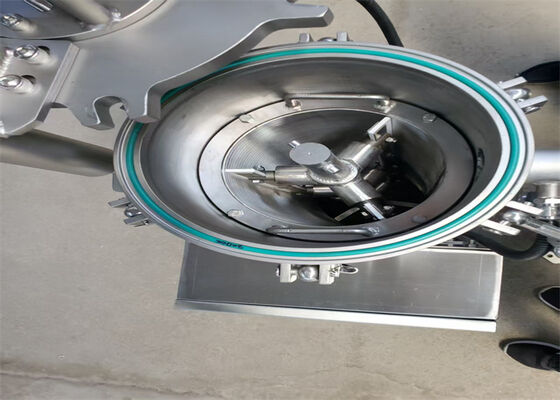

Liquid enters the filter body from inlet and flows through the filter element from inside to outside. Impurity is collected on the internal surface of the wedge wire element. The reducer motor drives scraper blade to remove the impurity continously. Cleaning takes place without interuption to flow by the rotation of the element against fixed scraper blades.The impurity accumulated during rotation is deposited into the bottom of the filter body from where it can be periodically discharged automatically via the drain outlet.

Working Principle

1)Automatic Cleaning —Mode 1 (Timed Cycle)

Motor:Operates and stops according to a preset schedule.When running,the motor drives the shaft to rotate,allowing the scraper to remove impurities accumulated on the filter cartridge .After the set running time is reached,the motor stops working.After the preset stopping time is reached,the motor starts running again .This cycle continues automatically.

Drain Valve:Opens and closes according to preset schedule; The loop control is identical to the motor loop control.

2)Automatic Cleaning —Mode 2 (Differential Pressure Start)

The device is equipped with pressure sensors at both the inlet and outlet to monitor the inlet pressure and outlet pressure.When the pressure difference between the inlet and outlet reaches the preset value,the device automatically transitions from the circulation state of Mode 1 to this mode;the motor activates, and the discharge process begins immediately.

3)Manual Cleaning:

The operating status of the motor and drain valve is controlled entirely via manual switches by worker.

Technical Parameters

Filter Model	Filter Inner Dia.	Filter Height	Thickness	Filter Area	Filtration Precision
HT-D219	250mm	1000	3	0.2	50microns
HT-D273	300mm	1450mm	4mm	0.5
HT-D325	350mm	1600mm	4mm	0.6
HT-D400	450mm	1700mm	6mm	0.7
HT-D450	500mm	1750mm	6mm	0.9
HT-D550	600mm	1850mm	6mm	2.0
HT-D800	850mm	2000mm	6mm	2.5

Feature

1. High filtration accuracy, the minimum accuracy can reach 20 microns.
2. No disposable consumables are produced, saving consumable costs and environmental protection treatment costs.
3. High degree of automation, no need for manual cleaning, dual control of pressure difference and time, to achieve full automation of cleaning
4. Closed filtration to prevent leakage of hazardous materials, which is conducive to safe and efficient production.

Application Industry

water treatment, paper making,petrochemical, sanitary, paint, ink,grease, food and beverage, etc.
