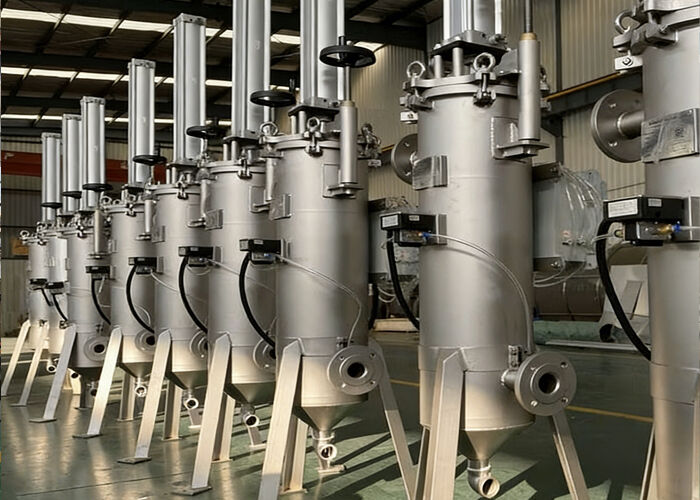

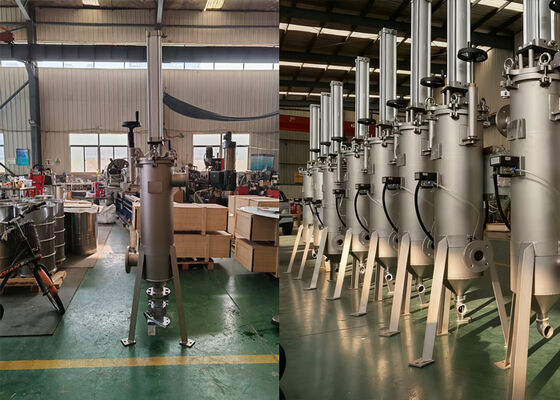

Pneumatic Scraping Autoi Self-Cleaning Filters Housing



The pneumatic scraper self-cleaning filter is an high-efficiency filtration device that automatically removes particulate impurities from the inner surface of the filter element through a mechanical scraping mechanism,enabling continuous online filtration.Primarily designed for high-viscosity applications,this filter accommodates viscosities of up to 800,000 mPa ·s and offers a filtration precision range of 50 to 1500 microns.It performs
precise filtration by rapidly scraping impurities away from the filter element's surface,thereby efficiently removing a greater volume of contaminants;it is ideally suited for filtering both water and a wide variety of viscous liquids.



[Filtration Mode ]

Liquid enters through the inlet.A spring-loaded,disc-shaped scraper presses tightly against the inner surface of the filter element,resting at its upper end.The liquid passes through the scraper and flows outward from the inner surface of the filter element;impurities are trapped on this inner surface,while the filtered liquid exits through the outlet.As time passes,impurities gradually accumulate and the differential pressure rises; consequently,the filter element is cleaned either upon reaching a preset differential pressure threshold or at scheduled intervals.



[Cleaning Mode ]

A pneumatic cylinder drives the scraper in a reciprocating vertical motion to clean the filter element.During the downward stroke,impurities are pushed by the scraper toward the bottom of the filter housing,where high-density impurities settle into the dirt collection chamber.During the upward stroke,residual impurities are scraped off and pushed toward the top of the filter element;these impurities are then flushed away by the flowing liquid,pass back through the scraper,return to the inner surface of the filter element,and are subsequently scraped away during the next downward stroke.Each cleaning cycle consists of multiple strokes;once the surface of the filter element has been cleaned,its filtration capacity is restored.Filtration continues uninterrupted during the cleaning process.



[Discharge Mode ]

After multiple cleaning cycles,once impurities have accumulated to a certain volume,the discharge valve is opened periodically to expel the waste liquid containing a high concentration of impurities;if necessary,these impurities may also be recovered.



Filter Model	Filter Inner Dia.	Filter Height	Thickness	Filtration Precision
HT-D219	250mm	1000mm	3mm	20microns
HT-D273	300mm	1450mm	4mm
HT-D450	500mm	1750mm	6mm



1)High-precision slot opening: Min. Slot 20 microns.
2)High automation degree:Which can work on-line continuously,no manual cleaning frequently.
3)Stainless steel structure:corrosion and rust prevention.
4)No disposable consumables:Save filter media cost and environment cost.
