HT 25kw High Frequency One Piece Wall Saw For High Cutting Efficiency And Depth

HT 25kw High Frequency One Piece Wall Saw For High Cutting Efficiency And Depth

Introduction For HT 25kw High Frequency One Piece Wall Saw For High Cutting Efficiency And Depth

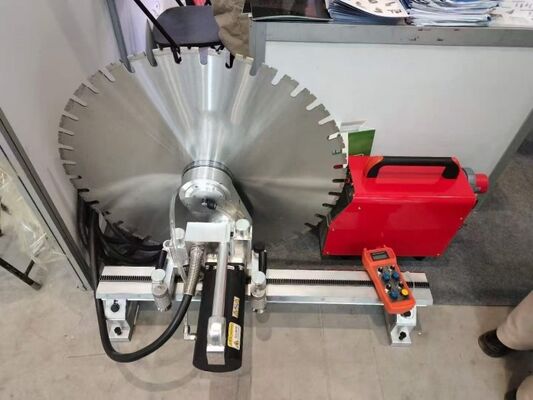

Our wall saw utilizing a high-frequency motor and diamond saw blade, the cutting speed far exceeds that of traditional angle grinders and electric breakers, allowing for rapid penetration of reinforced concrete.The maximum cutting depth reaches 500–700 mm, enabling a single-sided cut to completely penetrate thick walls, beams, and columns without the need for double-sided operation.

Data Sheet For HT 25kw High Frequency One Piece Wall Saw For High Cutting Efficiency And Depth

Product Features:

1. High Cutting Efficiency and Depth

2. High Precision and Smooth Cuts

3. Static Cutting: Low Noise, Low Vibration, and Eco-Friendly

4. Lightweight, Flexible, and Highly Adaptable

5. Stable Continuous Operation and Long Service Life

6. Intelligent Remote Control and Effortless Operation

Safety Features:

1. Electrical Safety

Leakage Protection (Core Feature): One-touch emergency shutdown in the event of current leakage or operational anomalies. The fully sealed design ensures high water resistance, making the unit suitable for complex working environments involving moisture, dust, and other challenging conditions.

Overcurrent / Overload Protection: Automatically cuts off power or reduces operating speed when current levels become abnormal, preventing motor burnout.

Phase Loss / Undervoltage Protection: Automatically shuts down the unit in the event of a missing phase in the three-phase power supply or unstable voltage conditions.

Waterproof & Insulated Design: The motor and electrical control box feature a high ingress protection (IP) rating, making them fully compatible with water-cooled cutting operations.

2. Mechanical & Overload Protection

Full Saw Blade Guard: Covers the non-cutting areas of the blade to prevent accidental contact and protect against flying debris.

Anti-Kickback / Anti-Jamming: An intelligent control system adjusts the feed rate in milliseconds to minimize the risk of the saw blade jamming or kicking back.

Emergency Stop (E-Stop): Equipped with dual emergency stop buttons—located on both the remote control and the machine body—allowing for immediate shutdown in hazardous situations.

3. Intelligent Control Safety

Remote Wireless Control: Enables the operator to maintain a safe distance from the hazardous work zone, thereby avoiding risks associated with cuts, flying debris, and structural collapse.

Automatic Cruise & Load Monitoring: Real-time monitoring of current and torque; automatically reduces speed or shuts down the unit in the event of an overload.

4. Structural & Operational Safety

Secure Guide Rail Locking: The cutting head is firmly locked to the guide rail to prevent accidental shifting or detachment.

Dual-Switch Activation: Requires the simultaneous engagement of two switches to start the machine, preventing accidental activation.

Cooling & Burnout Prevention: Features a water-cooling circulation system combined with temperature monitoring to provide automatic protection against overheating.
