Product Details:
Payment & Shipping Terms:
|
| Name: | Hydraulic Baler Machine | Pressure: | 140tons |
|---|---|---|---|
| Voltage: | 220V/380V 50Hz | Application: | Waste Paper Collection |
| Cylinder Diameter: | 230mm | Bale Size: | 1800*1100*850 |
| Highlight: | High Pressure Hydraulic Baler Machine,140 Tons Hydraulic Baler Machine,Waste Paper Hydraulic Baler Machine |
||

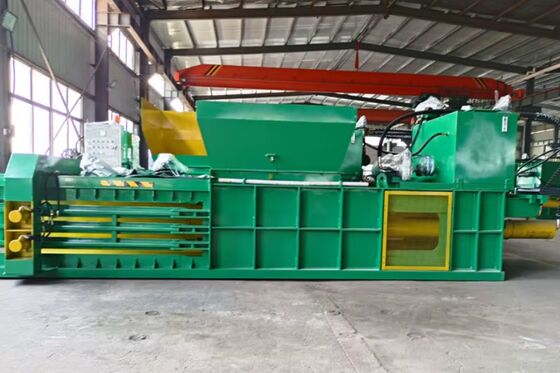

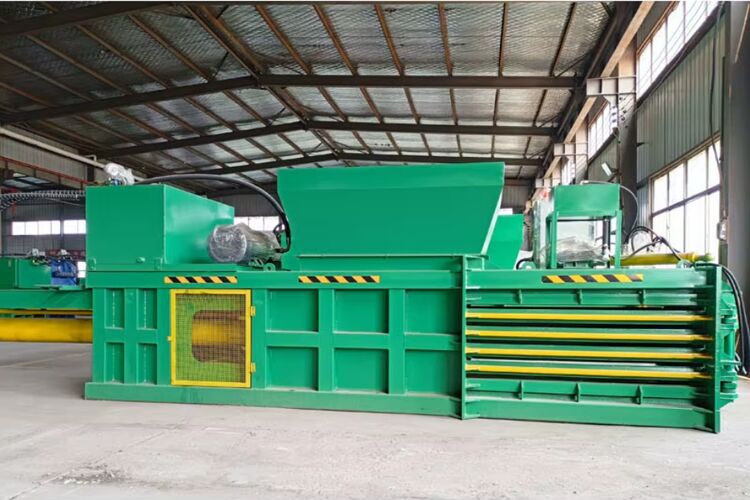

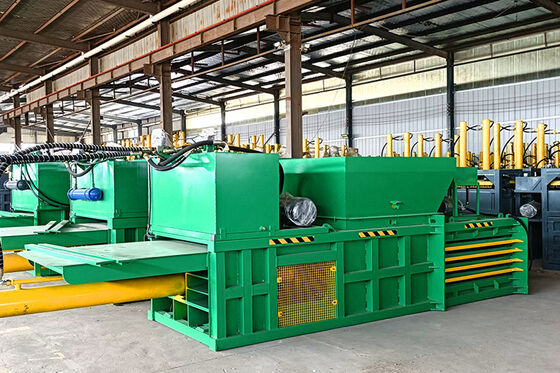

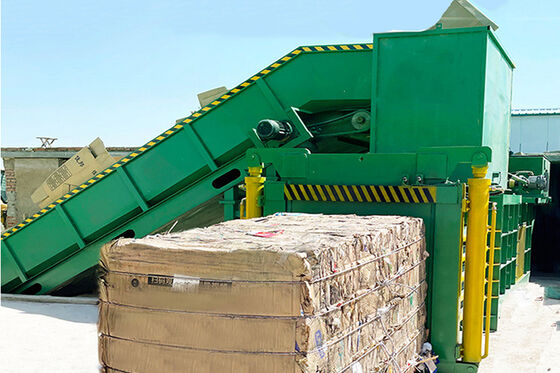

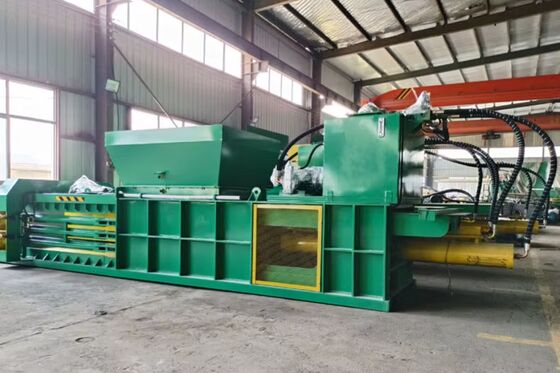

Waste Paper Hydraulic Baler Machine With High Pressure Of 140 Tons
Horizontal Hydraulic Baler Description:
Horizontal hydraulic baling press machines are efficient and stable baling and compression equipment, primarily used for baling loose and bulky materials such as waste paper (cardboard boxes, newspapers, etc.), waste plastics (PET bottles, plastic films, crates, etc.), and straw.
This equipment utilizes high-pressure power generated by a hydraulic system to powerfully compress materials, forming them into dense blocks.
1. Significantly reduces the volume of stored products, increasing the unit density of the materials and thus saving space.
2. Facilitates the transportation and storage of compressed materials and improves the production efficiency of recycling centers.
3. Reduces labor costs and saves expenses.
Horizontal Hydraulic Baler Specification:
| Product Name | Fully Automatic Horizontal Hydraulic Baler | |
| Product Model | HTHB-140 | HTHB-120 |
| Pressure | 140T | 120T |
| Oil Pump | 50A38 Double Combination Pump | 50A35 Double Combination Pump |
| Electronic Control System | PLC Computer Automatic Degree Infrared Sensor,Object Detection | |
| Inlet Size | 1100mm*1800mm | 1100mm* 1600mm |
| Outlet Size | 1800(Adjustable) *1100*1250mm | 1800(Adjustable) *1100*900mm |
| Bale Density | 400-450kg/m3 | 400kg/m3 |
| Capacity | 8-10T/H | 6-10T/H |
| Power | 37KW+5KW+4KW | 30KW+4KW+4KW |
![]()
Technical advantage of baler
01 Highly efficient in energy-saving design
Adopt advanced energy-saving technology to reduce energy consumption, improve baling efficiency and
02 Intelligent control system
Equipped with the intelligent operation interface to realize accurate control and improve the baling
03 Durable material selection
Selection of high strong durable material to extend the lifetime and reduce maintenance frequency.
04 Intelligent recognition system
Integration of intelligent technology can automatically tie up to improve efficiency and accuracy of
05 Environmental protection and energy saving
The energy-saving motor and the optimization design conforms to green production standard by
06 Customized design
Customized baling machine is available according to customer demand in meeting the requirements
07 Diversified baling requirements
Different materials such as waste cardboard, plastics, textiles, etc., are to provide professional
![]()
