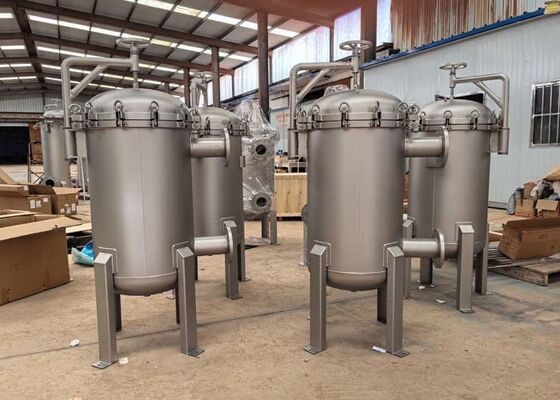

25 Micron Bag Filters 304/316L Stainless Steel Multi Bags Filter

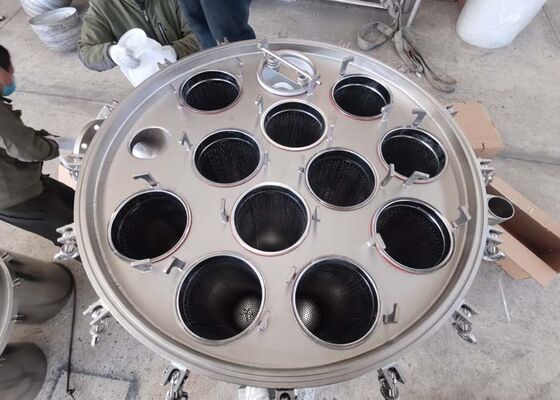

The liquid enters from the side or lower inlet of the filter bag.The filter bag is expanded due to the impact of the liquid and the uniform pressure surface.The liquid material is evenly distributed on the inner surface of the whole Filter bag.The filtered liquid passing through the filter bag and flow into the pipeline.The particle impurities are intercepted in the filter bag.

1.Operating temperature <200°C (depending on seal material);

2.Precision-manufactured from high-quality,pure SS304/316L stainless steel;

3.Quick-opening lid design reduces labor costs;

4.Optimized support basket openings increase flow rate and filter bag life;

5.High-quality butt-weld connections provide strength and corrosion resistance;

6.Oval bottom provides a perfect fit for the filter bag;

7.Multiple models with different filter areas are available to meet various flow requirements;

8.Matte sandblasted exterior surface for an elegant and easy-to-clean look;

9.Mirror-polished interior surface meets sanitary requirements;

10.O-type elastomeric seal seals the housing for easy tightening and durability;

11.High-precision filtration,suitable for all fine particles and suspended solids,with a filtration range of 0.5 to 200 microns.
