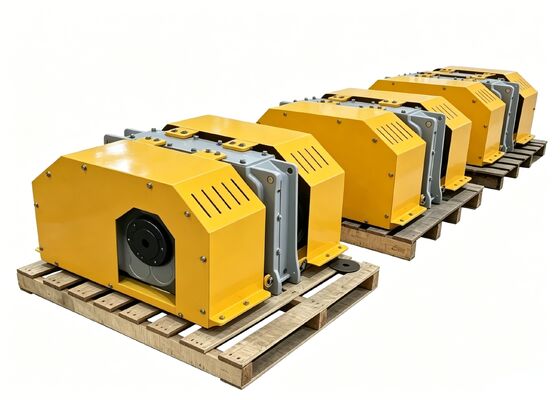

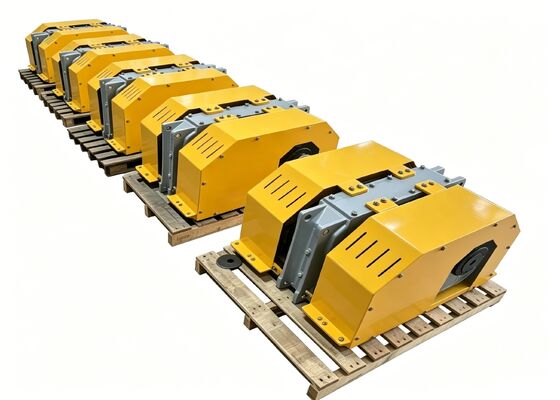

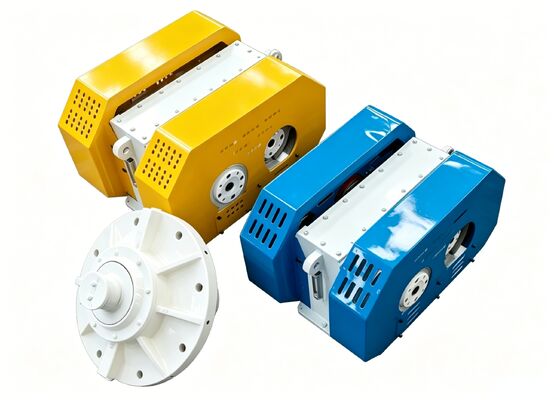

Description of Vibrating Screen Exciter
As A Core Component, Huatao's 501 Force Exciter Embodies The Principles Of German Engineering And Value. It Combines A Long Service Life, Extremely Calm Operation, And Minimum Maintenance. The Housing Is Designed For Rapid Heat Loss, Ensuring Reliable Performance And A 3-5 Year Lifespan In Continuous Duty.
Working Principle

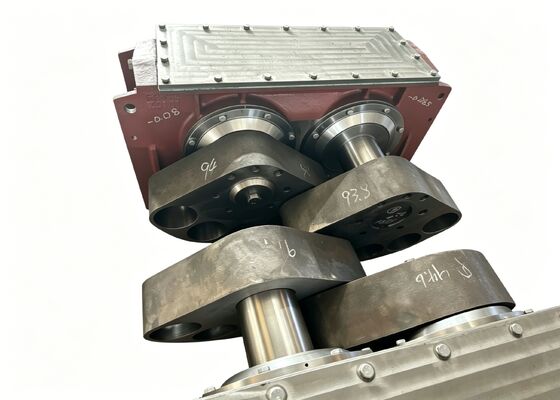

Inside the exciter housing, a drive shaft and a driven shaft are installed. Each shaft is equipped with a pair of eccentric blocks of identical weight at both ends. During operation, the electric motor drives the drive shaft to rotate, which in turn drives the driven shaft via a pair of gears to rotate in opposite directions but at a synchronized speed. As the eccentric blocks rotate at high speed, they generate centrifugal inertial force, thereby producing a directional exciting force that drives the screen machine to vibrate continuously.

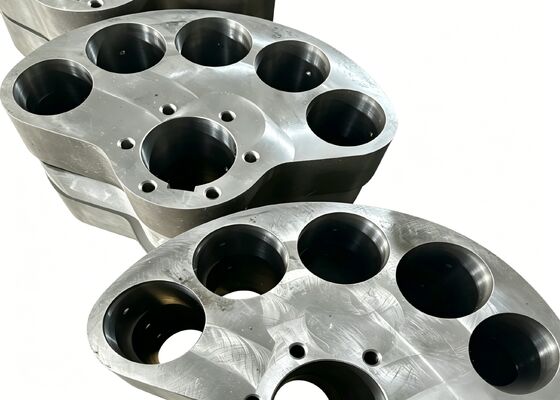

By adjusting the rotational speed of the eccentric blocks or changing the number and position of the counterweight plugs, the unbalanced rotating mass of the system can be varied, achieving precise control over the exciting force and working torque.To ensure stable and reliable operation of the transmission system, the sealed housing is filled with gear oil, which provides continuous lubrication and effective heat dissipation for the gears and bearings, significantly reducing temperature rise and wear. This ensures that the exciter maintains smooth and reliable operation even under high-intensity, long-duration working conditions.
The main structural components of the exciter include: the drive shaft, driven shaft, eccentric blocks, counterweight plugs, bearings, gear pair, and sealed housing.
Key Features
HUATAO exciters are built upon a foundation of world-class manufacturing precision and quality control. The exciter housing is precision cast, with all small components CNC machined for exact fit and reliability. Specifically, the housing is processed on an international Class III machine tool—the Neway CNC horizontal boring and milling machine—ensuring superior structural accuracy. The exciter shaft is machined using a high-precision twin-tower machine tool machining center for perfect process hole alignment. The eccentric blocks are processed on a Mitsubishi vertical machining center from Japan, guaranteeing consistent balance and performance. Furthermore, HUATAO employs a professional coordinate measuring instrument (CMM) to verify every critical dimension. Together, these advanced manufacturing technologies and rigorous inspections deliver exciters with exceptional durability, stable vibration output, and long-term reliability—key advantages for demanding mining screen applications.
- Long service life and extremely calm operation
- Minimum maintenance requirements
- Optimum, application-orientated graduation of exciters
- Low operation noise level
- 98% availability
- Ideal for use in continuous operation
After Sales Service
Standard Warranty: 12 months operating hours.
Quality Warranty: Resent with free cost once any quality problem.
Global Support: 24/7 technical assistance.
HUATAO GROUP
Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies...
Why Choose Us?
- Other Products
- OEM/ODM capabilities
- Competitive pricing & bulk discounts
- Fast shipping & customs clearance support
Project design service
- Polyurethane Screen Media
- Crusher spare parts
- Mill Liner
- Screening equipment
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.
Q: Can I request a customized size and design?
A: Absolutely! We offer customized.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
