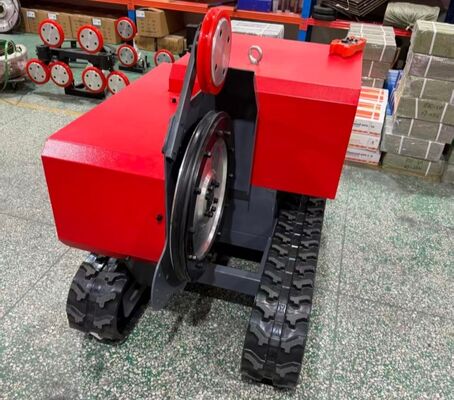

37kw Self Propelled Powerful Crawler Wire Saw For Static Non Destructive Cutting

37kw Self-Propelled Powerful Crawler Wire Saw For Static Non-Destructive Cutting

Introduction For 37kw Self-Propelled Powerful Crawler Wire Saw For Static Non-Destructive Cutting

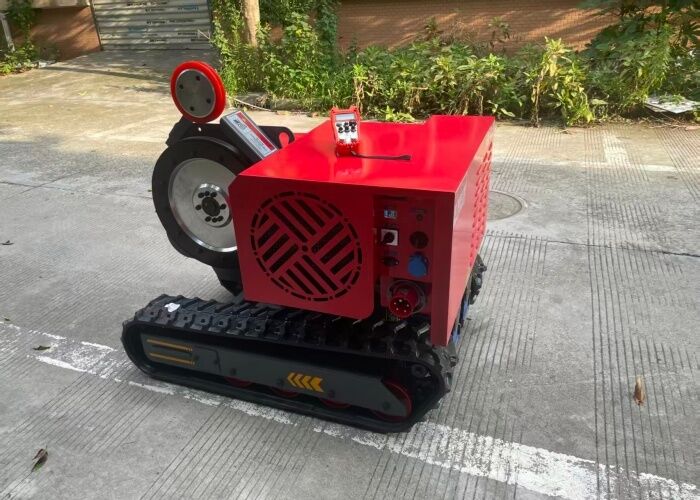

The crawler wire saw is a self-propelled, remotely operated diamond wire saw that features "flexible mobility + static non-destructive cutting + high-efficiency cutting," making it ideal for bridge, large foundation, thick concrete, and complex site demolition projects.

Data Sheet For 37kw Self-Propelled Powerful Crawler Wire Saw For Static Non-Destructive Cutting

Product Features:

1.Main Drive: Variable frequency motor, flywheel diameter approximately 500mm, guide wheel 250mm, stable transmission.

2.Crawler Travel: Dual travel motors + gearbox, electric drive, 6 hours of charging, 2.5 hours of continuous travel.

3.Control System: PLC + dual frequency converters, stepless speed regulation, soft start, overload protection, rope breakage protection.

4.Diamond Rope: High-strength steel cable + diamond beads, wear-resistant, long lifespan, suitable for high-intensity continuous cutting.

5.Water Cooling System: Independent water supply, cooling the wire saw, reducing dust, and extending rope life.

6.Modular Design: Main unit, tracks, and guide wheels can be quickly disassembled and assembled, facilitating transportation, installation, and maintenance.

Core Advantages:

1. Powerful and Strong Cutting Capacity

380V/50Hz three-phase power, main motor + dual frequency converter, high torque and strong overload capacity.

Linear speed 0–40m/s steplessly adjustable, can be equipped with ropes 20–300m long, easily cutting C50+ high-grade, densely reinforced concrete.

2. Crawler Self-Propelled, Extremely Adaptable to Various Sites

Rubber track chassis, strong climbing ability (up to 30°), can travel directly on mud, gravel, foundation pits, and bridge surfaces.

No crane/manual handling required, remote control walking + steering, convenient access to confined spaces, high-altitude operations, and water-adjacent operations.

The entire machine weighs approximately 500–1100kg, with compact dimensions (approximately 1300×1350×1350mm), making it easy to disassemble and transport.

3. Fully Remote Control Operation, Safe and Labor-Saving

Wireless/wired dual remote control allows for remote start/stop, speed adjustment, movement, and rope retraction, keeping operators away from the cutting area for high safety.

Remote control is waterproof and drop-proof, supporting continuous movement for 2.5 hours and instant braking; single-person operation is possible.

Motor/Electrical Control System IP54–IP56 protection ensures stable operation in dusty and humid construction environments.

4. Static and Non-Damaging, Environmentally Friendly and Low-Interference

Extremely low vibration (<5mm/s), no impact, no noise, zero damage to the preserved structure and surrounding buildings.

Water-cooled dust suppression, dust concentration <1mg/m³, no exhaust gas, low pollution, meeting urban green construction requirements.

Smooth cut (error ±2mm), saw kerf only about 11mm, reducing material waste and eliminating the need for secondary trimming.

5. Versatile cutting capability, covering a wide range of working conditions.

Capable of horizontal, vertical, inclined, curved, and blind cutting; suitable for beams, columns, walls, foundations, piers, bridge decks, pipe piles, etc.

Maximum cutting size up to 3000×8000mm, unlimited depth, capable of cutting ultra-large volumes of concrete.

Suitable for various projects such as docks, bridge piers, and tunnels.
