Automatic Self-Cleaning Filter for Syrup and Liquid Filtration

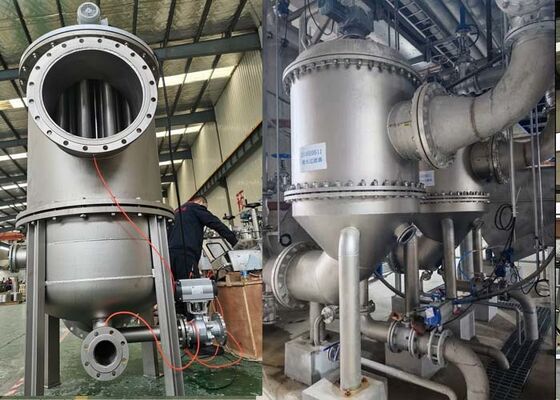

Large Image : Automatic Self-Cleaning Filter for Syrup and Liquid Filtration

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO,CE,SGS
Model Number:	HT-081

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD3000-20000 PER SET
Packaging Details:	WOODEN CASE
Delivery Time:	20-50 DAYS
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	200Sets/Month

Contact Now

Detailed Product Description

Goods:	Automatic Self-Cleaning Filter For Syrup And Liquid Filtration	Flow Rate:	As Per Customer
Filtration Rating::	200um Or Customized By Customer	Filter Housing Material:	SS304 Or SS316L For Choose
Warranty Period:	1 Year	HS Code:	8421299090
Filter Outer Surface Treatment:	Sandblasting	Filter Inner Structure:	Wedge Wire Filter Elements

Automatic Self-Cleaning Filter for Syrup and Liquid Filtration

Introduction For Automatic Self-Cleaning Filter for Syrup and Liquid Filtration

This automatic backwash filter is equipped with multiple filter cartridges. It is ideal for filtering high-flow liquids with high impurity content and can trap solid particles in water and low-viscosity fluids. Thanks to its specially designed backwash arm, each cartridge can be cleaned separately to prevent blockages. This greatly improves operational efficiency and lengthens the service life of the equipment.

Working Principle For Automatic Self-Cleaning Filter for Syrup and Liquid Filtration

This automatic backwash filter is fitted with multiple filter cartridges. It handles high-flow liquids with heavy impurities and separates solid particles from water and low-viscosity fluids. Its dedicated backwash arm cleans each cartridge individually to prevent blockages, optimizing operation efficiency and service life.

Automatic Self-Cleaning Filter for Syrup and Liquid Filtration 0

Technical Parameters For Automatic Self-Cleaning Filter for Syrup and Liquid Filtration

Model	Filter Diameter	Filter Height	Thickness	Filter Area	Slot
HTF-D400	450mm	1500mm	6mm	0.8	0.02mm
HTF-D450	550mm	2000mm	6mm	0.9
HTF-D550	600mm	2500mm	6mm	1.0
HTF-D800	850mm	3000mm	6mm	2.0
HTF-D900	950mm	3500mm	6mm	2.5
HTF-D1200	1700mm	4000mm	6mm	3.0

Feature For Automatic Self-Cleaning Filter for Syrup and Liquid Filtration

*No disposable consumables,Save filter media cost and environment cost.

*Stainless steel structure:Variously materials, corrosion and rust prevention.

*High-precision slot opening: Min. Slot 20 microns.

*High automation degree:Which can work on-line continuously,no manual cleaning frequently
