Automatic Backwash Filter (self-cleaning)

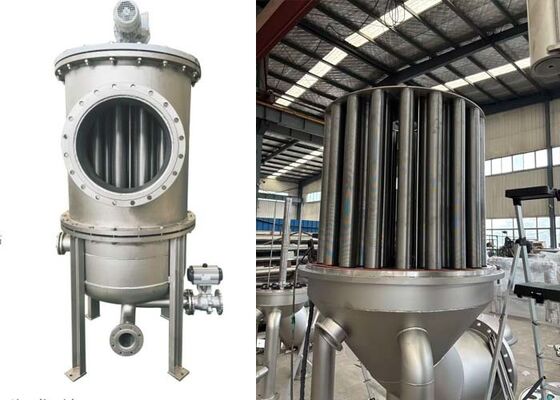

Large Image : Automatic Backwash Filter (self-cleaning)

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO,CE,SGS
Model Number:	HT-086

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD3000-20000 PER SET
Packaging Details:	WOODEN CASE
Delivery Time:	20-50 DAYS
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	200Sets/Month

Contact Now

Detailed Product Description

Goods:	Automatic Backwash Filter (self-cleaning)	Flow Rate:	As Per Customer
Filtration Rating::	200um Or Customized By Customer	Filter Housing Material:	SS304 Or SS316L For Choose
Warranty Period:	1 Year	HS Code:	8421299090
Filter Outer Surface Treatment:	Sandblasting	Filter Inner Structure:	Wedge Wire Filter Elements

Automatic Backwash Filter (self-cleaning)

Introduction For Automatic Backwash Filter (self-cleaning)

Our automatic back flushing filter contains numerous internal filter elements, perfectly applicable to high-flow filtration of liquids with abundant impurities. It is able to separate solid particles from water and low-viscosity media. The custom-designed backwash arm conducts individual cleaning for each filter element to prevent jams, helping the device run more efficiently and last longer.

Working Principle For Automatic Backwash Filter (self-cleaning)

This automatic backwash filter is fitted with multiple filter cartridges. It handles high-flow liquids with heavy impurities and separates solid particles from water and low-viscosity fluids. Its dedicated backwash arm cleans each cartridge individually to prevent blockages, optimizing operation efficiency and service life.

Automatic Backwash Filter (self-cleaning) 0

Technical Parameters For Automatic Backwash Filter (self-cleaning)

Model	Filter Diameter	Filter Height	Thickness	Filter Area	Slot
HTF-D400	450mm	1500mm	6mm	0.8	0.02mm
HTF-D450	550mm	2000mm	6mm	0.9
HTF-D550	600mm	2500mm	6mm	1.0
HTF-D800	850mm	3000mm	6mm	2.0
HTF-D900	950mm	3500mm	6mm	2.5
HTF-D1200	1700mm	4000mm	6mm	3.0

Feature For Automatic Backwash Filter (self-cleaning)

*No disposable consumables,Save filter media cost and environment cost.

*Stainless steel structure:Variously materials, corrosion and rust prevention.

*High-precision slot opening: Min. Slot 20 microns.

*High automation degree:Which can work on-line continuously,no manual cleaning frequently
