Mining Hydrocyclone Separator for Mineral Processing
Production Description:

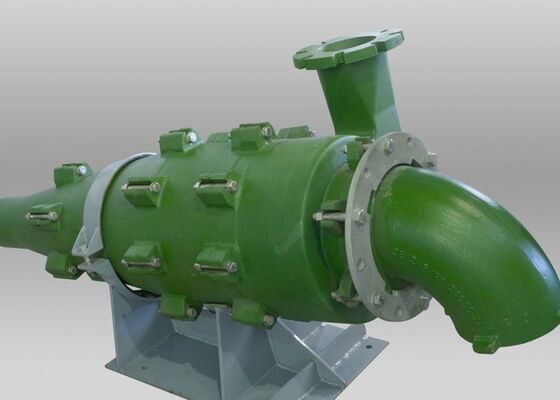

This industrial mining hydrocyclone separator is manufactured using wear resistant polyurethane material and advanced molding technology. The cyclone is designed for slurry classification concentration desliming and dewatering applications in mineral processing plants. Its high efficiency separation performance helps improve flotation recovery rates and grinding circuit productivity. The hydrocyclone contains no moving parts which significantly reduces mechanical failures and maintenance costs. The replaceable vortex finder and apex components provide convenient maintenance and extended service life. This product is suitable for handling abrasive slurries including quartz sand copper tailings gold ore pulp and coal slurry under high pressure working conditions.
Efficient Classification and Desliming Solution for Mining Industry
Engineered for precision and reliability, our hydrocyclone delivers outstanding performance in classification and separation processes. The optimized internal structure ensures efficient slurry flow and stable operation. The materials used provide strong resistance to abrasion and chemical attack, ensuring long-term durability. The system’s simple design without moving parts reduces maintenance needs and operational costs. This makes it a practical solution for industries seeking efficient and reliable processing equipment.
Mining hydrocyclones are commonly applied in gold ore, iron ore, copper ore, lead-zinc ore, lithium ore, silica sand, coal slurry, and tailings recovery systems. The equipment is suitable for classification, concentration, desliming, dewatering, and fines recovery in both wet grinding and beneficiation processes.
Working Principle
The slurry is fed into the cyclone tangentially under pressure, generating a high-speed rotating flow inside the cyclone body. Under centrifugal force:
- Coarse and heavy particles move toward the outer wall and discharge from the underflow outlet.
- Fine and light particles move upward through the vortex finder and exit from the overflow outlet.
This continuous separation process provides accurate particle classification and improved grinding efficiency.
Main Applications
Mineral Processing Plant
- Grinding circuit classification
- Ball mill closed-circuit operation
- Fine particle recovery
- Tailings concentration
Coal Washing Industry
- Coal slurry classification
- Dense medium separation
- Fine coal recovery
Sand & Aggregate Industry
- Sand washing
- Silica sand classification
- Fines recovery system
Industrial Applications
- Wastewater treatment
- Sludge dewatering
- Oil sand separation
- Soil washing systems
Hydrocyclones are widely used for wet classification of particles ranging from 10–200 microns in mining and mineral processing operations.
Product Advantages
High Classification Efficiency
Advanced cyclone structure design improves particle separation accuracy and reduces misplaced particles.
No Moving Parts
Simple internal structure ensures low maintenance requirements and reliable long-term operation.
Wear Resistant Materials
Optional polyurethane, ceramic, rubber, or high-chrome liners provide excellent abrasion resistance for highly abrasive slurries.
Large Processing Capacity
Capable of handling high slurry throughput while maintaining stable classification performance.
Low Energy Consumption
Optimized inlet design reduces turbulence and improves operational efficiency.
Easy Installation & Maintenance
Compact structure occupies minimal floor space and allows quick replacement of wear parts.
Technical Specifications
| Model |
Cyclone Diameter (mm) |
Feed Pressure (MPa) |
Capacity (m³/h) |
Cut Size (μm) |
Overflow Size |
Underflow Size |
| FX-75 |
75 |
0.05–0.25 |
3–10 |
10–40 |
25 mm |
14 mm |
| FX-100 |
100 |
0.05–0.25 |
5–16 |
15–45 |
32 mm |
18 mm |
| FX-150 |
150 |
0.05–0.30 |
10–35 |
20–74 |
40 mm |
22 mm |
| FX-200 |
200 |
0.05–0.30 |
20–60 |
25–80 |
65 mm |
35 mm |
| FX-250 |
250 |
0.10–0.35 |
40–100 |
30–100 |
80 mm |
45 mm |
| FX-350 |
350 |
0.10–0.40 |
70–180 |
40–120 |
100 mm |
65 mm |
| FX-500 |
500 |
0.10–0.40 |
150–350 |
50–150 |
150 mm |
90 mm |

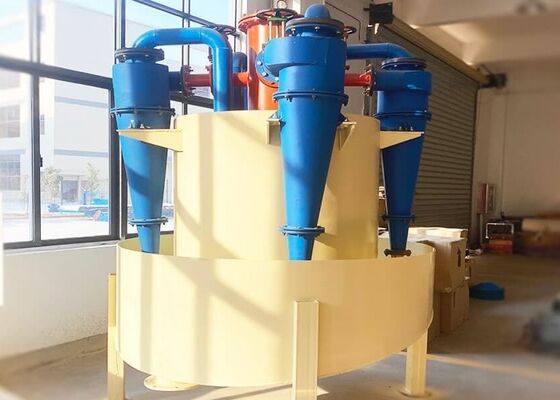

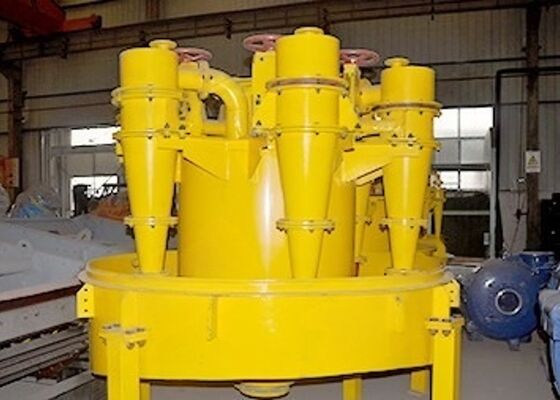

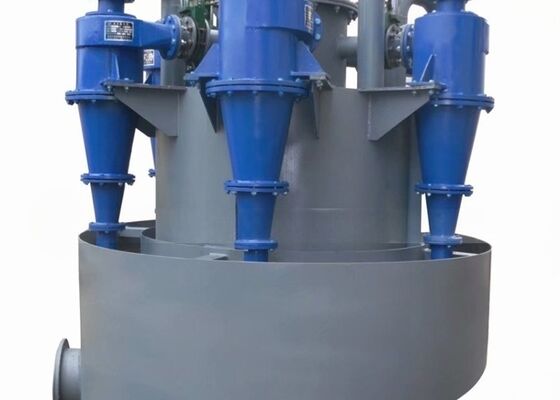

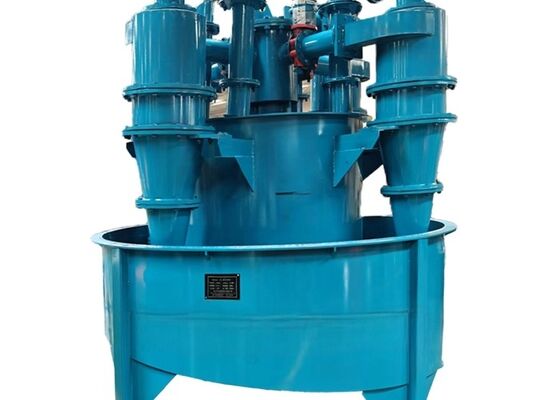

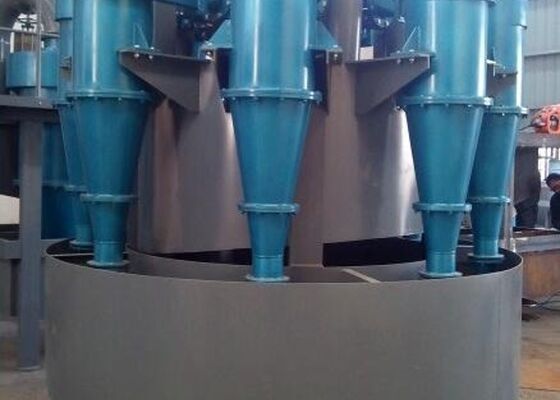

Customized models and cluster hydrocyclone systems are available according to customer requirements.
Optional Materials
- Polyurethane (PU)
- Ceramic Lined
- Rubber Lined
- High Chrome Alloy
- Ni-hard Material
Polyurethane hydrocyclones are especially popular for mining applications because of their lightweight structure, corrosion resistance, and excellent wear life.
Features of PU Hydrocyclone
- Excellent abrasion resistance
- Long service life
- Lightweight structure
- Corrosion resistant
- Easy liner replacement
- Reduced maintenance downtime
- Suitable for highly abrasive ore slurry
Typical Process Flow
Ball Mill → Slurry Pump → Hydrocyclone → Overflow to Flotation → Underflow Return to Ball Mill
This closed-circuit grinding system improves grinding efficiency and particle size control in mineral beneficiation plants.
Why Choose Us
- Professional mining equipment manufacturer
- Rich export experience in global mining projects
- OEM & customized production available
- Strict quality inspection before shipment
- Fast delivery and technical support
- Complete wear spare parts supply
RFQ (Request For Quotation)
To provide an accurate quotation, please kindly confirm the following information:
- What material will be processed?
- Required processing capacity (m³/h)?
- Feed particle size and desired overflow size?
- Slurry concentration and density?
- Operating pressure?
- Required material: PU, ceramic, rubber, or metal?
- Single cyclone or cyclone cluster?
- Application: classification, desliming, dewatering, or concentration?
- Installation drawing or existing system details?
Packaging & Delivery
- Standard export wooden case or steel frame packaging
- Suitable for sea freight, air freight, and container transportation
- Fast delivery for standard models
- OEM logo and customized color available
