Automatic Backwash Self-Cleaning Filters

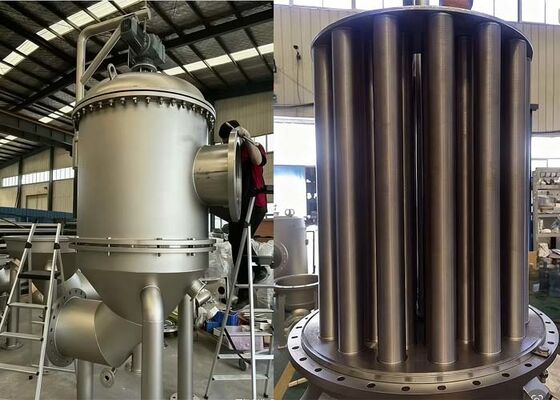

Large Image : Automatic Backwash Self-Cleaning Filters

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO,CE,SGS
Model Number:	HT-092

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD3000-20000 PER SET
Packaging Details:	WOODEN CASE
Delivery Time:	20-50 DAYS
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	200Sets/Month

Contact Now

Detailed Product Description

Goods:	Automatic Backwash Self-Cleaning Filters	Flow Rate:	As Per Customer
Filtration Rating::	200um Or Customized By Customer	Filter Housing Material:	SS304 Or SS316L For Choose
Warranty Period:	1 Year	HS Code:	8421299090
Filter Outer Surface Treatment:	Sandblasting	Filter Inner Structure:	Wedge Wire Filter Elements
Highlight:	automatic backwash industrial filter , self-cleaning water filter , industrial self-cleaning filter system

Automatic Backwash Self-Cleaning Filters

Introduction For Automatic Backwash Self-Cleaning Filters

This self-cleaning backwash filter is fitted with numerous filter elements. It is well suited for filtering high-flow liquids with heavy contaminants, removing solid particles from water and fluids of low viscosity. A dedicated backwash arm cleans every filter element individually to stop blockages, which boosts operational efficiency and extends the equipment’s service life.

Working Principle For Automatic Backwash Self-Cleaning Filters

This automatic backwash filter is fitted with multiple filter cartridges. It handles high-flow liquids with heavy impurities and separates solid particles from water and low-viscosity fluids. Its dedicated backwash arm cleans each cartridge individually to prevent blockages, optimizing operation efficiency and service life.

Automatic Backwash Self-Cleaning Filters 0

Technical Parameters For Automatic Backwash Self-Cleaning Filters

Model	Filter Diameter	Filter Height	Thickness	Filter Area	Slot
HTF-D400	450mm	1500mm	6mm	0.8	0.02mm
HTF-D450	550mm	2000mm	6mm	0.9
HTF-D550	600mm	2500mm	6mm	1.0
HTF-D800	850mm	3000mm	6mm	2.0
HTF-D900	950mm	3500mm	6mm	2.5
HTF-D1200	1700mm	4000mm	6mm	3.0

Feature For Automatic Backwash Self-Cleaning Filters

*No disposable consumables,Save filter media cost and environment cost.

*Stainless steel structure:Variously materials, corrosion and rust prevention.

*High-precision slot opening: Min. Slot 20 microns.

*High automation degree:Which can work on-line continuously,no manual cleaning frequently
