High Performance MDI Polyurethane Flip Flow Screen for Coal Preparation Plants

Large Image : High Performance MDI Polyurethane Flip Flow Screen for Coal Preparation Plants

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO9001, CE
Model Number:	PU Screen Panel
Document:	2026-Huatao Catalogue of Mi...on.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	USD 35 - 45/Piece
Packaging Details:	Standard Export Packing
Delivery Time:	5-7 Days
Payment Terms:	T/T,Western Union,L/C,D/A,D/P
Supply Ability:	10000 Pieces Per Month

Contact Now

Detailed Product Description

Material:	Polyurethane Material And Embedded Steel Frame	Aperture Size:	Min.0.053mm
Type:	Ws85,Ls Series	Thickness:	30mm,40mm,50mm
Specification:	OEM	Production Capacity:	10000PCS/Month
Highlight:	MDI polyurethane flip flow screen , coal preparation plant screen panels , high performance polyurethane screen panels

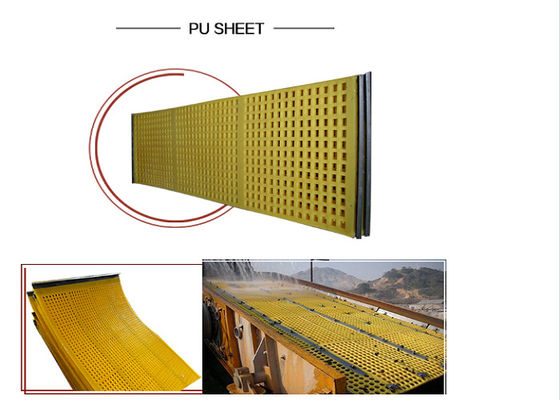

High Performance MDI Polyurethane Flip Flow Screen for Coal Preparation Plants

Product Overview

The High Performance MDI Polyurethane Flip Flow Screen is a cutting-edge separation tool designed specifically for the challenges of coal preparation and the handling of damp, sticky materials. Utilizing high-quality MDI (Methylene Diphenyl Diisocyanate) raw materials, these screen mats possess superior elasticity and rebound characteristics compared to standard TDI-based polyurethanes. The "flip-flow" or "flip-flop" action involves the mats being alternately tensioned and relaxed at high speeds, which creates a high-acceleration environment that effectively "throws" the material and prevents it from sticking or blinding the apertures. This is especially critical in coal washing, where moisture and clay content can easily clog traditional vibrating screens.

Beyond its anti-clogging capabilities, this screen mat is built for extreme durability. The wear-resistant urethane is designed to provide a service life 3 to 8 times longer than that of steel-based screening media. Each mat is engineered to withstand the constant flexing required by flip-flow machines without cracking or losing its tension. We offer these mats in thicknesses ranging from 30mm to 50mm, with specialized slot openings (0.1–2.5mm wide) that ensure precise dewatering of coal fines. The mats are often designed as one-piece molded panels to eliminate weak points and ensure uniform performance across the entire screen deck. Whether you are processing mineral sands, iron ore, or coal tailings, the MDI Flip Flow Screen provides a high-opening-rate solution that maximizes throughput while minimizing the need for manual cleaning and maintenance, making it a vital asset for modern, high-efficiency processing plants.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

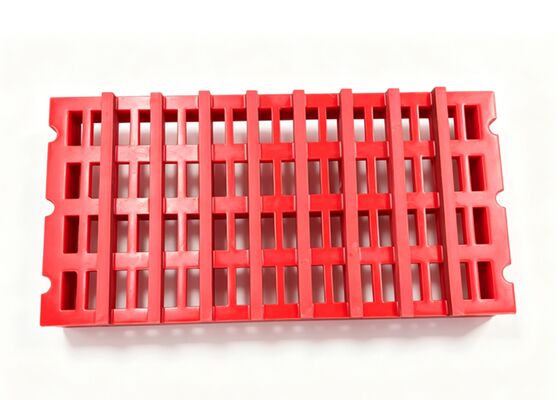

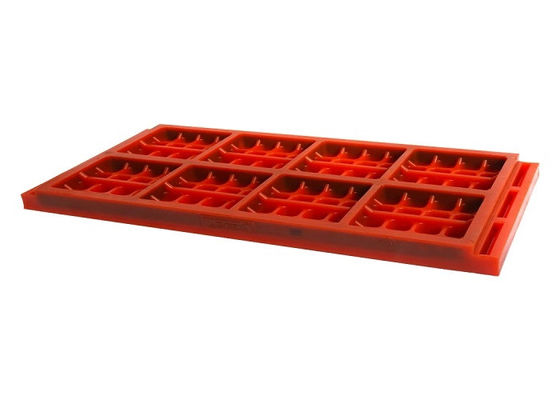

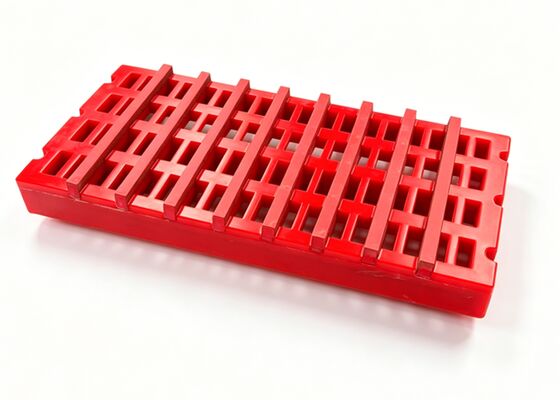

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed
Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular

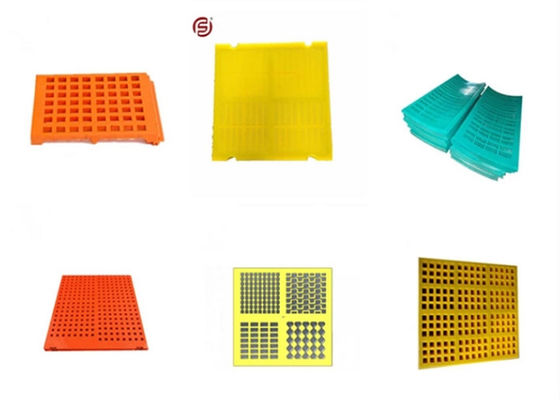

Cell Type	Slot,Square,Round etc.
Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
