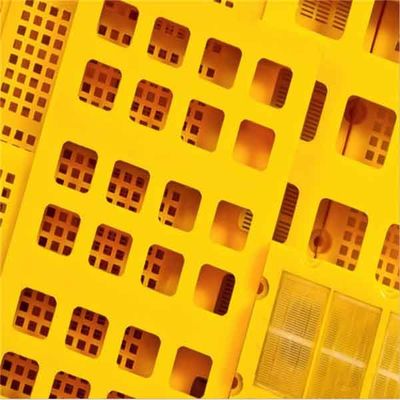

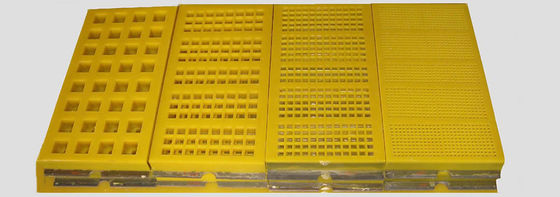

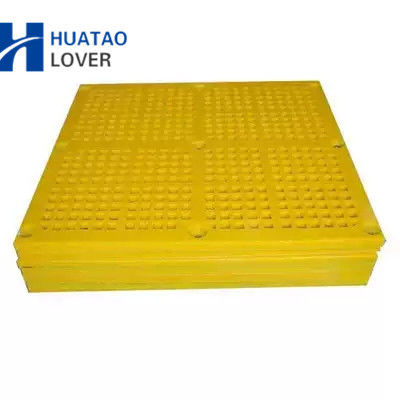

Reinforced Polyurethane Tensioned Screen with Steel Wire Core for Long Life

Large Image : Reinforced Polyurethane Tensioned Screen with Steel Wire Core for Long Life

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO9001, CE
Model Number:	PU Screen Panel
Document:	2026-Huatao Catalogue of Mi...on.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	USD 35 - 45/Piece
Packaging Details:	Standard Export Packing
Delivery Time:	5-7 Days
Payment Terms:	T/T,Western Union,L/C,D/A,D/P
Supply Ability:	10000 Pieces Per Month

Contact Now

Detailed Product Description

Material:	Polyurethane Material And Embedded Steel Frame	Aperture Size:	Min.0.053mm
Type:	Ws85,Ls Series	Thickness:	30mm,40mm,50mm
Specification:	OEM	Production Capacity:	10000PCS/Month
Highlight:	Reinforced Polyurethane Screen Panels , Steel Wire Core Screen Panels , Long Life Tensioned Screen

Reinforced Polyurethane Tensioned Screen with Steel Wire Core for Long Life

Product Overview

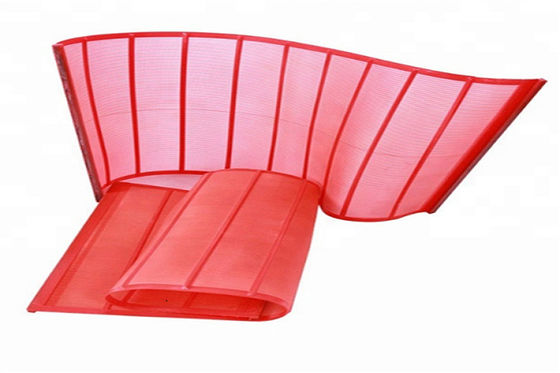

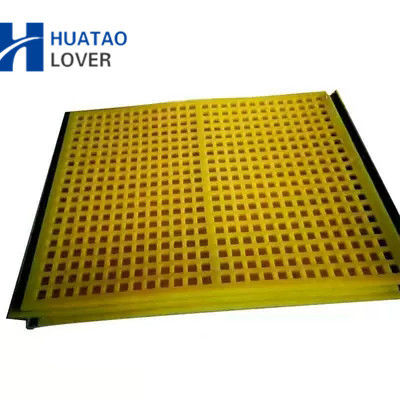

The Reinforced Polyurethane Tensioned Screen with Steel Wire Core is engineered to combine the high-capacity performance of tensioned media with the legendary durability of polyurethane. This product is specifically designed for side-tensioned or end-tensioned vibrating machines where the screen must be pulled tight over a cambered deck. The "secret" to its performance is the high-tensile embedded steel wire core, which provides the necessary tensile strength to maintain a tight fit while allowing the specially formulated polyurethane surface to handle the abrasive impact of the material. This construction ensures that the screen remains "active" and does not sag, even under the heavy loading conditions typical of mining and aggregate sizing.

One of the most significant advantages of this tensioned screen is its extended service life, which typically ranges from 3 to 8 times that of traditional metal wire mesh. This is due to the inherent wear resistance of the polyurethane, which absorbs the energy of falling rocks and resists the corrosive effects of wet environments. The panels are available in standard widths like 305mm or 515mm and can be manufactured in lengths reaching 1220mm to fit various deck layouts. The aperture selection is vast, including precision slots from 0.1mm to 2.5mm for dewatering tasks, or larger square holes for grading. Each screen features reinforced hooks (often made of metal or reinforced PU) to ensure a secure grip by the machine’s tensioning bars. By replacing standard wire cloth with our reinforced polyurethane tensioned screens, operations can drastically reduce the frequency of screen failures and enjoy a much quieter, more efficient screening process with superior material sizing accuracy.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed
Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular

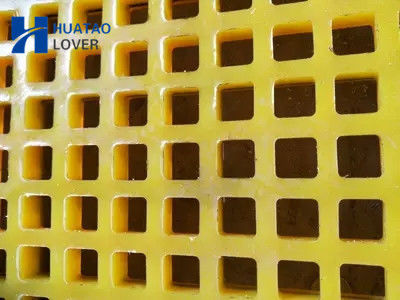

Cell Type	Slot,Square,Round etc.
Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
