Custom Size PIPO Type Polyurethane Screen Panel for Aggregate Grading Systems

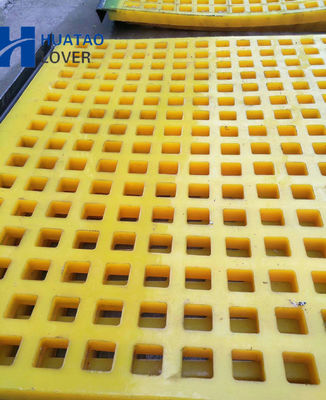

Large Image : Custom Size PIPO Type Polyurethane Screen Panel for Aggregate Grading Systems

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO9001, CE
Model Number:	PU Screen Panel
Document:	2026-Huatao Catalogue of Mi...on.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	USD 35 - 45/Piece
Packaging Details:	Standard Export Packing
Delivery Time:	5-7 Days
Payment Terms:	T/T,Western Union,L/C,D/A,D/P
Supply Ability:	10000 Pieces Per Month

Contact Now

Detailed Product Description

Material:	Polyurethane Material And Embedded Steel Frame	Aperture Size:	Min.0.053mm
Type:	Ws85,Ls Series	Thickness:	30mm,40mm,50mm
Specification:	OEM	Production Capacity:	10000PCS/Month
Highlight:	PIPO polyurethane screen panels , Custom size aggregate grading screens , Polyurethane screen panels for grading systems

Custom Size PIPO Type Polyurethane Screen Panel for Aggregate Grading Systems

Product Overview

The Custom Size PIPO Type Polyurethane Screen Panel is a highly versatile and widely used modular screening solution for global mining and aggregate grading systems. The "PIPO" (Pin-In Pin-Out) system is renowned for its ease of installation and replacement, featuring a unique fastening mechanism that allows panels to be swapped out without the need for specialized tools or heavy labor. This modularity is essential for plants that experience localized wear, as only the affected panels need to be replaced rather than the entire screen deck. Each PIPO panel is manufactured with a high-tensile strength embedded steel frame and a specially formulated polyurethane surface, ensuring it can handle the heavy impact of granite, basalt, and other abrasive materials.

We understand that no two grading systems are identical, which is why we offer customized dimensions and aperture configurations. While standard sizes like 305x305mm and 305x610mm are common, our PIPO panels can be tailored to fit specific machine footprints. The panels are available in thicknesses of 30mm, 45mm, or 50mm, with slot or square openings designed to meet the exact cutoff points required by the operator. For example, slot widths as fine as 0.1mm are available for high-precision sand recovery, while larger openings are suited for primary aggregate grading. With a wear life 3 to 8 times greater than metal sieves, these PIPO panels offer a superior return on investment by reducing maintenance intervals and ensuring consistent grading quality over thousands of operating hours. Their ability to resist corrosion and reduce operational noise makes them an ideal choice for environmentally conscious and high-productivity quarries worldwide.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed
Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular
Cell Type	Slot,Square,Round etc.
Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
