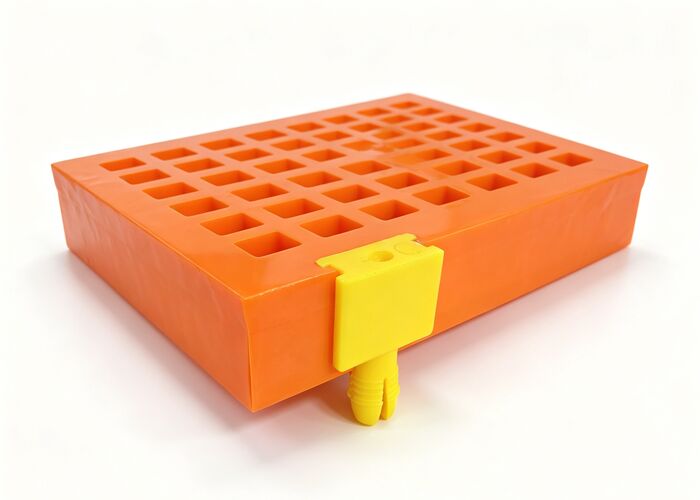

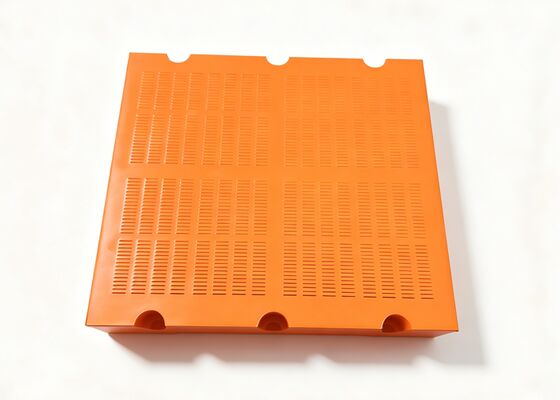

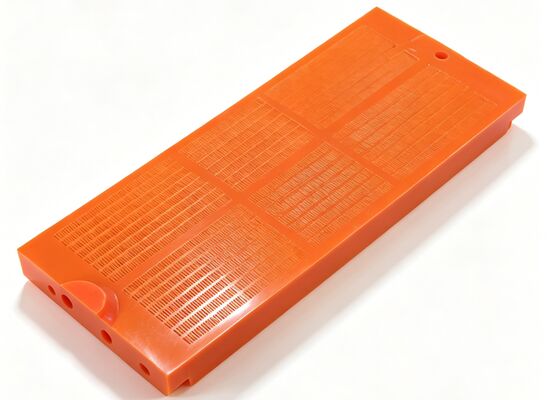

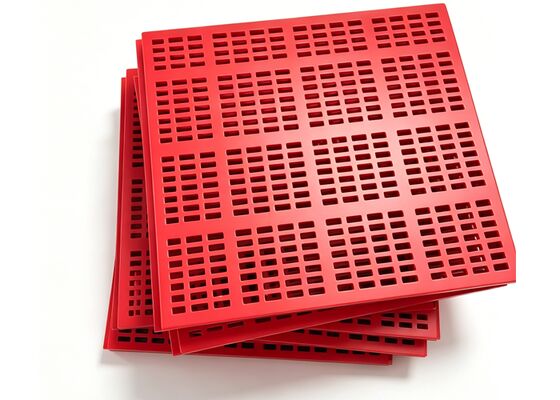

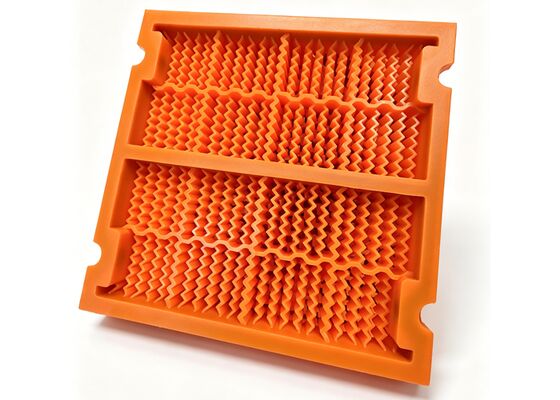

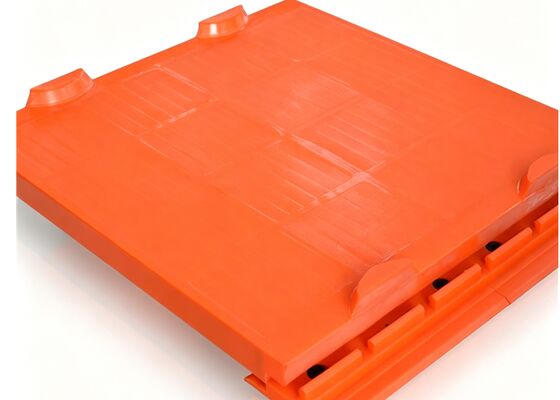

High Frequency Polyurethane Fine Screen Mesh for Kaolin and Silica Sand Processing

Large Image : High Frequency Polyurethane Fine Screen Mesh for Kaolin and Silica Sand Processing

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO9001, CE
Model Number:	PU Screen Panel
Document:	2026-Huatao Catalogue of Mi...on.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	USD 35 - 45/Piece
Packaging Details:	Standard Export Packing
Delivery Time:	5-7 Days
Payment Terms:	T/T,Western Union,L/C,D/A,D/P
Supply Ability:	10000 Pieces Per Month

Contact Now

Detailed Product Description

Material:	Polyurethane Material And Embedded Steel Frame	Aperture Size:	Min.0.053mm
Type:	Ws85,Ls Series	Thickness:	30mm,40mm,50mm
Specification:	OEM	Production Capacity:	10000PCS/Month
Highlight:	polyurethane fine screen mesh , kaolin processing screen panel , silica sand screen mesh

High Frequency Polyurethane Fine Screen Mesh for Kaolin and Silica Sand Processing

Product Overview

Designed specifically for the precision requirements of the non-metallic mineral industry, the High Frequency Polyurethane Fine Screen Mesh is the ideal solution for Kaolin and Silica Sand processing. Fine material separation requires a screen that can handle high vibration frequencies while maintaining an ultra-fine aperture without clogging. This screen mesh is manufactured from specially formulated polyurethane, which is naturally hydrophobic and smooth, allowing fine particles and slurries to pass through the 0.1mm to 2.5mm slot openings with minimal resistance. The high-tensile strength is provided by an embedded steel wire core or frame, which prevents the mesh from stretching or tearing during high-speed operations.

In kaolin and silica sand washing plants, moisture is always present. The polyurethane surface excels in these dewatering tasks, offering 3–8 times the service life of traditional stainless steel fine meshes. This durability is vital because fine screening equipment is often difficult to access for maintenance. We offer various thicknesses like 30mm or 45mm to balance the need for high open area with the necessity of structural support. The standard sizes, such as widths of 305mm and lengths up to 1220mm, ensure that our screens are compatible with most multi-deck high-frequency sifters used in the industry. By utilizing our polyurethane fine screens, processors can achieve a sharper cut point in their classification, ensuring that kaolin and silica sand products meet strict industrial standards for purity and grain size while maximizing the recovery of fine materials.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed
Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular
Cell Type	Slot,Square,Round etc.
Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
