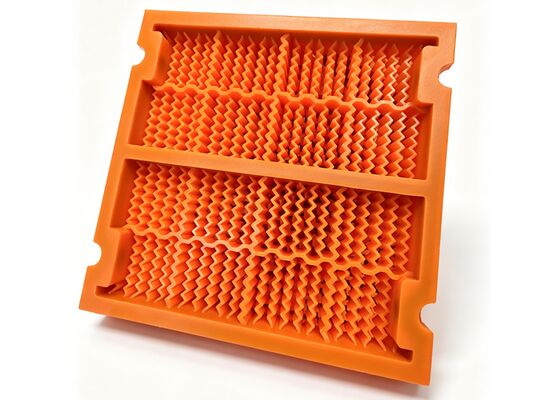

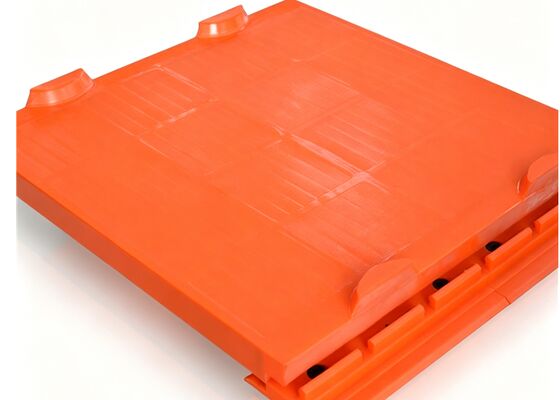

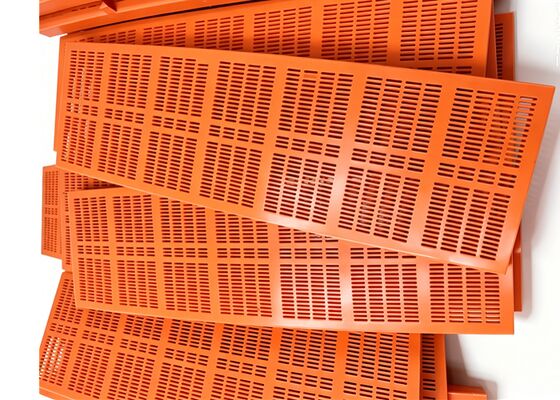

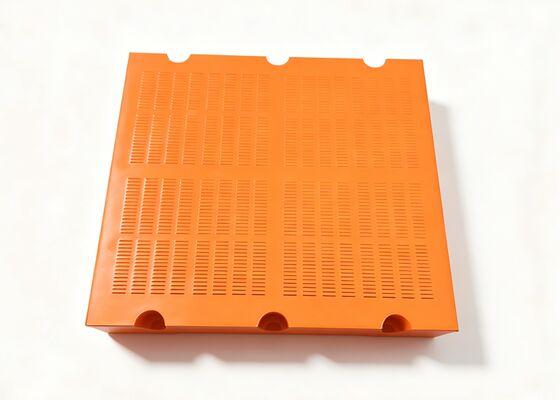

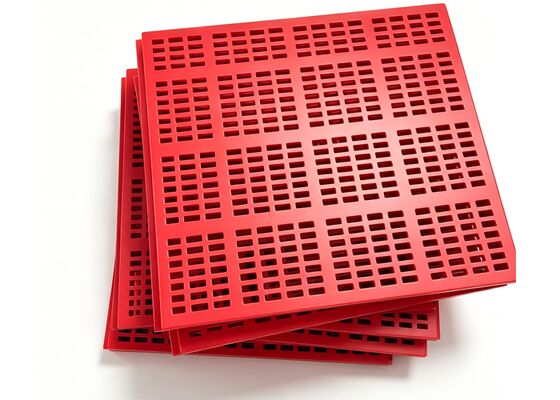

Polyurethane Impact Sieve Plate with Metal Base for Primary Scalping Screens

Large Image : Polyurethane Impact Sieve Plate with Metal Base for Primary Scalping Screens

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO9001, CE
Model Number:	PU Screen Panel
Document:	2026-Huatao Catalogue of Mi...on.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	USD 35 - 45/Piece
Packaging Details:	Standard Export Packing
Delivery Time:	5-7 Days
Payment Terms:	T/T,Western Union,L/C,D/A,D/P
Supply Ability:	10000 Pieces Per Month

Contact Now

Detailed Product Description

Material:	Polyurethane Material And Embedded Steel Frame	Aperture Size:	Min.0.053mm
Type:	Ws85,Ls Series	Thickness:	30mm,40mm,50mm
Specification:	OEM	Production Capacity:	10000PCS/Month
Highlight:	Polyurethane impact sieve plate , Metal base scalping screen , Primary screen polyurethane panel

Polyurethane Impact Sieve Plate with Metal Base for Primary Scalping Screens

Product Overview

The Polyurethane Impact Sieve Plate with Metal Base is specifically engineered for the most punishing stage of mineral processing: primary scalping. In this stage, the screen is subjected to the direct impact of massive, sharp-edged rocks as they are discharged from primary crushers or feeders. To survive these conditions, the sieve plate features a specially formulated, high-impact polyurethane surface bonded to a heavy-duty metal base or an extra-thick high-tensile steel frame. This combination allows the panel to absorb the kinetic energy of falling materials without fracturing or deforming, while the metal base provides the structural rigidity needed to span large screen decks.

The performance of these impact plates is unrivaled in the industry, offering a service life 3 to 8 times longer than traditional manganese steel or heavy-duty rubber liners. This longevity is critical because replacing primary scalping screens is a labor-intensive and expensive process. We offer these plates in substantial thicknesses, such as 45mm or 50mm, to provide an extra "wear cushion" against abrasion. The apertures are typically larger for scalping tasks but can be customized with tapered holes to prevent material from getting wedged (anti-plugging). Standard widths like 500mm or 515mm and lengths up to 1220mm allow these plates to be used in most heavy-duty vibrating grizzlies and scalpers. By utilizing our polyurethane impact sieve plates, mining and quarry operators can protect their downstream equipment, reduce noise levels, and achieve a significantly lower cost-per-ton during the most demanding phases of material sizing.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed
Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular
Cell Type	Slot,Square,Round etc.
Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
