Modular PU Screen Panel with Pin and Sleeve Fastening for Quarrying

Large Image : Modular PU Screen Panel with Pin and Sleeve Fastening for Quarrying

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO9001, CE
Model Number:	PU Screen Panel
Document:	2026-Huatao Catalogue of Mi...on.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	USD 35 - 45/Piece
Packaging Details:	Standard Export Packing
Delivery Time:	5-7 Days
Payment Terms:	T/T,Western Union,L/C,D/A,D/P
Supply Ability:	10000 Pieces Per Month

Contact Now

Detailed Product Description

Material:	Polyurethane Material And Embedded Steel Frame	Aperture Size:	Min.0.053mm
Type:	Ws85,Ls Series	Thickness:	30mm,40mm,50mm
Specification:	OEM	Production Capacity:	10000PCS/Month
Highlight:	Modular PU screen panels , Pin and sleeve fastening screen panels , Quarrying polyurethane screen panels

Modular PU Screen Panel with Pin and Sleeve Fastening for Quarrying

Product Overview

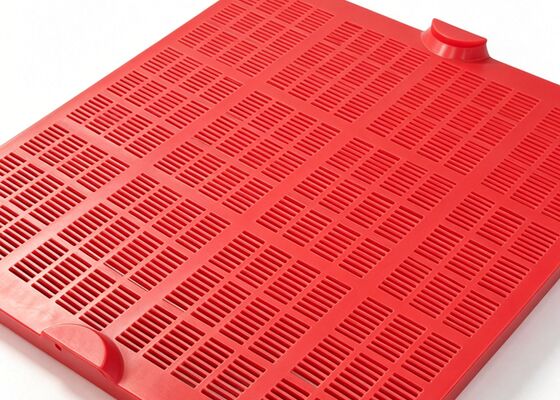

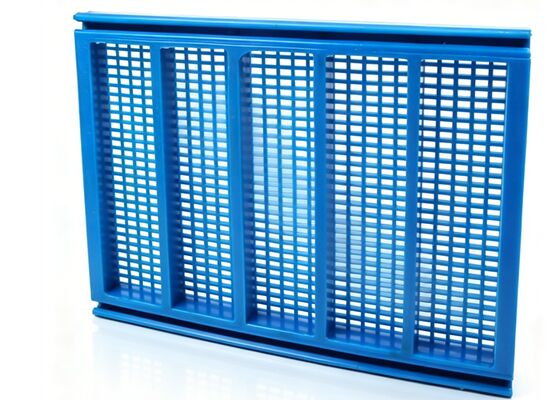

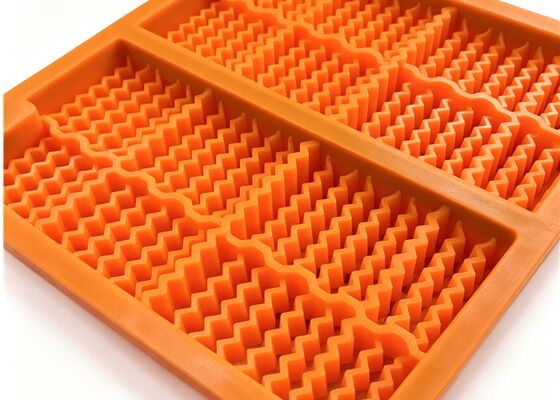

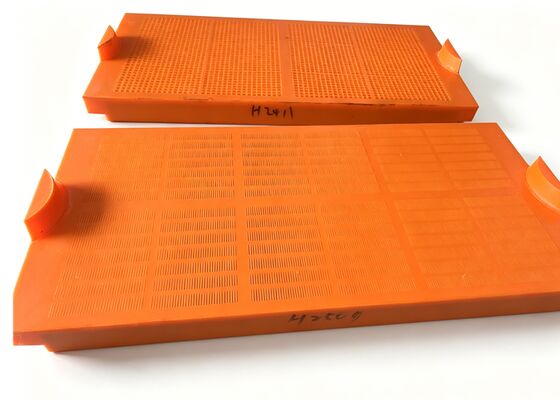

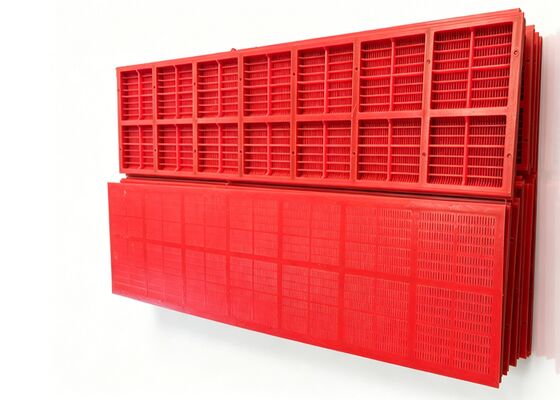

The Modular PU Screen Panel with Pin and Sleeve Fastening is a versatile and user-friendly screening solution designed specifically for the quarrying industry. This modular system utilizes a specialized pin and sleeve connection, where a heavy-duty pin is driven through the panel and into a matching sleeve on the machine frame, providing a secure and vibration-proof fit. This design allows for rapid deck replacement, as individual 305x305mm or 305x610mm panels can be swapped out in minutes without the need for specialized tools. Each panel consists of a wear-resistant polyurethane surface and an internal high-tensile embedded steel frame, which ensures the panel remains flat and rigid during the processing of heavy aggregates like granite and basalt.

Our modular panels offer 3 to 8 times the service life of traditional steel wire meshes, making them a cost-effective choice for high-volume quarries. They are available in several thicknesses (30mm, 45mm, 50mm) and can be customized with various aperture shapes, including square and slotted designs, to meet precise grading requirements. The internal steel reinforcement not only provides tensile strength but also allows the panels to carry high load-bearing capacities during secondary and tertiary screening. Furthermore, the modular nature of this system means that plant operators can replace only the high-wear zones of a screen deck, significantly reducing waste and operating costs. With its combination of ease-of-use and extreme durability, the pin-type modular system is the gold standard for reliable material classification in modern quarrying operations.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed
Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular
Cell Type	Slot,Square,Round etc.
Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!
