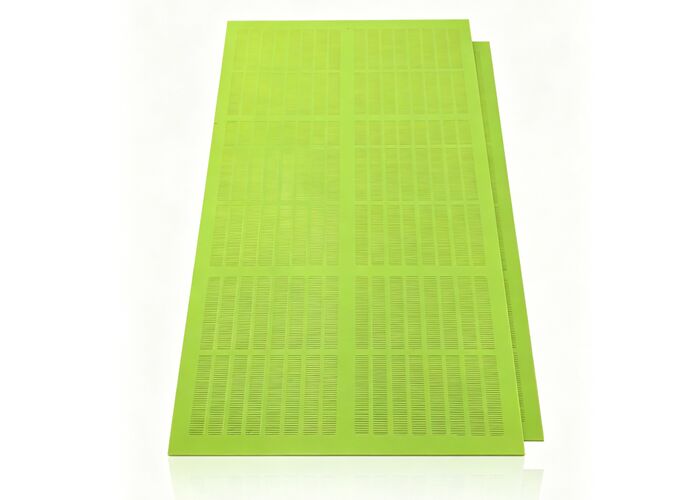

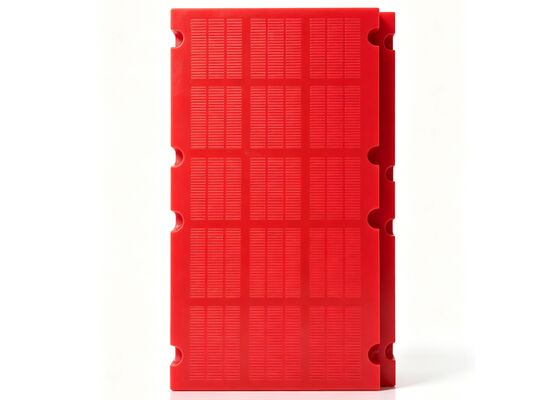

Modular Polyurethane Screen with Interlocking Fastening for Rapid Change Deck Systems

Large Image : Modular Polyurethane Screen with Interlocking Fastening for Rapid Change Deck Systems

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO9001, CE
Model Number:	PU Screen Panel
Document:	2026-Huatao Catalogue of Mi...on.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	USD 35 - 45/Piece
Packaging Details:	Standard Export Packing
Delivery Time:	5-7 Days
Payment Terms:	T/T,Western Union,L/C,D/A,D/P
Supply Ability:	10000 Pieces Per Month

Contact Now

Detailed Product Description

Material:	Polyurethane Material And Embedded Steel Frame	Aperture Size:	Min.0.053mm
Type:	Ws85,Ls Series	Thickness:	30mm,40mm,50mm
Specification:	OEM	Production Capacity:	10000PCS/Month
Highlight:	Modular polyurethane screen panels , Interlocking fastening deck screens , Rapid change polyurethane screen system

Modular Polyurethane Screen with Interlocking Fastening for Rapid Change Deck Systems

Product Overview

The Modular Polyurethane Screen with Interlocking Fastening is a cutting-edge solution designed to revolutionize the maintenance and operation of rapid change deck systems in the mineral processing industry. Efficiency in a processing plant is often measured by its uptime, and this modular system is specifically engineered to minimize the labor and time required for screen replacements. Each panel is manufactured from specially formulated polyurethane and features a unique interlocking edge that ensures a seamless, leak-proof fit between adjacent modules. This design eliminates the need for complex bolting or pinning, allowing operators to "snap" panels into place with precision. To ensure these panels can withstand the heavy G-forces of modern vibrating screens, they are reinforced with an internal high-tensile embedded steel frame, providing the necessary structural rigidity to prevent warping or displacement during high-capacity operations.

From a performance perspective, the wear resistance of our polyurethane elastomer is world-class, offering a service life that is 3–8 times longer than traditional metal meshes. This longevity is vital for operations handling abrasive aggregates or ores. We offer these modular panels in various thickness choices, including 30mm, 45mm, and 50mm, which allows plant managers to select the appropriate thickness based on the specific impact and load requirements of their processing line. The apertures are equally customizable, with slot openings ranging from 0.1mm to 2.5mm in width and 4mm to 16mm in length. This precision allows for highly accurate dewatering and classification of sand and gravel. Available in standard modular widths such as 305mm and 500mm, these panels fit most global equipment brands, ensuring a fast setup and consistent screening performance that significantly reduces the total cost of ownership.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing

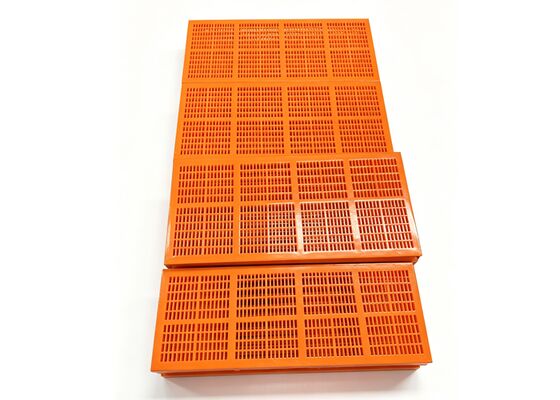

Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed

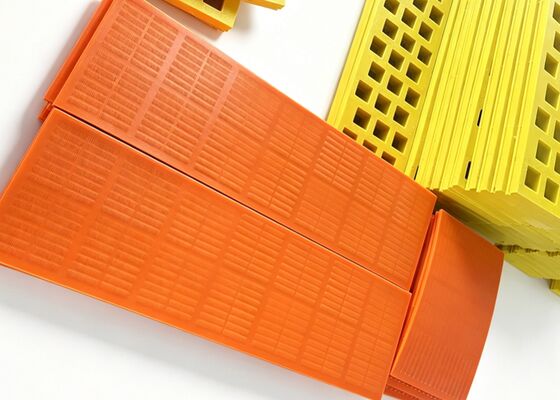

Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular

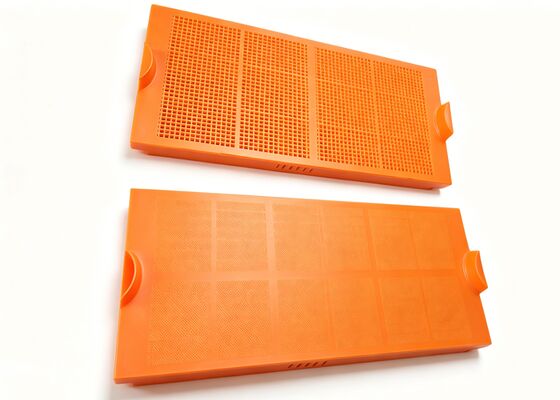

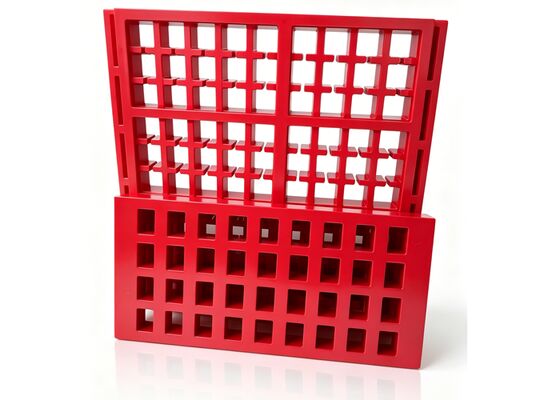

Cell Type	Slot,Square,Round etc.
Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
