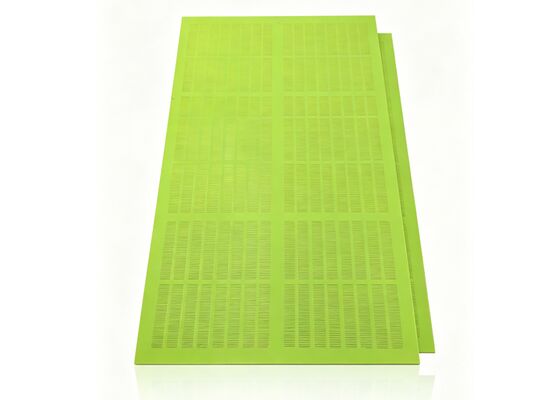

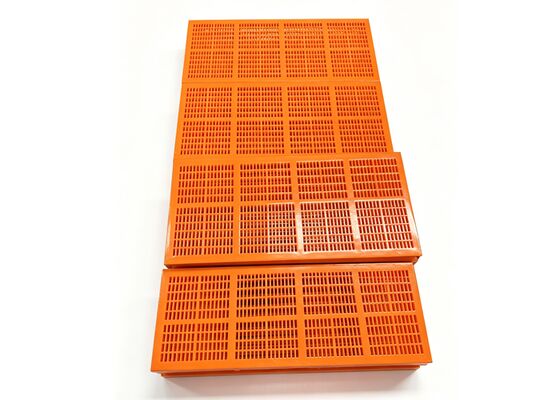

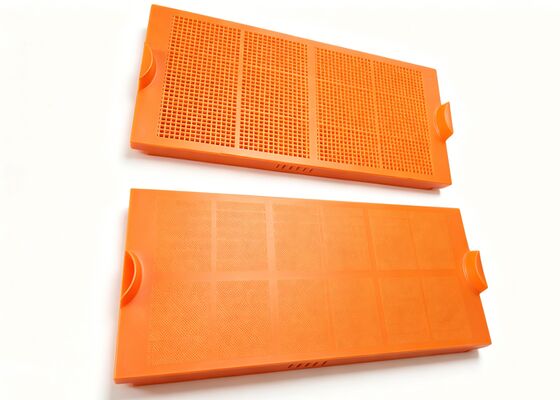

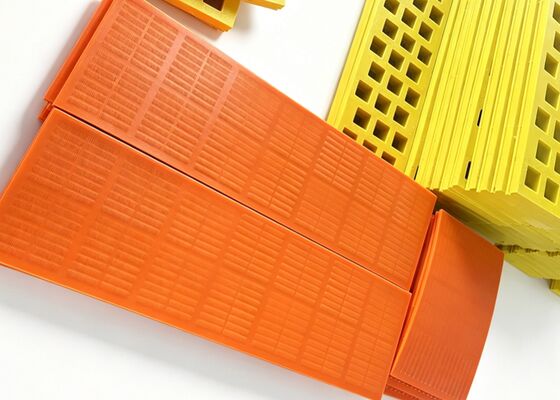

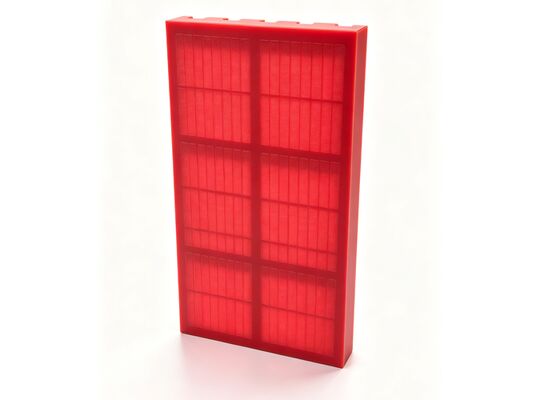

Polyurethane Coated Steel Wire Screen Plate for Reliable Heavy Duty Sizing

Large Image : Polyurethane Coated Steel Wire Screen Plate for Reliable Heavy Duty Sizing

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO9001, CE
Model Number:	PU Screen Panel
Document:	2026-Huatao Catalogue of Mi...on.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	USD 35 - 45/Piece
Packaging Details:	Standard Export Packing
Delivery Time:	5-7 Days
Payment Terms:	T/T,Western Union,L/C,D/A,D/P
Supply Ability:	10000 Pieces Per Month

Contact Now

Detailed Product Description

Material:	Polyurethane Material And Embedded Steel Frame	Aperture Size:	Min.0.053mm
Type:	Ws85,Ls Series	Thickness:	30mm,40mm,50mm
Specification:	OEM	Production Capacity:	10000PCS/Month
Highlight:	polyurethane coated steel wire screen , heavy duty sizing screen plate , durable polyurethane screen panels

Polyurethane Coated Steel Wire Screen Plate for Reliable Heavy Duty Sizing

Product Overview

The Polyurethane Coated Steel Wire Screen Plate is a hybrid screening solution designed to combine the extreme tensile strength of steel with the legendary wear resistance of polyurethane. This product is specifically engineered for reliable heavy-duty sizing in primary and secondary screening stages where the impact and weight of the material would be too great for unreinforced polymers. At its core, the plate features a high-tensile strength steel frame or wire mesh, which is then encapsulated in a layer of specially formulated polyurethane. This coating protects the steel from the abrasive and corrosive effects of the ore slurry, while the steel provides the rigidity needed to maintain a perfectly flat screening surface.

In the mining and quarrying sectors, this composite structure offers a service life 3 to 8 times longer than traditional bare steel wire mesh, drastically reducing the frequency of maintenance shutdowns. The polyurethane surface is also naturally quieter than metal, which helps in reducing the overall noise pollution of the processing plant. We offer these plates in substantial thicknesses, such as 45mm or 50mm, to accommodate the heaviest loads. The apertures can be customized to meet specific industrial needs, including slot widths from 0.1mm to 2.5mm for precision dewatering. These plates are available in standard widths of 305mm, 500mm, and 515mm, and can be manufactured in lengths up to 1220mm to fit a variety of vibrating screen machines. By choosing this reinforced solution, operators get the best of both worlds: the unbreakable support of steel and the long-lasting, anti-clogging performance of polyurethane.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed
Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular
Cell Type	Slot,Square,Round etc.
Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
