Polyurethane Screen Mesh with Tapered Holes for Anti-Plugging Performance Mining

Large Image : Polyurethane Screen Mesh with Tapered Holes for Anti-Plugging Performance Mining

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO9001, CE
Model Number:	PU Screen Panel
Document:	2026-Huatao Catalogue of Mi...on.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	USD 35 - 45/Piece
Packaging Details:	Standard Export Packing
Delivery Time:	5-7 Days
Payment Terms:	T/T,Western Union,L/C,D/A,D/P
Supply Ability:	10000 Pieces Per Month

Contact Now

Detailed Product Description

Material:	Polyurethane Material And Embedded Steel Frame	Aperture Size:	Min.0.053mm
Type:	Ws85,Ls Series	Thickness:	30mm,40mm,50mm
Specification:	OEM	Production Capacity:	10000PCS/Month
Highlight:	Polyurethane screen mesh anti-plugging , Tapered hole mining screen panels , Durable polyurethane screen mesh mining

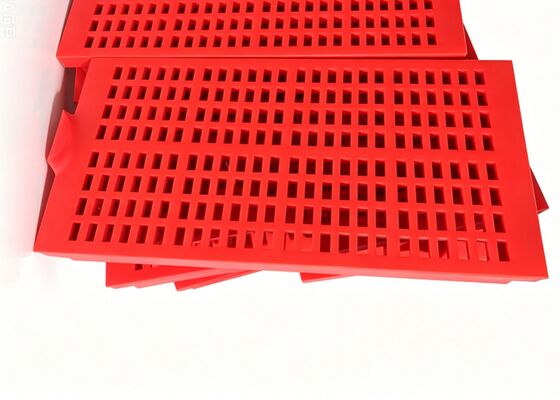

Polyurethane Screen Mesh with Tapered Holes for Anti-Plugging Performance Mining

Product Overview

The Polyurethane Screen Mesh with Tapered Holes is a specialized engineering solution designed to eliminate the common mining problem of screen blinding and plugging. In many mineral processing tasks, near-sized particles often get stuck in the apertures, reducing the effective screening area and causing the machine to bypass valuable material. Our solution is to mold the specially formulated polyurethane with tapered holes (wider at the bottom than at the top). This geometry ensures that any particle that can enter the aperture will easily pass through, significantly improving anti-plugging performance and maintaining a high throughput throughout the shift.

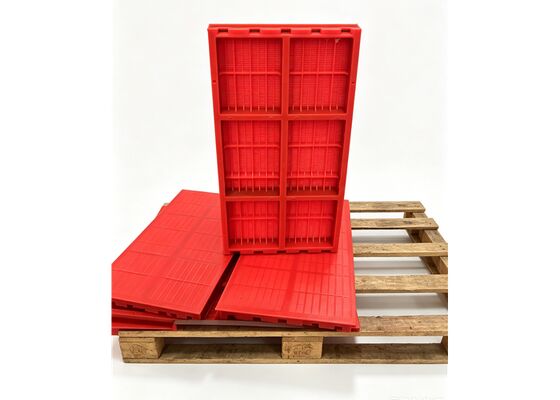

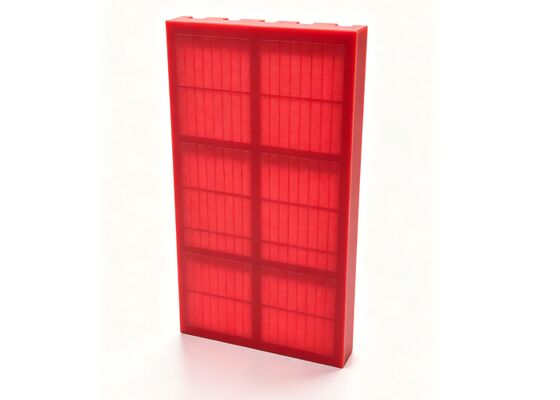

Beyond its clever geometry, this screen mesh is built for extreme durability in mining environments. It features a high-tensile strength steel frame embedded within the elastomer to provide the necessary support for high-load screening. The material's natural wear resistance provides a service life 3 to 8 times greater than steel screens, which is critical for maintaining consistent aperture shapes over time. These meshes are available in thicknesses of 30mm, 45mm, and 50mm, allowing for customization based on the severity of the abrasion. Standard sizes like 305mm and 515mm widths make them a "drop-in" replacement for most industrial vibrating machines. By implementing tapered-hole polyurethane mesh, mine operators can maximize their recovery rates and minimize the manual labor required to clear "blinded" screen decks, leading to a more efficient and profitable operation.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed

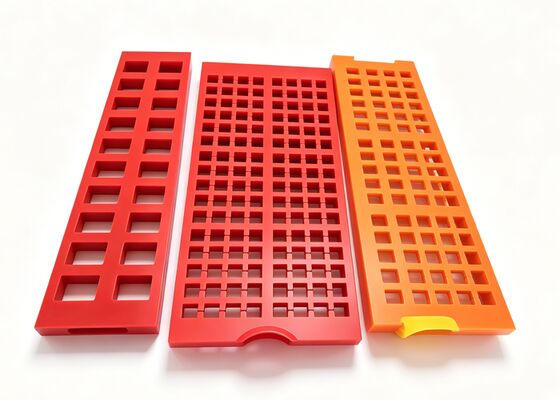

Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular

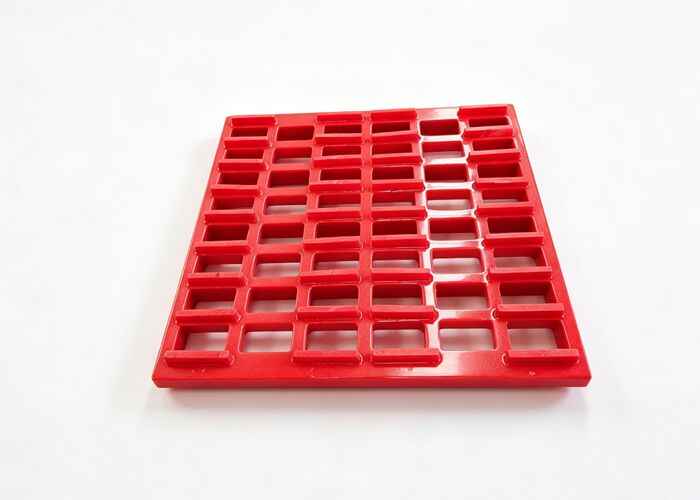

Cell Type	Slot,Square,Round etc.

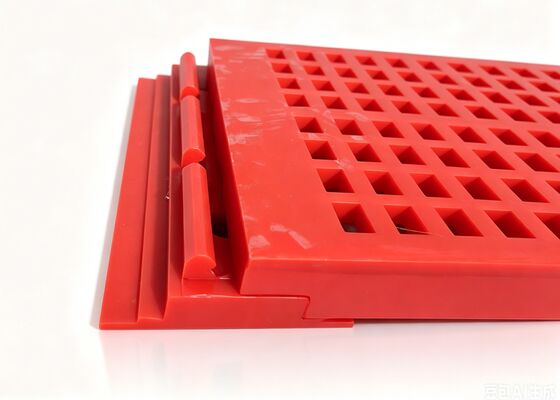

Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
