Polyurethane Dewatering Screen Mesh High Efficiency Sieve Plate for Sand Recovery

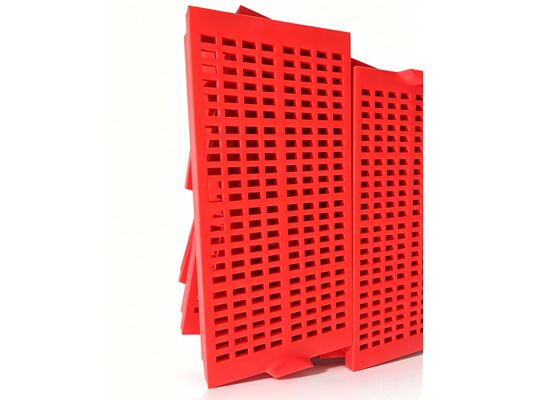

Large Image : Polyurethane Dewatering Screen Mesh High Efficiency Sieve Plate for Sand Recovery

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO9001, CE
Model Number:	PU Screen Panel
Document:	2026-Huatao Catalogue of Mi...on.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	USD 35 - 45/Piece
Packaging Details:	Standard Export Packing
Delivery Time:	5-7 Days
Payment Terms:	T/T,Western Union,L/C,D/A,D/P
Supply Ability:	10000 Pieces Per Month

Contact Now

Detailed Product Description

Material:	Polyurethane Material And Embedded Steel Frame	Aperture Size:	Min.0.053mm
Type:	Ws85,Ls Series	Thickness:	30mm,40mm,50mm
Specification:	OEM	Production Capacity:	10000PCS/Month
Highlight:	Polyurethane dewatering screen mesh , High efficiency sieve plate , Sand recovery screen panel

Polyurethane Dewatering Screen Mesh High Efficiency Sieve Plate for Sand Recovery

Product Overview

The Polyurethane Dewatering Screen Mesh High Efficiency Sieve Plate for Sand Recovery is specifically engineered to meet the high-capacity water removal needs of the construction and aggregate industries. Sand recovery is a critical stage in washing plants, where the goal is to extract every possible grain of sand from the slurry while ensuring the final product has the lowest possible moisture content. Our dewatering panels feature a high-drainage capacity design, utilizing a specially formulated polyurethane that is naturally hydrophobic. This material allows water to pass through rapidly while fine sand particles are retained on the surface. To handle the immense weight of wet sand and water, each plate is integrated with a high tensile strength steel frame, preventing any sagging or deformation during the dewatering cycle.

Performance-wise, these sieve plates are a massive upgrade over metal alternatives. They offer a wear resistance that is 3 to 8 times higher, which is essential when processing sharp, abrasive silica sand. The panels are available in standard thicknesses of 30mm, 45mm, and 50mm, with slot openings (0.1–2.5mm width; 4–16mm length) designed to maximize throughput without allowing valuable fines to escape. Standard sizes such as 305mm, 500mm, and 515mm widths ensure a perfect fit for linear vibrating dewatering screens. The reinforced ribs on the panel surface not only provide extra durability but also act as material guides, ensuring a uniform flow across the deck. By implementing these high-efficiency polyurethane plates, sand producers can enjoy drier final products, lower maintenance costs, and a much quieter operation compared to traditional steel-mesh dewatering systems.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed
Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular
Cell Type	Slot,Square,Round etc.
Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
