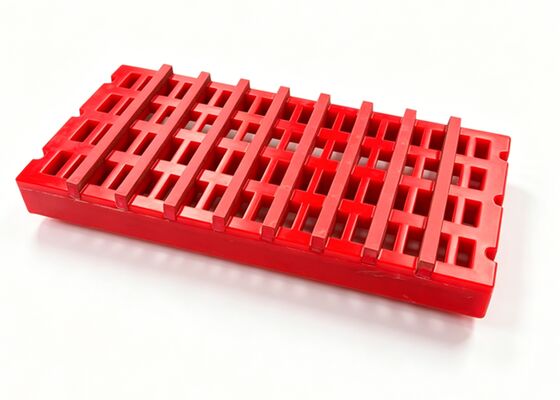

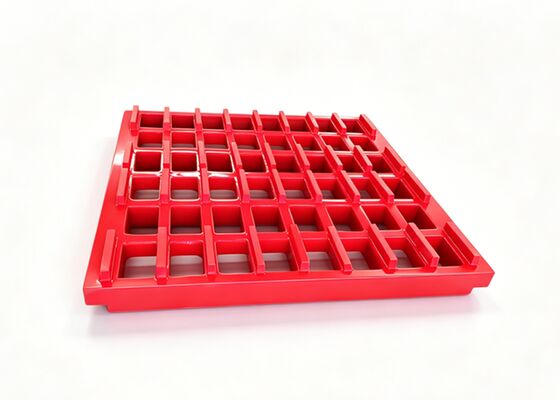

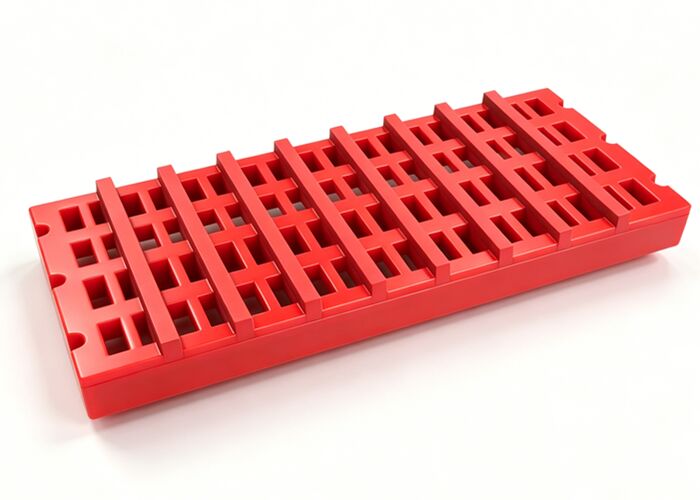

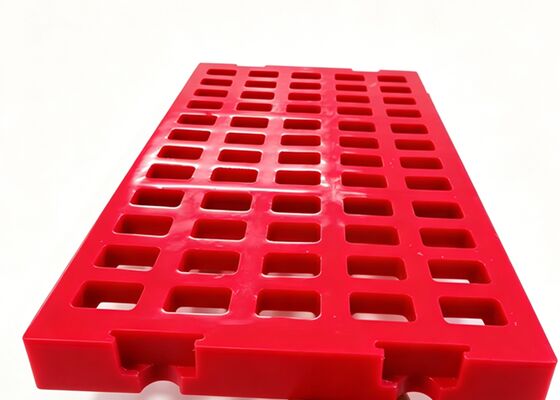

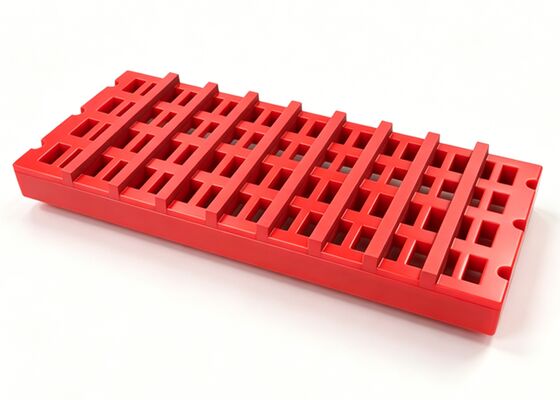

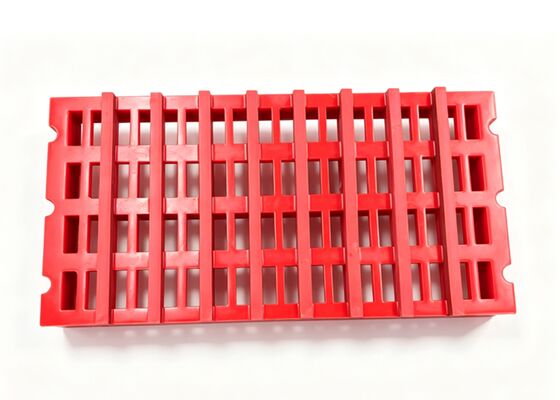

Heavy Duty Polyurethane Screen Panels for Vibrating Screen Machine Sizing Operations

Large Image : Heavy Duty Polyurethane Screen Panels for Vibrating Screen Machine Sizing Operations

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO9001, CE
Model Number:	PU Screen Panel
Document:	2026-Huatao Catalogue of Mi...on.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	USD 35 - 45/Piece
Packaging Details:	Standard Export Packing
Delivery Time:	5-7 Days
Payment Terms:	T/T,Western Union,L/C,D/A,D/P
Supply Ability:	10000 Pieces Per Month

Contact Now

Detailed Product Description

Material:	Polyurethane Material And Embedded Steel Frame	Aperture Size:	Min.0.053mm
Type:	Ws85,Ls Series	Thickness:	30mm,40mm,50mm
Specification:	OEM	Production Capacity:	10000PCS/Month
Highlight:	heavy duty polyurethane screen panels , vibrating screen machine panels , polyurethane sizing screen panels

Heavy Duty Polyurethane Screen Panels for Vibrating Screen Machine Sizing Operations

Product Overview

The Heavy Duty Polyurethane Screen Panels are the industrial workhorses for vibrating screen machine sizing operations in large-scale quarries and mines. When handling thousands of tons of rock and ore daily, the screen media is subjected to immense G-forces and heavy impact. These panels are specifically designed for such "Heavy Duty" environments, featuring a specially formulated polyurethane surface that is bonded to an extra-thick high-tensile strength steel frame. This internal reinforcement acts as a structural skeleton, allowing the panel to support massive material beds without bending or breaking, ensuring that the sizing process remains consistent from start to finish.

Performance data proves that our heavy-duty panels provide a wear resistance that is 3–8 times better than traditional manganese steel or heavy wire mesh. This is largely due to the "energy-absorbing" nature of polyurethane, which deflects impact energy that would otherwise cause metal fatigue. We offer these panels in the most durable thicknesses of 45mm and 50mm, which provide a substantial wear zone for processing abrasive materials like iron ore or granite. The apertures can be customized with tapered square holes or slots to prevent material from getting wedged in the openings (anti-plugging). These panels are designed for standard industrial widths like 305mm, 500mm, and 515mm, and can reach lengths of 1220mm to fit various deck layouts. By choosing our heavy-duty polyurethane panels, operators can maximize their throughput and drastically reduce the downtime and safety risks associated with the frequent replacement of heavy metal screening decks.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed
Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular
Cell Type	Slot,Square,Round etc.
Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
