Flexible Polyurethane Sieve Plate for Efficient Vibrating Screening of Fine Ores

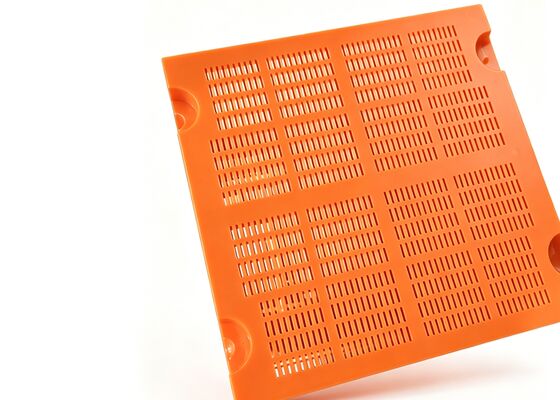

Large Image : Flexible Polyurethane Sieve Plate for Efficient Vibrating Screening of Fine Ores

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO9001, CE
Model Number:	PU Screen Panel
Document:	2026-Huatao Catalogue of Mi...on.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	USD 35 - 45/Piece
Packaging Details:	Standard Export Packing
Delivery Time:	5-7 Days
Payment Terms:	T/T,Western Union,L/C,D/A,D/P
Supply Ability:	10000 Pieces Per Month

Contact Now

Detailed Product Description

Material:	Polyurethane Material And Embedded Steel Frame	Aperture Size:	Min.0.053mm
Type:	Ws85,Ls Series	Thickness:	30mm,40mm,50mm
Specification:	OEM	Production Capacity:	10000PCS/Month
Highlight:	flexible polyurethane sieve plate , vibrating screen fine ores , polyurethane screen panels with warranty

Flexible Polyurethane Sieve Plate for Efficient Vibrating Screening of Fine Ores

Product Overview

The Flexible Polyurethane Sieve Plate is a high-performance screening medium designed for the efficient vibrating screening of fine ores, such as gold, silver, and copper fines. Fine ore screening is technically challenging because the particles often cause "blinding" or "pegging" on rigid surfaces. Our sieve plates solve this by using a highly elastic MDI polyurethane formula that provides a degree of flexibility. This flexibility, combined with the vibration of the machine, creates a self-cleaning effect that keeps the apertures open. To ensure the plate remains securely attached to the machine, it is integrated with a high tensile embedded steel frame, which provides the necessary structural support without sacrificing the elasticity of the screening surface.

The performance of these flexible plates is exceptional, offering a wear resistance that is 3–8 times better than stainless steel fine-mesh screens. The precision-engineered slots, ranging from 0.1mm to 2.5mm in width, allow for ultra-fine classification and high-recovery rates. These plates are available in thicknesses of 30mm and 45mm, providing a long-lasting wear layer for abrasive mineral slurries. They are compatible with multi-deck linear and high-frequency vibrating sifters, with standard sizes available to fit most global mining equipment. By utilizing our flexible polyurethane sieve plates, mining operations can achieve a sharper separation of valuable minerals, resulting in higher concentrate quality and a more efficient overall mineral recovery process.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed
Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular
Cell Type	Slot,Square,Round etc.
Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
