High Calorific Biomass Briquette Maker 5000 kcal/kg Output

High Calorific Biomass Briquette Maker 5000 kcal/kg Output

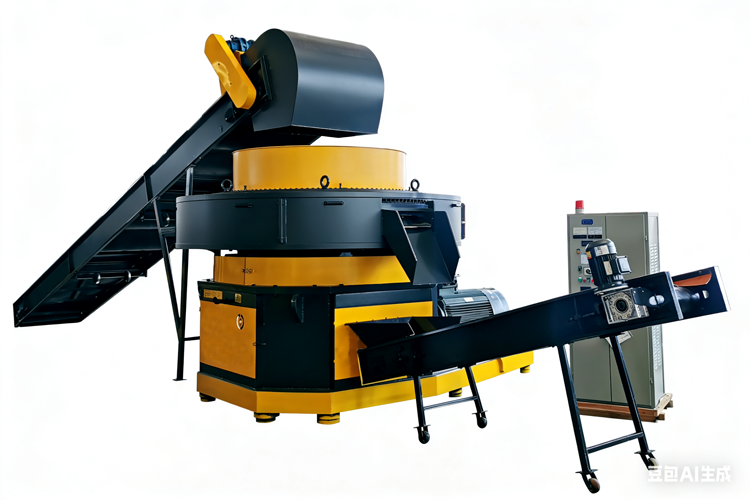

The HT-2600A Hydraulic Briquette Maker is perfect for gasification power plants. It produces uniform feed material with consistent density of 1.1-1.3 g/cm³. Briquette diameter options are 50mm 70mm or 80mm. The hydraulic system runs 24/7 thanks to the automatic oil cooler. Temperature stays below 60°C. No binder is required because the 25 ton pressure naturally binds lignin. Energy consumption is 50% less than screw type machines at only 22 kWh per ton. Contact us for FOB or CIF pricing.

The 2600A Hydraulic Biomass Briquette Machine converts agricultural and forestry waste into high-density solid biofuel briquettes. Unlike pellet machines that produce small pellets, this briquette press creates larger cylindrical logs (50-80mm diameter) ideal for industrial boilers, gasifiers, and heating stoves. The hydraulic system delivers consistent pressure without overheating, enabling 24/7 operation.

• Industrial Boiler Fuel: Replace coal with biomass briquettes in factories reducing carbon emissions by up to 80%
• Gasification Power Plants: Produce uniform feed material for biomass gasifiers
• Commercial Heating: Supply hotels schools and hospitals with cost-effective solid fuel
• Waste Management: Convert sawdust rice husks peanut shells coffee grounds and bagasse into valuable fuel
• Export Market: Produce export-quality briquettes for European and Asian buyers

• Hydraulic Pressing System: Provides 25 tons of pressing force without mechanical wear issues common in screw presses
• No Binder Required: The high pressure (25 tons) naturally binds lignin in biomass eliminating chemical additives
• Low Energy Consumption: Only 22 kWh per ton of briquettes (50% less than screw type briquette machines)
• Wear-Resistant Components: Hydraulic cylinder with hardened chrome-plated piston rod lasting 8000+ hours
• Automatic Cooling System: Oil cooler maintains hydraulic fluid temperature below 60°C for continuous operation
• Dense Briquette Output: Final briquette density reaches 1.1-1.3 g/cm³ with calorific value of 4500-5000 kcal/kg

• Hydraulic briquette machine main unit *1
• Briquette die (size of your choice) *1
• Spare piston seals kit *1
• Hydraulic oil (pre-filled) *1 batch
• Operation manual (English) *1
• Tool kit for maintenance *1
• 18-month warranty card *1

• Payback period: Typically 6-9 months for users processing 3 tons per day
• Briquette durability: Survives 2-meter drop test without breakage
• Moisture tolerance: Works consistently with 8%-12% moisture range
• Export ready: CE certified with wooden crate packaging for sea freight

To receive a customized quote including shipping to your port please provide:

• Raw material type (e.g. rice husks sawdust coffee grounds)
• Daily production target (tons per day)
• Local voltage and frequency (e.g. 415V/50Hz 220V/60Hz)
• Desired briquette diameter (50mm 70mm or 80mm)
• Delivery port (e.g. CIF Hamburg FOB Shanghai)

• Exact price (FOB/CIF/CNF)
• Recommended model based on your material
• Optional equipment (hammer mill dryer cooler)
• Sea freight cost and estimated arrival time
• Video of machine testing your material (available on request)
