Product Description
Jaw crusher jaw plates are essential wear components used in primary crushing circuits where hard rock processing requires high impact resistance and stable mechanical performance. Manufactured from premium manganese steel materials, these jaw plates absorb severe impact loads while resisting continuous abrasion during crushing operations. Their optimized tooth pattern improves material gripping force and increases crushing efficiency while lowering energy consumption and vibration. Suitable for granite, basalt, iron ore, and copper ore processing, these crusher wear plates are available in customized sizes and mounting configurations. Precision casting and advanced heat treatment ensure consistent hardness and long operational lifetime.
Description of Mining Crushing Wear Parts
In crushing systems for mining, quarrying, aggregate making, recycling, and construction, crusher wear parts are critical consumable components. They directly determine crushing efficiency, output morphology, machine reliability, and total expense. HUATAO GROUP offers a full range of premium wear parts including jaw crusher jaw plates, impact crusher blow bars, and cone crusher mantle & concave. Crafted from high manganese steel, high chrome iron, alloy steel, and blends, our parts provide high abrasion resistance, impact toughness, and long service life under demanding working environments.
Crusher Type
Crushers are essential equipment in mineral processing plants, designed to reduce large rocks into smaller particles. Different types of crushers are used in various crushing stages, each with its own set of wear parts that require regular replacement. Below is an overview of common crusher types and their key consumable parts:
| Type |
Main Application |
Key Consumable Parts |
Function of Consumable |
| Jaw Crusher |
Primary crushing |
Jaw Plate |
Crushes rock by compressing it between two plates. Wears out regularly due to high abrasion. |

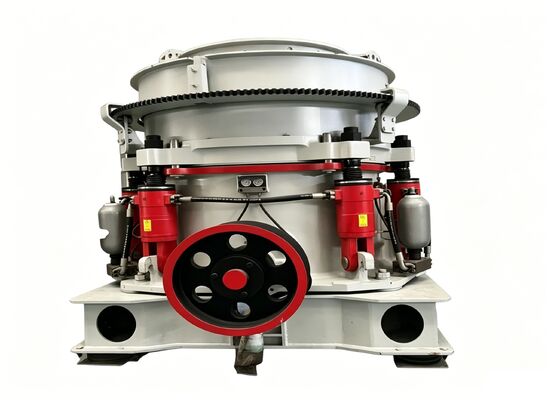

| Cone Crusher |
Secondary crushing |
Mantle & Concave |
Mantle gyrates inside concave to crush materials. Both parts wear significantly. |
| Impact Crusher |
Tertiary crushing |
Blow Bar |
Rotates at high speed to impact and break materials. Highly susceptible to |
Product 1: Jaw Plate
1.1 Applicable Crusher Type: Jaw Crusher
1.2 Definition and Application:
The Jaw Plate is the primary wear component in a Jaw Crusher that comes into direct contact with materials. It consists of fixed and movable plates mounted on the jaw frame, used to crush hard materials such as rocks and ores through compressive force.
1.3 Advantages:
- High wear resistance, extending replacement cycles
- Optimized tooth profile design improves crushing efficiency
- Reduces equipment vibration and noise
- Lowers energy consumption and increases production output
1.4 Common Materials:
- High Manganese Steel (Mn13, Mn18Cr2)
- Medium Manganese Steel
- Alloy Steel
- Composite Materials (e.g., high-chrome iron inserts)
1.5 Key Parameters and Specifications:
|
Thickness
|
50‑250mm
|
|
Length
|
300‑2500mm
|
|
Tooth Height
|
20‑100mm
|
|
Mounting Hole Spacing
|
Customized per machine model
|
|
Hardness
|
200‑400 HB
|
|
Tensile Strength
|
≥850 MPa
|
Product 2: Mantle & Concave
2.1 Applicable Crusher Type: Cone Crusher
2.2 Definition and Application:

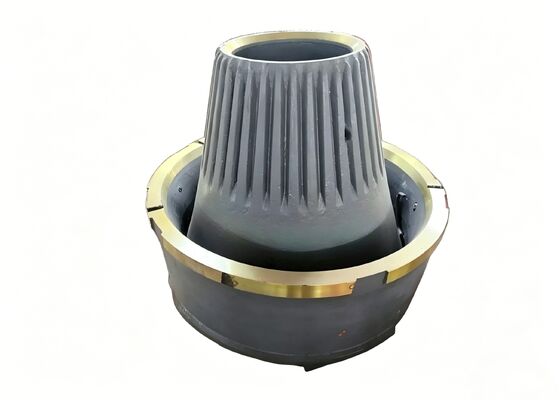

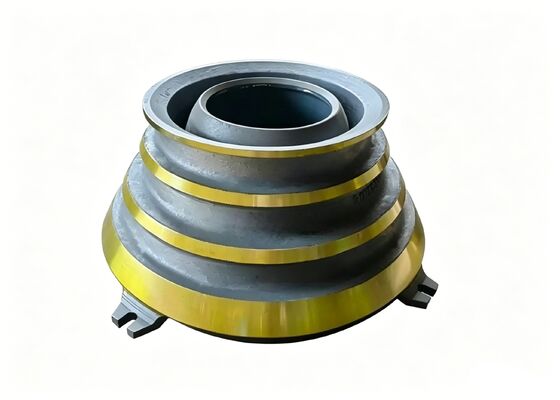

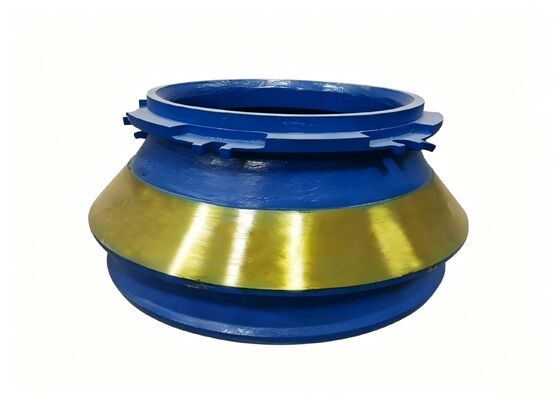

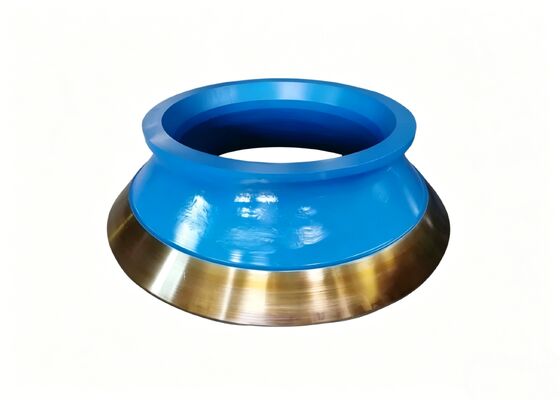

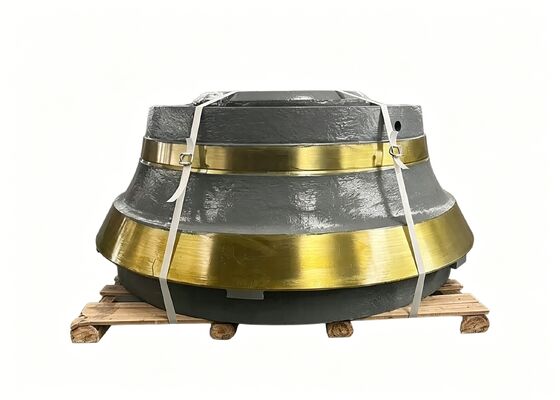

The Mantle and Concave are the core wear components of a Cone Crusher. The Mantle is mounted on the top of the main shaft and performs an eccentric gyrating motion. Together with the fixed Concave, they form the crushing chamber to achieve multi-layer compressive crushing of materials.
2.3 Advantages:
- Precision casting ensures stable crushing chamber shape
- Even wear distribution extends service life
- Improves particle shape quality, reducing needle/flake particles
- Suitable for medium to high hardness materials in secondary/tertiary crushing
2.4 Common Materials:
- High Manganese Steel (Mn18Cr2, Mn22Cr2)
- Ultra-High Manganese Steel
- Alloy Steel (containing Mo, Ni, etc.)
2.5 Key Parameters and Specifications:
|
Component
|
Outer Diameter Range
|
Height Range
|
Weight Range
|
Hardness
|
|
Mantle
|
300 2000mm
|
200 800mm
|
50 5000kg
|
220 380 HB
|
|
Concave
|
500 2500mm
|
300 1000mm
|
100 8000kg
|
220 380 HB
|
Product 3: Blow Bar
3.1 Applicable Crusher Type: Impact Crusher
3.2 Definition and Application:
The Blow Bar is a key impact component mounted on the rotor of an Impact Crusher. It crushes materials through high-speed rotational impact, suitable for medium to low hardness materials such as limestone, concrete, and construction waste.
3.3 Advantages:
- High impact toughness, strong fracture resistance
- Large reduction ratio, uniform product size
- Easy to replace, low maintenance cost
- Suitable for both crushing and shaping processes
3.4 Common Materials:
- High Chrome Iron (Cr15‑Cr26)
- Alloy Steel
- Composite Ceramic-Insert Blow Bars
- High Manganese Steel (for high impact conditions)
3.5 Key Parameters and Specifications:
|
Length
|
200‑1800mm
|
|
Width
|
100‑400mm
|
|
Thickness
|
50‑200mm
|
|
Weight
|
5‑200kg
|
|
Hardness
|
50‑62 HRC (high-chrome material)
|
|
Impact toughness
|
≥10 J/cm²
|
Featured Products & Related Accessories
In addition to the above consumables, we also supply a complete range of crusher screening and wear solutions:
A. Crusher Screens:
* Steel Crusher Screens – High tensile strength, ideal for heavy-duty screening applications.
* Rubber Screen Panels – Excellent abrasion resistance, reduces noise and plugging.
* PU Screen Panels (Polyurethane) – Superior wear life, flexibility, and resistance to blinding.
B. Why Choose Our Wear Parts?
* Material Excellence – Premium alloys and heat treatment processes.
* Precision Engineering – Custom-fit for major crusher brands
* Performance Guarantee – Consistent quality for extended uptime and lower cost per ton.
* Technical Support – Expert advice on part selection and maintenance optimization.
After Sales Service
Standard Warranty: 12 months operating hours.
Quality Warranty: Resent with free cost once any quality problem.
Global Support: 24/7 technical assistance.
HUATAO GROUP
Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies...
Why Choose Us?
- Other Products
- OEM/ODM capabilities
- Competitive pricing & bulk discounts
- Fast shipping & customs clearance support
Project design service
- Polyurethane Screen Media
- Crusher spare parts
- Mill Liner
- Screening equipment
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.
Q: Can I request a customized size and design?
A: Absolutely! We offer customized.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
