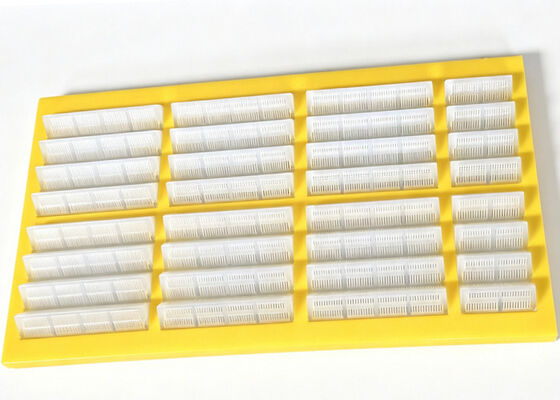

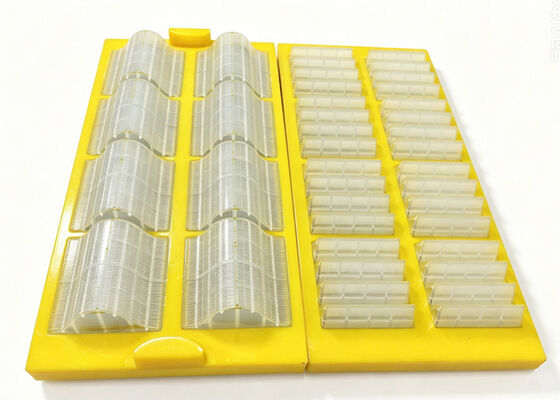

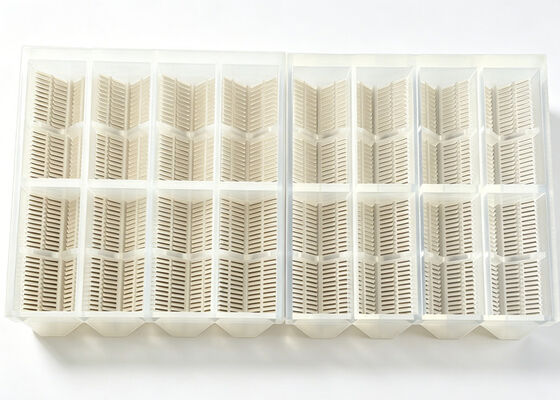

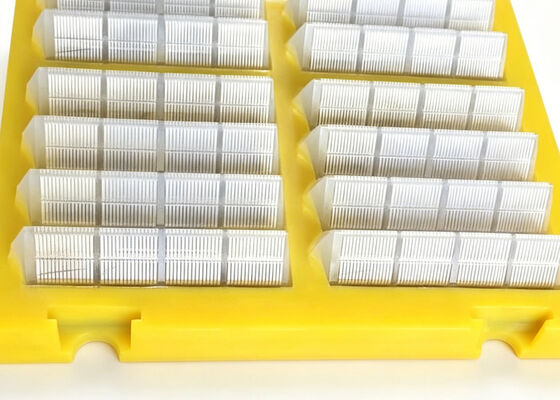

High-Efficiency Frustum Structure Polyurethane Screen Panel with 50% More Drainage Area

Product Overview

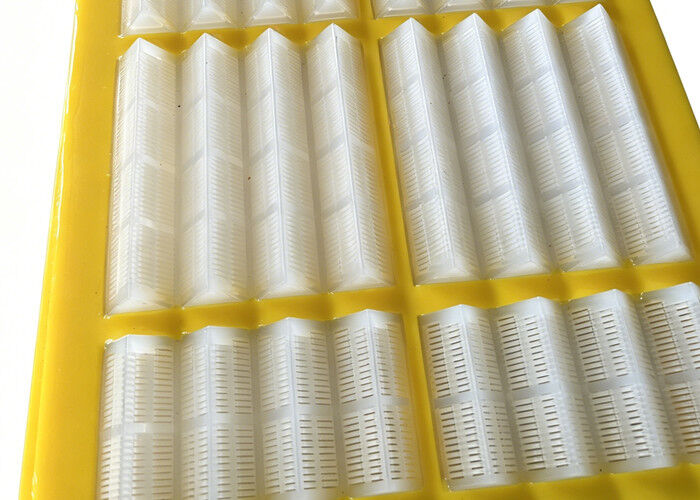

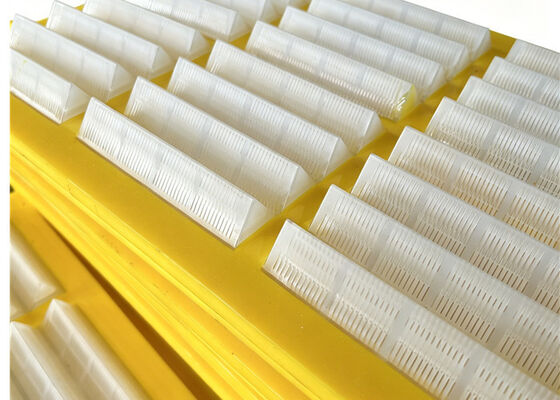

This innovative polyurethane screen panel features a unique "frustum" or tapered peak-top structure designed to revolutionize high-efficiency dewatering processes. The peak-py-ramid geometry significantly increases the exposed screening area by 50% compared to conventional flat panels, effectively doubling the dewatering capacity within the same footprint. Manufactured from high-performance polyurethane elastomer, the panel offers a Shore A hardness of 80-95 and a tensile strength exceeding 40 MPa, ensuring exceptional resistance to wear and impact. The structural integrity is further reinforced by an embedded steel framework that resists deformation under heavy deck loadings in iron ore and coal processing. Beyond increased surface exposure, the raised ridge configuration actively fractures compacted material beds during each screening stroke, allowing interstitial water to be channeled away more efficiently. This design leads to a 40% higher dehydration rate than standard plane screens, making it ideal for processing viscous and fine-grained materials. The standardized 305x610mm modular design ensures compatibility with universal mounting systems, providing a durable and stable solution for modern mineral preparation.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed
Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular
Cell Type	Slot,Square,Round etc.
Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction
