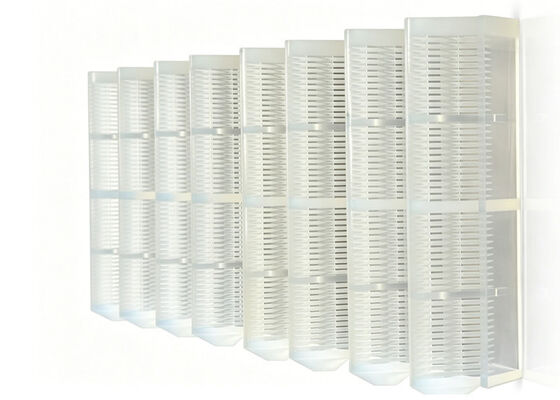

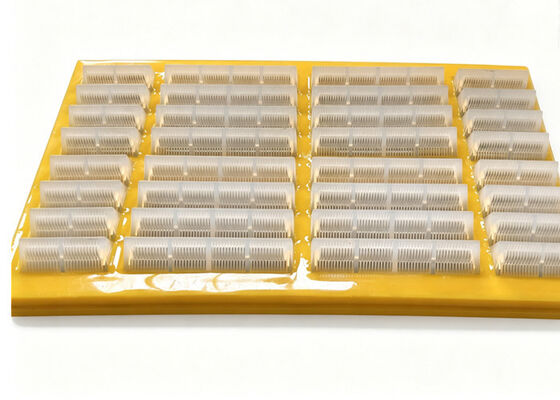

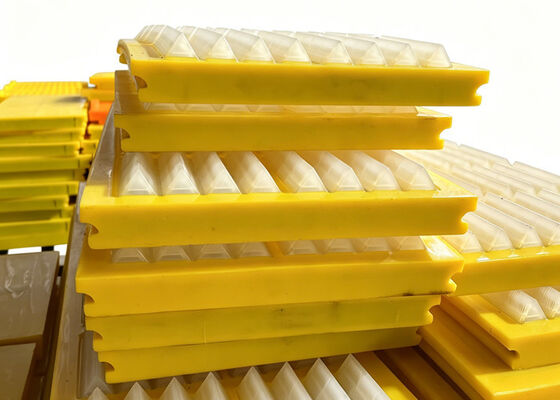

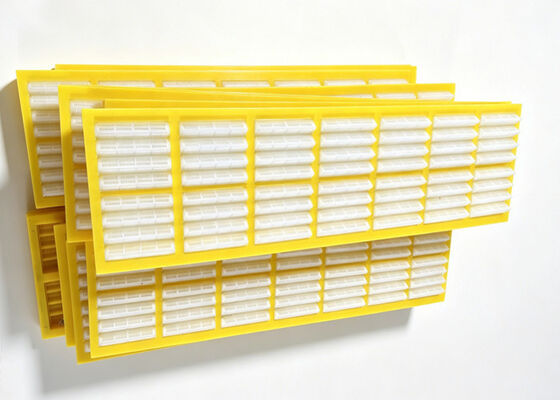

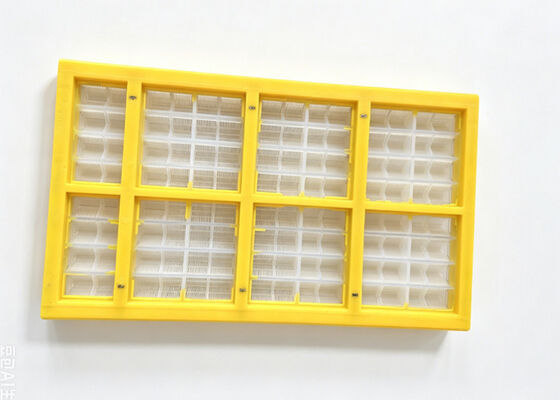

High Rebound MDI Polyurethane Fine Screen Panel for Precision Tailing Recovery Systems

Large Image : High Rebound MDI Polyurethane Fine Screen Panel for Precision Tailing Recovery Systems

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO9001, CE
Model Number:	PU Screen Panel
Document:	2026-Huatao Catalogue of Mi...on.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	USD 35 - 45/Piece
Packaging Details:	Standard Export Packing
Delivery Time:	5-7 Days
Payment Terms:	T/T,Western Union,L/C,D/A,D/P
Supply Ability:	10000 Pieces Per Month

Contact Now

Detailed Product Description

Material:	Polyurethane Material And Embedded Steel Frame	Aperture Size:	0.1mm – 130mm
Type:	Ws85,Ls Series	Thickness:	30mm,40mm,50mm
Specification:	OEM	Production Capacity:	10000PCS/Month
Screen Area Increase:	50% (Stereoscopic Ridge)	Hardness:	65 - 91 Shore A
Max Pressure Diff:	2180 KPa	Max Feed Size:	30mm
Highlight:	High rebound polyurethane screen panel , MDI fine screen panel , Precision tailing recovery screen

High Rebound MDI Polyurethane Fine Screen Panel for Precision Tailing Recovery Systems

Product Overview

This high-rebound MDI (Methylene Diphenyl Diisocyanate) polyurethane fine screen panel is a specialized solution for advanced tailing recovery and ultra-fine mineral classification. Utilizing polyether-type polyurethane, it offers a superior resilience level of ≥ 35%, ensuring that the screen surface remains active and responsive under high-frequency vibration. The panel features microscopic sieve holes as small as 0.075mm, which are precision-molded to capture valuable fine particles from waste pulp in gold, copper, and iron ore processing. The internal structural integrity is maintained by an embedded steel framework that prevents deformation and stretching, ensuring that the 15.25% to 46.51% opening rate stays constant over a service life exceeding 4,000 hours. The material's resistance to hydrolysis and chemicals makes it particularly suitable for wet screening and desliming where traditional metal screens would quickly corrode. The conical design of the slot openings further enhances performance by allowing materials to pass through easily, virtually eliminating the risk of plugging. By maximizing the recovery of saleable fine products, this panel helps mining companies achieve higher resource utilization and meet strict environmental protection standards. It is compatible with various fastening systems, including bolt-down and rail mounting, for easy integration into existing sieve machines.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed
Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular
Cell Type	Slot,Square,Round etc.
Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
