ISO Certified MDI High Rebound Flexible Polyurethane Screen for High-Frequency Applications

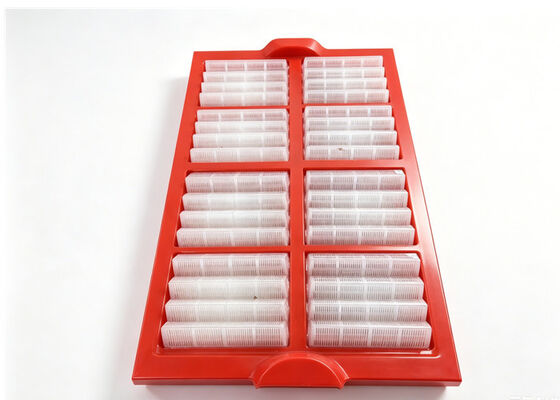

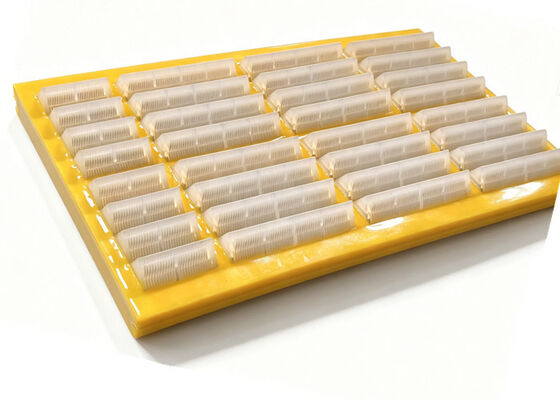

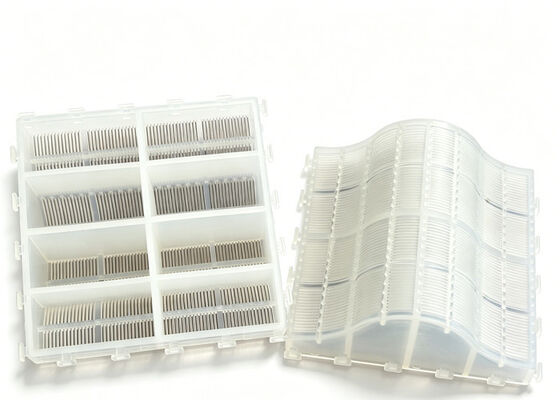

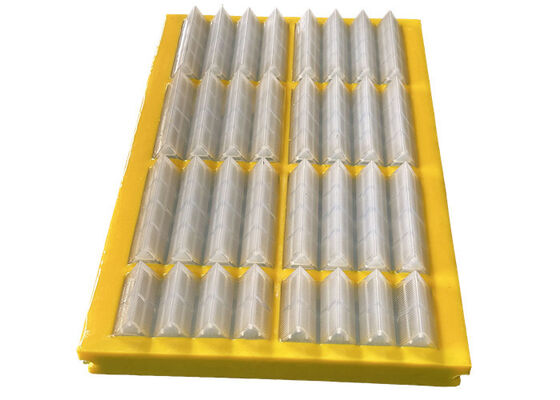

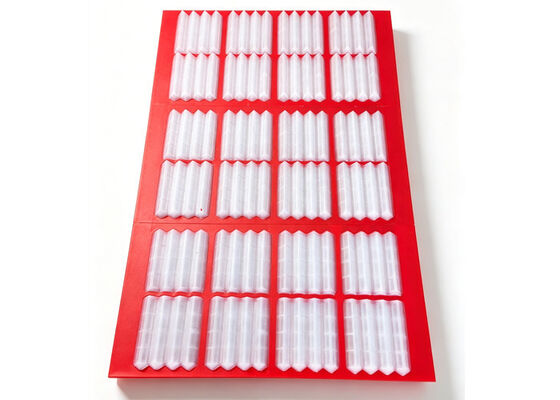

Large Image : ISO Certified MDI High Rebound Flexible Polyurethane Screen for High-Frequency Applications

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Certification:	ISO9001, CE
Model Number:	PU Screen Panel
Document:	2026-Huatao Catalogue of Mi...on.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	USD 35 - 45/Piece
Packaging Details:	Standard Export Packing
Delivery Time:	5-7 Days
Payment Terms:	T/T,Western Union,L/C,D/A,D/P
Supply Ability:	10000 Pieces Per Month

Contact Now

Detailed Product Description

Material:	Polyurethane Material And Embedded Steel Frame	Aperture Size:	0.1mm – 130mm
Type:	Ws85,Ls Series	Thickness:	30mm,40mm,50mm
Specification:	OEM	Production Capacity:	10000PCS/Month
Screen Area Increase:	50% (Stereoscopic Ridge)	Hardness:	65 - 91 Shore A
Max Pressure Diff:	2180 KPa	Max Feed Size:	30mm
Highlight:	ISO certified polyurethane screen panels , high rebound MDI polyurethane screen , flexible polyurethane screen for high-frequency

ISO Certified MDI High Rebound Flexible Polyurethane Screen for High-Frequency Applications

Product Overview

Specifically engineered for high-frequency vibrating equipment, this MDI (Methylene Diphenyl Diisocyanate) high rebound flexible polyurethane screen offers superior resilience and performance stability. The MDI-based polyether formulation provides a resilience level of ≥ 35%, ensuring that the screen surface remains active and "bouncy" under intense oscillations. This high rebound is critical for keeping materials in a fluidized state and preventing the clogging of fine apertures in tailing recovery and desliming processes. Manufactured under ISO9001 and ISO14001 quality management systems, these screens are produced through a rigorous pouring and secondary vulcanization process to ensure exact dimensional accuracy. The internal steel skeleton reinforcement prevents stretching and sagging, allowing the screen to maintain a consistent opening rate of 15.25% to 46.51%. This model is particularly effective for screening fine-grained viscous dispersing materials, offering a dehydration rate 40% higher than traditional flat metal screens. Whether used in modular or tensioned configurations, the MDI high rebound screen provides a long-lasting, noise-reducing solution for mining, coal, and electricity industries seeking high-efficient screening with minimal maintenance

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed
Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular
Cell Type	Slot,Square,Round etc.
Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
