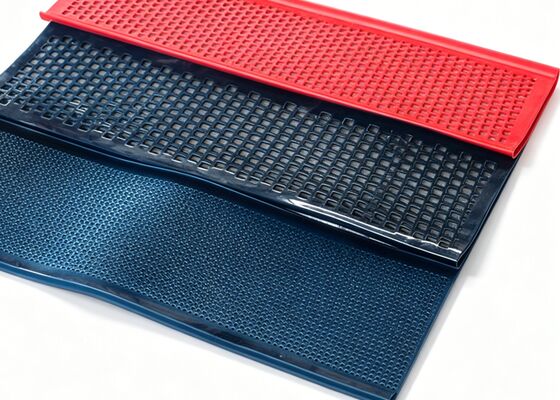

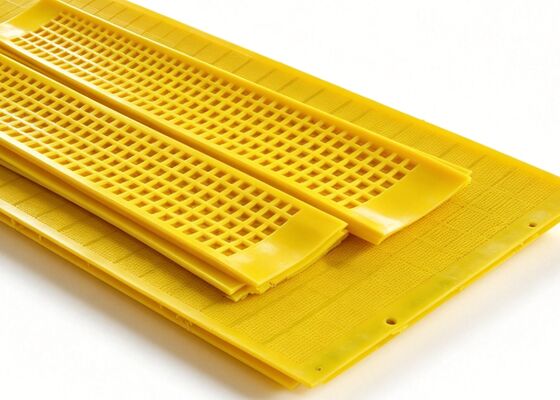

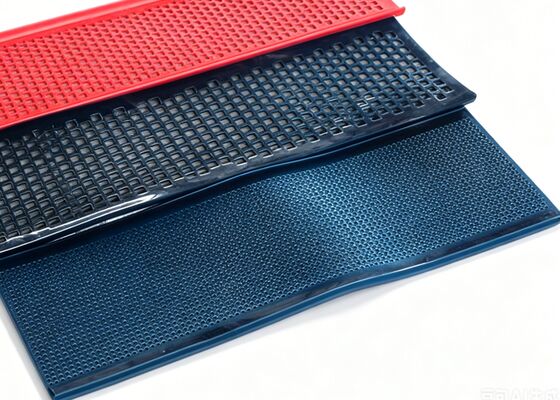

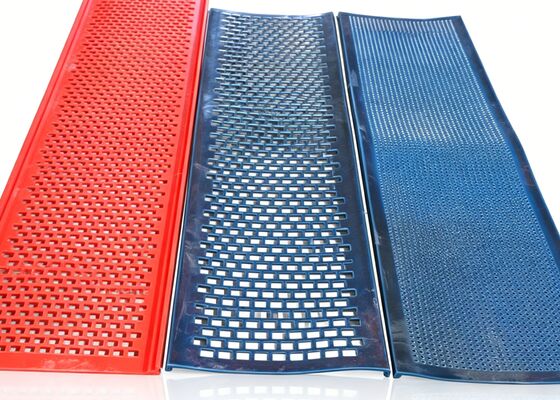

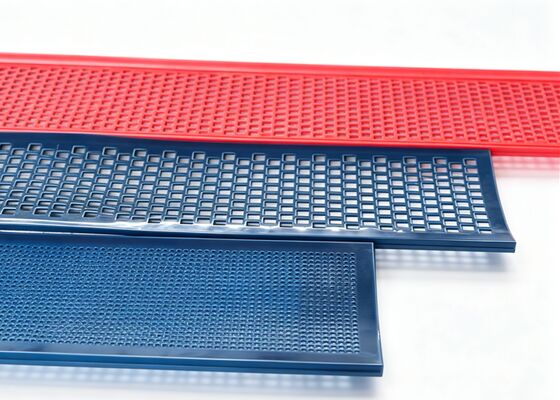

Modular PU Flip Flop Screen Panels 80 Shore A Hardness for Aggregate

These modular flip flop screen panels are engineered for versatility and ease of maintenance in aggregate processing. Available in standard sizes like 1’x1’ (305x305mm) or 2’x1’ (610x305mm), the panels feature a rigid internal steel frame within the edges to provide structural strength while maintaining the flexibility of the polyurethane screening surface. The 80 Shore A hardness rating ensures a perfect balance between impact resistance for large stones and the elasticity required for the flip-flow motion.

The modular system employs advanced fastening methods, such as double snap-on locks onto extruded steel profiles or screwless wedge systems. This allows for selective replacement of individual worn panels rather than entire decks, optimizing the full life cycle cost of the media. To further enhance performance, the panels can be molded with special surface features like skid bars, which protect the screen surface from oversized lumps, or dams that slow material flow to intensify washing and dewatering effects. In practical applications, such as sand and gravel classification, the cross-tension design distributes the load evenly across the panel, reducing stretching and deformation. These panels are capable of handling separations from 1mm to 50mm, providing up to 98% separation accuracy due to their high-frequency vibration and precise aperture molding.

• Manufactured from highly resilient polyurethane elastomer

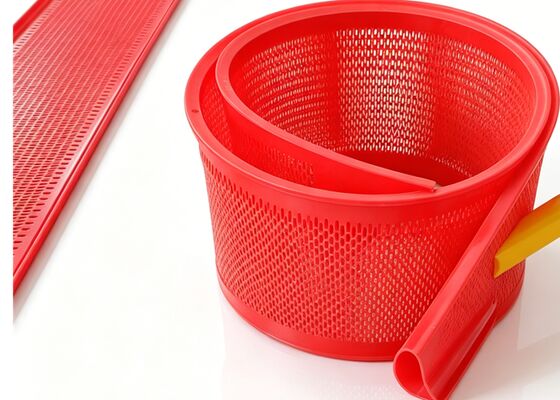

• Flip flow mats with joints maintain elasticity and dimensional accuracy
• Designed for both bolting and clamping systems
• Compatible with all screen decks worldwide regardless of machine brand
• Universal fit for various deck dimensions and installation characteristics

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

RFQ

Q: What essential material information must I provide when submitting a Flip Flow Screen RFQ?

A: To ensure accurate equipment selection and sizing, the following data is required:

1. Material Name (e.g., Coal, Iron Ore, Municipal Waste, or Compost).

2. Maximum Feed Dimension and approximate feed size analysis.

3. External Moisture Content (%) and whether the material is sticky or fibrous.

4. Bulk Density of the material.

5. Required Separation Sizes (cut points).

6. Desired Processing Capacity in tons per hour (t/h).

Q: Why is a Flip Flow Screen superior to a Linear Vibrating Screen for damp or sticky materials?

A: Standard linear screens often fail due to "blinding," where moisture creates a film that covers screen holes. Flip Flow screens use a dual-mass vibration principle to alternately stretch and relax elastic polyurethane mats. This motion creates a 50g projectile acceleration that breaks the adhesive bonds of moisture films and dislodges near-size particles, fundamentally preventing clogging.

Q: How do I choose between MDI and TDI polyurethane for my screening mats?

A: Selection depends on your specific application and environment:

• Prioritize MDI for high-wear, high-impact tasks (e.g., iron ore, aggregates) or operations in harsh chemical (acidic/alkaline) and wet environments. MDI offers superior durability and a service life 1.5 to 3 times longer than TDI.
• Consider TDI if you need high elasticity to protect fragile or brittle materials (e.g., agricultural grains) or if operating in extreme cold down to -40°C.

Q: What is the maintenance intensity for these screen mats, and is the replacement process difficult?

A: Polyurethane mats are designed for low maintenance due to their self-cleaning properties. Modern designs utilize boltless fastening systems (such as snap-fit interference wedges or PU connectors), which create an absolutely smooth surface to prevent material buildup. These systems allow for very rapid replacement, enabling one operator to change ten square meters of screen surface in just one working hour

Q: Why Flip Flow instead of Linear Screens?

A: Flip Flow screens generate 50g acceleration which breaks surface tension and breaks up caked material, preventing blinding and pegging in materials with up to 50% moisture.

Q: MDI vs. TDI: Which should I choose?

A: Use MDI for heavy-duty, high-wear mining (ores/aggregates) as it lasts 1.5–3x longer. Use TDI for agriculture or extreme cold (down to -40°C) where flexibility is priority.

Q: How long does it take to replace screen mats?

A: Using boltless fastening systems, a single operator can replace 10 square meters of screen surface in just one hour.

Q: Can I customize the aperture shape?

A: Yes. Options include square, round, oblong, and specialized boomerang or peanut shapes designed to eject wedged particles
