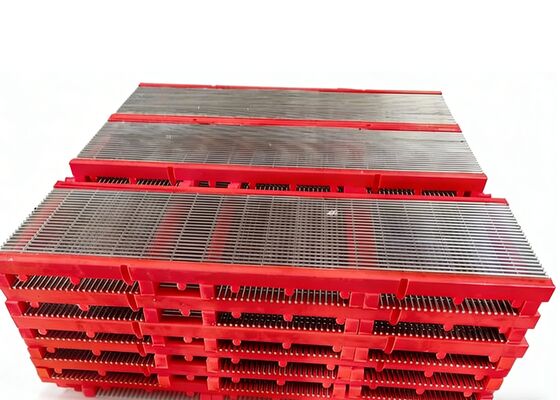

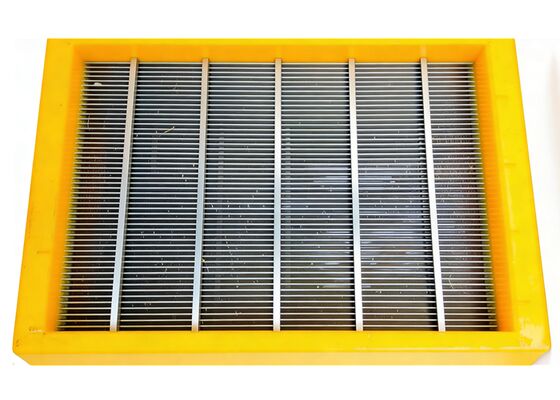

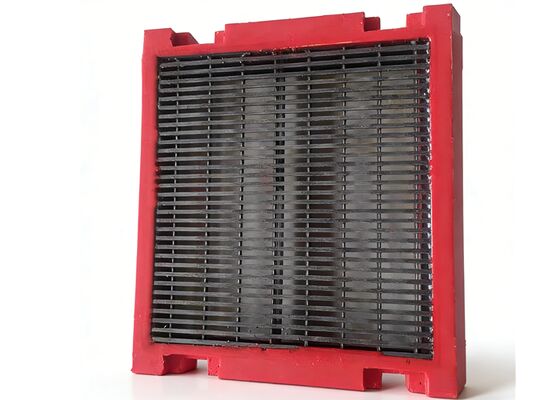

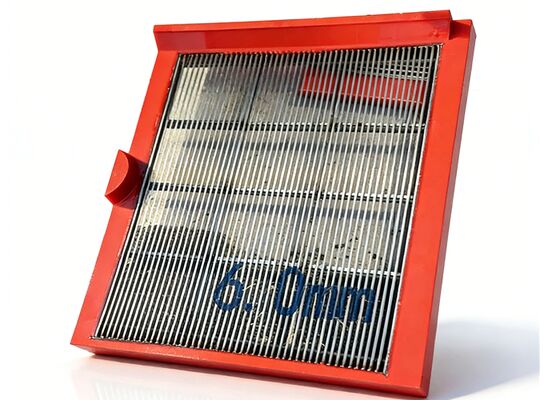

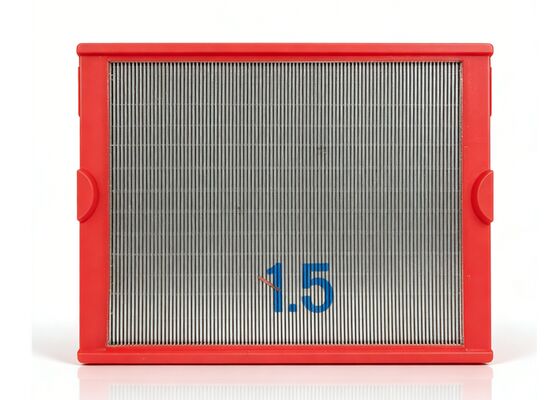

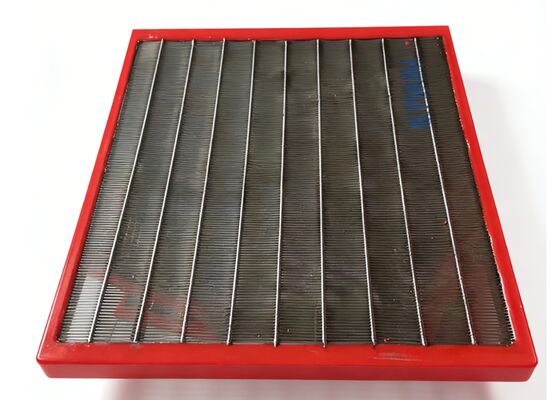

High Load Bearing High Manganese Steel Vibrating Wedge Wire Mining Screen for Mineral Classification

Designed for the toughest jobs in the mining sector, the Huatao vibrating wedge wire mining screen utilizes high-manganese steel and SS 304/316 to handle extreme impact and abrasive loads. This product is specifically engineered for Sorting & Classifying minerals, rocks, and coal into precise size fractions. With a robust construction formed by welding profiles to support rods, the screen offers high hardness and structural stiffness, enabling it to manage a maximum feed particle size of 30mm.

The screen achieves a high working efficiency of 20-40 m³/hour, making it ideal for large-scale mining operations. Its stable performance is backed by a "Grade 1" safety rating, ensuring it does not deform or lose tension even under intense vibration and high-load feeds. The V-wire profile ensures a flat screening surface and uniform gaps, which prevents material from "blinding" the mesh, thus maintaining high screening efficiency.

As a direct factory product, customization is a core strength. The screen opening sizes are available in a complete range, with standard options including 2mm and 30mm. The mounting systems are versatile, supporting bolt-on and pull-hook designs to ensure maintenance teams can replace panels quickly on-site.

• Corrosion-Resistant Material Selection: In water treatment and sludge dewatering, exposure to moisture and chemicals is constant. We utilize SS 304 and 316L stainless steel to ensure our screens survive these environments. This meticulous selection protects the purity of the filtered media and ensures a long usage time, even in non-stop 24/7 operations.
•  Fine Workmanship for High Throughput: Our welded wedge wire features a perfectly flat surface and uniform gaps. This is critical for "High Drainage Efficiency", as it allows for the rapid transit of liquids while the trapezoidal (V-shaped) wire section prevents material buildup.
• Stable Performance Across Diverse Loads: With high toughness and rebound resilience, our panels are resistant to deformation during high-volume screening. They are rated for a filtration precision range of 25-800 micrometers, making them suitable for everything from fine grain polishing to heavy industrial waste filtration.
• Direct Factory Customization: Huatao serves as a source factory, supporting full customization of wire diameters (1.6mm-4.0mm) and pore sizes (down to 0.5mm). This ensures that our screens can be adapted to the specific viscosity and particle size of any industrial media.

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!
