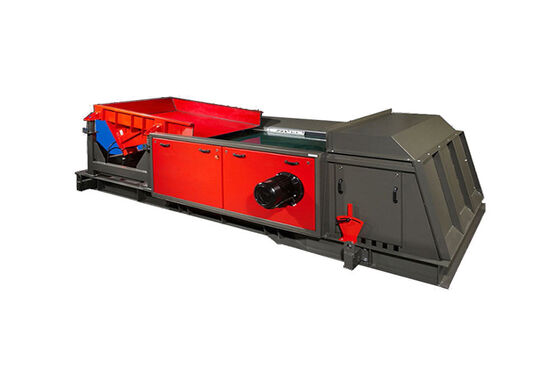

High Frequency ECS Non Ferrous Metal Separator for WEEE Recycling

Eddy Current Separator for E-waste PCB Metal Recovery 1-10mm

Product Description:

Designed for the rigorous demands of WEEE recycling facilities this non-ferrous metal separator removes aluminum heatsinks copper wiring fragments and zinc housings from shredded electronic scrap. The unit features a neodymium rare earth magnetic rotor fully enclosed in a stainless steel housing to prevent dust ingress. Operating at a variable speed from 1500 to 5200 RPM the rotor creates a high-frequency field that ejects non-ferrous metals as small as 2 mm. The belt is made from 6 mm thick anti-static rubber with a textured surface to grip materials firmly during the separation process. A 4 kW motor drives the system requiring a 380V 50Hz three-phase power supply. The feed chute is positioned at a 35-degree angle to optimize material flow and maximize metal throw distance. The overall dimensions are 2200 mm in length 1200 mm in width and 1500 mm in height making it suitable for space-constrained indoor installations. The machine frame is powder-coated in RAL 5010 blue which provides excellent scratch resistance and easy cleaning. Typical applications include processing crushed circuit boards shredded cable scrap and regrind from ABS plastic housings.

Product Introduction

This Eddy Current Separator (ECS) is an advanced sorting system designed to automatically eject non-ferrous metals (aluminium, copper, zinc, brass) from mixed solid waste streams. Built for continuous operation in Municipal Solid Waste (MSW) facilities, Incinerator Bottom Ash (IBA) recovery lines, and single-stream recycling centers, it transforms low-grade residue into profitable metal fractions.

Target Applications

• Municipal Solid Waste (MSW) Treatment Plants:

  Recovers beverage cans, aluminum foils, and small non-ferrous fragments from the heavy fraction after primary crushing / bag opening.

• Incineration Bottom Ash (IBA) Valorization:

  Extracts valuable non-ferrous metals from bottom ash, maximizing resource recovery and reducing disposal costs.

• Scrap Metal Recycling (Zorba Upgrading):

  Purifies shredded non-ferrous mixtures (Zorba) into high-grade copper, aluminum, and magnesium for smelters.

• Glass / Plastic Purification Lines:

  Removes metal contaminants from crushed glass (cullet) or plastic flakes to protect downstream shredders and improve end-product purity.

Key Advantages for Heavy-Duty Waste Streams

Separation Efficiency Guarantee

Up to 98% recovery rate for aluminium cans (20-50mm size) and 85-92% for fine non-ferrous particles (2-10mm), verified in real MSW plants.

Technical Specifications (Standard Range)

Competitive Advantages for Project Buyers

• Built for 24/7 harsh operation

  Reinforced frame, sealed bearings, and oversized shaft – tested in MSW plants handling >30% moisture and 15% abrasive content.

• Lower operating cost

  Energy-efficient rotor design consumes 20-30% less power than traditional models at same throughput.

• Easy integration

  Bolt-on design with standard inlet/outlet heights; can be retrofitted into existing conveyor lines within 2 days.

• Global after-sales support

  Spare parts (belts, bearings, rotor modules) available from regional warehouses. 12-month warranty + remote troubleshooting.

Request for Quotation (RFQ) – Please Provide:

To engineer the right solution for your facility, kindly share:

• Feed material description (e.g., MSW heavy fraction, bottom ash, glass cullet, Zorba)
• Particle size range (minimum to maximum in mm)
• Target output purity requirement (e.g., >95% aluminium)
• Expected processing volume (tons per hour or tons per day)
• Preferred working width (mm) and local voltage/frequency
• Site environmental conditions (indoor/outdoor, humidity, temperature)
• *Optional: Send a 2-5 kg material sample to our test center for a free separation analysis report.*
