E waste Recycling Machine Eddy Current Separator for Crushed Circuit Boards

E waste Recycling Machine Eddy Current Separator for Crushed Circuit Boards

Product Description:

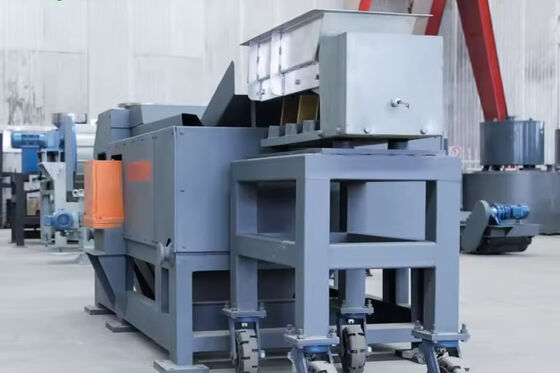

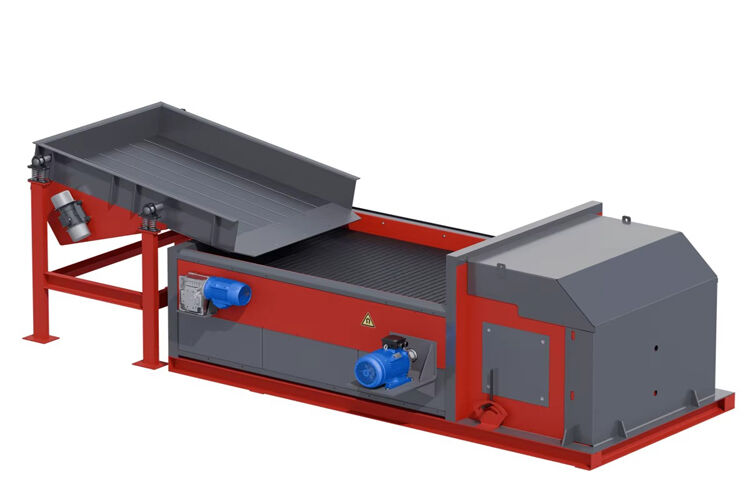

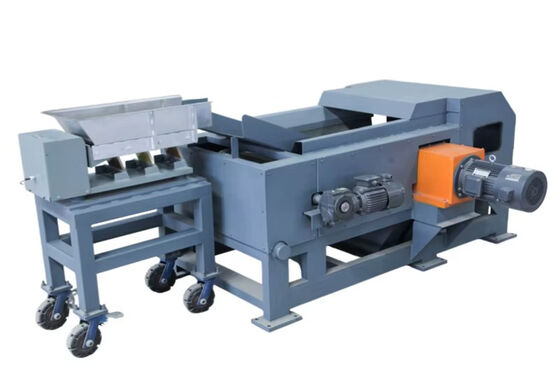

For recyclers processing shredded cable scrap this eddy current separator delivers high-purity copper recovery from plastic insulation. The machine uses a high-speed magnetic rotor with neodymium magnets arranged in an eccentric pattern to produce a concentrated alternating field. Rotor speed is adjustable from 1800 to 5000 RPM via a digital control panel allowing operators to optimize separation for different cable types. The belt measures 1000 mm in width and is made from 7 mm thick anti-static rubber with a chevron pattern to guide material flow. A 5.5 kW drive motor provides sufficient torque for continuous 24-hour operation. The frame is constructed from 5 mm steel plate finished with a durable RAL 5012 blue powder coating. A tool-free splitter baffle enables quick adjustment of the separation cut point without production interruption. The feed hopper includes a vibratory distributor to ensure even material spread across the full belt width. Particle size range for optimal performance is 3 mm to 20 mm with throughput capacities of 3 to 7 tons per hour. The machine dimensions are 2500 mm by 1400 mm by 1600 mm suitable for integration into existing cable granulation lines.

Product Introduction

This Eddy Current Separator (ECS) is an advanced sorting system designed to automatically eject non-ferrous metals (aluminium, copper, zinc, brass) from mixed solid waste streams. Built for continuous operation in Municipal Solid Waste (MSW) facilities, Incinerator Bottom Ash (IBA) recovery lines, and single-stream recycling centers, it transforms low-grade residue into profitable metal fractions.

Target Applications

• Municipal Solid Waste (MSW) Treatment Plants:

  Recovers beverage cans, aluminum foils, and small non-ferrous fragments from the heavy fraction after primary crushing / bag opening.

• Incineration Bottom Ash (IBA) Valorization:

  Extracts valuable non-ferrous metals from bottom ash, maximizing resource recovery and reducing disposal costs.

• Scrap Metal Recycling (Zorba Upgrading):

  Purifies shredded non-ferrous mixtures (Zorba) into high-grade copper, aluminum, and magnesium for smelters.

• Glass / Plastic Purification Lines:

  Removes metal contaminants from crushed glass (cullet) or plastic flakes to protect downstream shredders and improve end-product purity.

Key Advantages for Heavy-Duty Waste Streams

Separation Efficiency Guarantee

Up to 98% recovery rate for aluminium cans (20-50mm size) and 85-92% for fine non-ferrous particles (2-10mm), verified in real MSW plants.

Technical Specifications (Standard Range)

Competitive Advantages for Project Buyers

• Built for 24/7 harsh operation

  Reinforced frame, sealed bearings, and oversized shaft – tested in MSW plants handling >30% moisture and 15% abrasive content.

• Lower operating cost

  Energy-efficient rotor design consumes 20-30% less power than traditional models at same throughput.

• Easy integration

  Bolt-on design with standard inlet/outlet heights; can be retrofitted into existing conveyor lines within 2 days.

• Global after-sales support

  Spare parts (belts, bearings, rotor modules) available from regional warehouses. 12-month warranty + remote troubleshooting.

Request for Quotation (RFQ) – Please Provide:

To engineer the right solution for your facility, kindly share:

• Feed material description (e.g., MSW heavy fraction, bottom ash, glass cullet, Zorba)
• Particle size range (minimum to maximum in mm)
• Target output purity requirement (e.g., >95% aluminium)
• Expected processing volume (tons per hour or tons per day)
• Preferred working width (mm) and local voltage/frequency
• Site environmental conditions (indoor/outdoor, humidity, temperature)
• *Optional: Send a 2-5 kg material sample to our test center for a free separation analysis report.*
