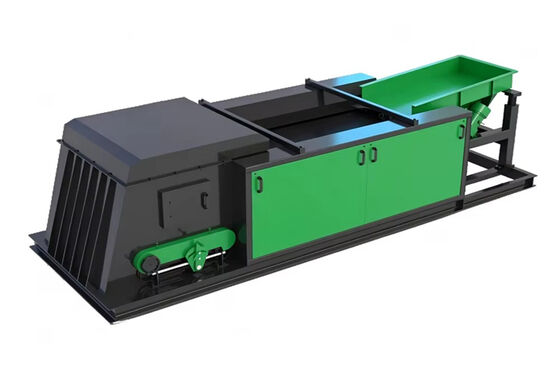

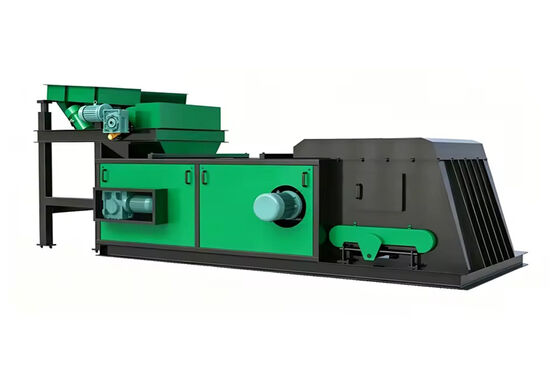

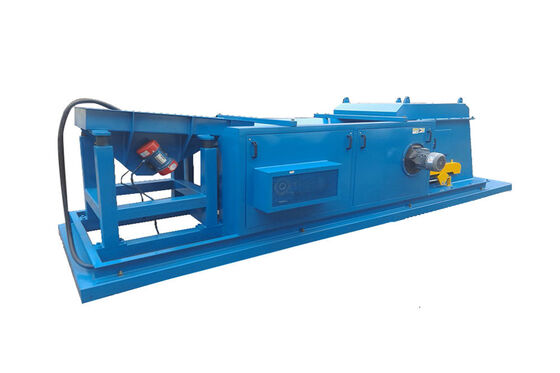

Fine Particle Eddy Current Separator 1-2mm for PCB Dismantling Plant

Fine Particle Eddy Current Separator 1-2mm for PCB Dismantling Plant

Product Description:

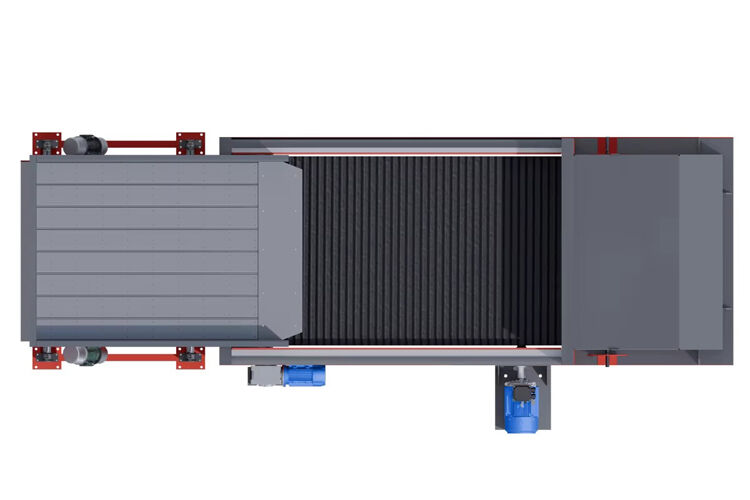

This industrial eddy current separator removes non-ferrous metals from shredded small appliance residue including coffee machines toasters fans and power tools. The unit uses a high-speed magnetic rotor with an eccentric design that generates a powerful alternating field extending 50 mm above the belt surface. Rotor speed is adjustable from 1200 to 5000 RPM via a variable frequency drive with digital readout. The belt width of 1200 mm processes 5 to 12 tons per hour of mixed material with particle sizes from 5 mm to 40 mm. A 7.5 kW motor provides the necessary torque for heavy-duty continuous operation. The belt material is 8 mm thick heavy-duty rubber with a chevron profile and anti-static properties. The frame is constructed from 6 mm steel plate with a reinforced base finished in RAL 5005 blue powder coating. A pneumatic splitter baffle system allows remote adjustment of the separation cut point from a control room. The feed section includes a magnetic drum pre-separator to remove ferrous metals before material reaches the eddy current rotor. This two-step configuration is standard in European WEEE recycling facilities.

Product Introduction

This Eddy Current Separator (ECS) is an advanced sorting system designed to automatically eject non-ferrous metals (aluminium, copper, zinc, brass) from mixed solid waste streams. Built for continuous operation in Municipal Solid Waste (MSW) facilities, Incinerator Bottom Ash (IBA) recovery lines, and single-stream recycling centers, it transforms low-grade residue into profitable metal fractions.

Target Applications

• Municipal Solid Waste (MSW) Treatment Plants:

  Recovers beverage cans, aluminum foils, and small non-ferrous fragments from the heavy fraction after primary crushing / bag opening.

• Incineration Bottom Ash (IBA) Valorization:

  Extracts valuable non-ferrous metals from bottom ash, maximizing resource recovery and reducing disposal costs.

• Scrap Metal Recycling (Zorba Upgrading):

  Purifies shredded non-ferrous mixtures (Zorba) into high-grade copper, aluminum, and magnesium for smelters.

• Glass / Plastic Purification Lines:

  Removes metal contaminants from crushed glass (cullet) or plastic flakes to protect downstream shredders and improve end-product purity.

Key Advantages for Heavy-Duty Waste Streams

Separation Efficiency Guarantee

Up to 98% recovery rate for aluminium cans (20-50mm size) and 85-92% for fine non-ferrous particles (2-10mm), verified in real MSW plants.

Technical Specifications (Standard Range)

Competitive Advantages for Project Buyers

• Built for 24/7 harsh operation

  Reinforced frame, sealed bearings, and oversized shaft – tested in MSW plants handling >30% moisture and 15% abrasive content.

• Lower operating cost

  Energy-efficient rotor design consumes 20-30% less power than traditional models at same throughput.

• Easy integration

  Bolt-on design with standard inlet/outlet heights; can be retrofitted into existing conveyor lines within 2 days.

• Global after-sales support

  Spare parts (belts, bearings, rotor modules) available from regional warehouses. 12-month warranty + remote troubleshooting.

Request for Quotation (RFQ) – Please Provide:

To engineer the right solution for your facility, kindly share:

• Feed material description (e.g., MSW heavy fraction, bottom ash, glass cullet, Zorba)
• Particle size range (minimum to maximum in mm)
• Target output purity requirement (e.g., >95% aluminium)
• Expected processing volume (tons per hour or tons per day)
• Preferred working width (mm) and local voltage/frequency
• Site environmental conditions (indoor/outdoor, humidity, temperature)
• *Optional: Send a 2-5 kg material sample to our test center for a free separation analysis report.*
