Introduction For Heavy-Duty Hydraulic Wall Saw for Thick and Heavily Reinforced Concrete

One of the key advantages of a hydraulic wall saw is its low-vibration cutting method. Unlike impact breakers, the diamond blade cuts concrete and reinforcement through grinding rather than impact. The saw head follows a fixed guide rail, producing a controlled and straight cutting path with almost no shock vibration. This makes hydraulic wall saws suitable for sensitive renovation projects where surrounding structures must be protected. Typical applications include old buildings, hospitals, office buildings, residential properties and heritage restoration. By minimizing structural disturbance, the equipment can help reduce the risk of surrounding concrete cracking and unnecessary secondary repair work.

Data Sheet For Heavy-Duty Hydraulic Wall Saw for Thick and Heavily Reinforced Concrete

Applicable Scenarios

• Indoor renovation: Cut openings for doors, windows and elevator shafts on shear walls, slab cutting in office buildings, hospitals and residential areas, as well as protective restoration of historic buildings where vibration control is strict.
• Outdoor infrastructure: Bridge maintenance, pier cutting, tunnel structural modification, demolition of large factories and cutting of foundation supporting beams.
• Confined narrow spaces: Operation inside tunnels, basements and equipment rooms. The power pack and saw head can be placed separately with long hydraulic hoses.
• High-strength reinforced concrete: Suitable for thick walls, heavily reinforced concrete, rock and masonry walls requiring deep cutting.

Working Characteristics

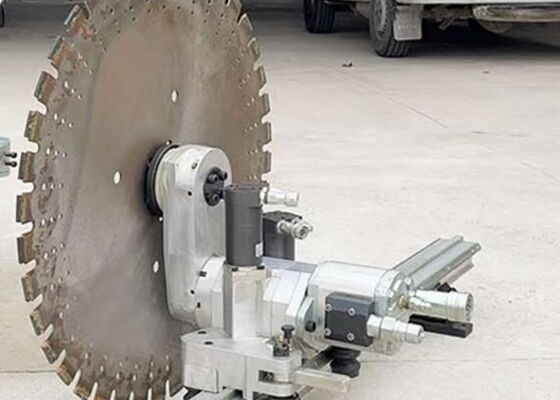

• Guide rail guided, linear static cutting The saw head travels along pre-installed aluminum guide rails to ensure fixed cutting path. It is static cutting without impact. The diamond segments grind through rebar and concrete, generating nearly no shock or vibration.
• Hydraulic drive with stable heavy-duty torque The hydraulic system maintains high and stable torque under variable loads. It will not stall when encountering dense steel bars and hard aggregates. Feed pressure can be adjusted to match concrete of different strengths for continuous cutting of thick sections.
• Wet cutting with water cooling Water is sprayed continuously during cutting to cool the saw blade and suppress dust. Dust emission is greatly reduced compared with dry cutting.

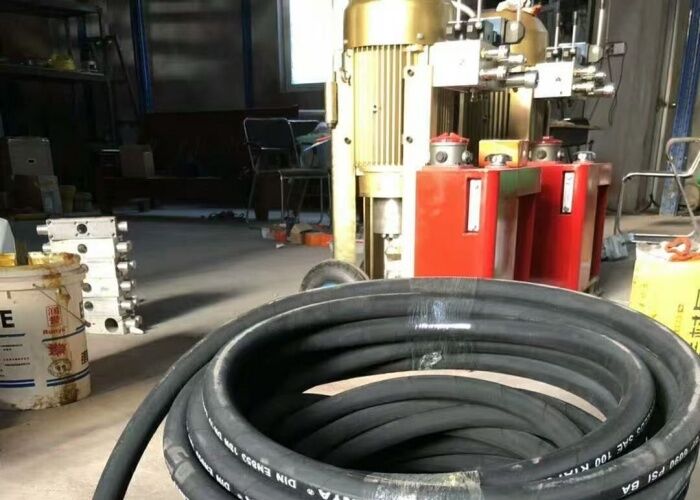

• Split-type structure Power pack and saw head are connected by high-pressure hoses. The compact saw head can access narrow spaces. Some models support remote control to keep operators at a safe distance.
• One-pass forming with large cutting depth Standard models achieve maximum cutting depth of 620–730 mm. Larger diamond blades can be fitted to cut through thick walls in one pass, delivering continuous and straight cuts.
• Preparatory work required Construction process: layout marking → anchor guide rails → install saw head and blade → connect hydraulic hoses and water pipes → pressure test → feed and cut. Guide rail installation takes time before cutting.

Core Advantages

• Structure protection, low vibration Nearly no impact vibration. It avoids cracks on surrounding concrete and debonding between rebar and matrix. Ideal for old buildings, heritage structures and seismic component renovation, complying with static demolition standards in Europe and America. No extra structural reinforcement or repair work is needed.
• Strong heavy-load capacity and deeper cutting depth Under the same size, hydraulic output torque exceeds electric and high-frequency wall saws. It is the preferred heavy-duty wall saw solution for overseas large demolition projects targeting thick and heavily reinforced concrete.
• High cutting precision and smooth surface The guide rail locks the cutting path for precise dimension control. The cut surface is flat, reducing follow-up grinding work for door/window installation and repair.
• Low noise and effective dust control Much quieter than impact breaker hammers. Wet cutting suppresses dust, meeting environmental requirements for urban construction in residential areas, hospitals and other noise-sensitive zones.
• Stable performance for long continuous heavy-duty work Hydraulic system features good thermal stability. Combined with blade water cooling, it supports long-hour non-stop cutting for tight-schedule large static demolition projects.
• Controllable and safe operation Feed pressure is adjustable. Built-in hydraulic pressure protection activates under overload. Remote operation keeps operators away from cutting area to reduce risks of flying fragments and blade breakage.
