Product Details:
Payment & Shipping Terms:
|
| Material: | Ceramic | Thickness: | 6-300mm |
|---|---|---|---|
| Product Name: | Suction Box Cover | Density: | 0.92-0.97g/cm3 |
| Application: | Paper Making | Origin: | China |
| High Light: | paper mill machine parts,paper machine parts |
||
0.92-0.97g/cm3 Vacuum Ceramic Suction Box Paper Making Machine Parts
1.The Suction Box Description
UHMWPE(Ultra-high Molecular Weight Polyethylene) wear resistance dewater element is used for paper manufacturing machinery. Dewater element component includes: suction box covers, Doctor blade,Forming board,Scraper blade and so on. UHMWPE had used in parts of paper manufacturing machinery widely.
Panel material ultra-fine grain, uniform and compact; stability of T composite, structure, a dovetail groove locked firmly without keys; pulp fiber and filler particle attachment rate is low.Effective protection of forming fabrics. Long service life.
The forming board of the net part of fourdrinier paper machine consists of several slats with narrow gaps between them.The function of the forming board is to control the dewatering of fresh paper, and support the net between the chest roller and the first table roller (or the first group of table boards), to eliminate the phenomenon of jumping and improving the paper sheet
uniformity.
2.The Suction Box Specification
|
Product Name
|
0.92-0.97g/cm3 Vacuum Ceramic Suction Box Cover |
|
Material(Surface Covers)
|
AL-OXIDE CERAMIC or ZR-OXIDE CERAMIC or SI-NITRIDE CERAMIC |
|
Material(Dewatering Boxes)
|
Stainless Steel Components
|
|
Features(Surface Covers)
|
1. Excellent Paper Forming
2. Reduced Paper Two-Sideness
3. Longevity of Ceramic Material Itself
4. Extended Service Life for Machine Clothing (Forming Wires & Press Felts).
5. Thermal Shock Resistant Up To 600°C (SI-NITRIDE CERAMIC)
|
|
Features( Dewatering Boxes)
|
1.Suitable for All Paper Grades and Speeds
2.Optimum Paper Quality
3.Efficient Drainage
4.Reduced Energy Consumption
|
3.The Suction Box Advantage
(1)very flat on the surface
(2)The thickness tolerance is +2 -0,some made according to your requirements.
(3)The color is pure and any color can be made by us.
(4)We can give you an accurate size of UHMW-PE Sheet with advanced machine.
(5)Different shaped UHMW-PE Sheets also can be made by us like bending sheet.
(6)According to different requirements with different application, special specifications can be customized,
like anti-UV, fire-resistant,anti-static and with other characters.

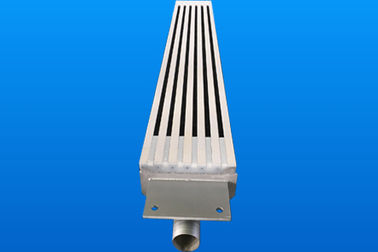

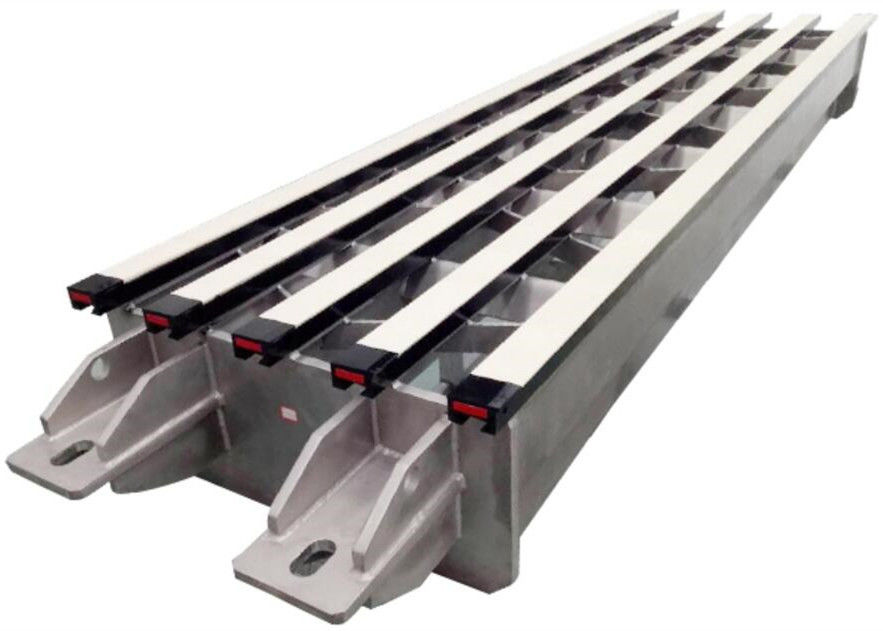

4.Suction Box Pictures
5.Suction Box Releated Products
Dewatering Element
Forming Board
Hydrofoils With t Bar
Vaccum Box
Bi-Vacuum Box/ Duo-Vac/Tri-Vac Boxes
Bugley Box/Begaly Box/Uhle Box/Blow Box/Felt Suction
Top Former
