Payment & Shipping Terms:
|Material:||Special 48CrMo Alloy Steel Fine Forgings||Diameter:||100-600mm|
|Lentgh:||100-4000mm||Application:||BHS TCY FOSBER Single Facer Machine|
|Hardness:||≥ HRC55°||Micro Hardness Of Carbonized Tungsten Coating:||HV950-1100|

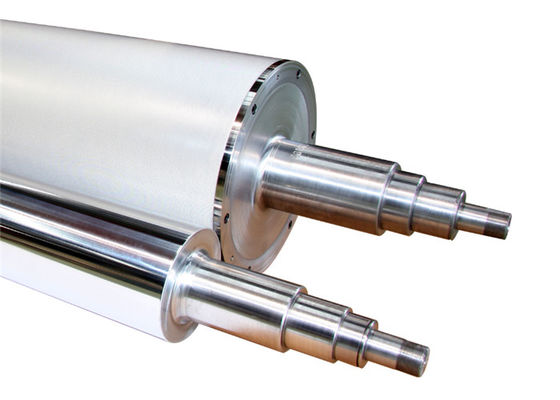

Tungsten Coating A Flute Corrugating Roller Products Description:
Tungsten Coating A Flute Corrugating Roller Used for carton box corrugator machine .The upper and lower corruagted( corrugating, flute) roller for single facer machine, Made of 48 CrMo alloy steel or tungsten carbide with hard treatment by laser,the hardness is above HRC58o-60o.The surface is well treated by grind and plated chrome. Different type of flute according to user's request.
Tungsten Coating A Flute Corrugating Roller Specification
1. Special 48CrMo alloy steel fine forgings for corrugated roll
2. The hardness of base unit in medium-frequency quenching>HRC58
3. Thickness of anti-friction carbonized tungsten coating is between 0.05 and 0.06mm
4. The micro hardness of carbonized tungsten coating HV950-1100
5.Run-time is double than hard-chrome coating,but its price is 10% higher only.
Corrugating Roll Flute Type
|Flute Type||Flute||Teeth/300mm||Height of Flute|
Tungsten Coating A Flute Corrugating Roller Process Flow :
1.Packing : Use non-fumigation wooden box, it's convenient to customs clearance.Could save customers more time.
2.Delivery Time:Shipped in 60days after payment
Inspection of corrugated roller before installation
(1) clean and check the corrugated surface appearance of corrugated roller (including the quality of surface plating).
(2) clean and check all fastening parts of connection (including internal and external threads).
(3) check the outer diameter and middle height of corrugated roll (the whole roll surface is divided into more than five measuring points from both ends to the middle).The middle and high detection points are odd, and the middle and high data should be symmetrical on both sides.Measure with the outside diameter micrometer of corresponding specification (outside diameter micrometer can be bought commonly by electromechanical company).
(4) check the corrugated roll height.Needle type depth dial meter measurement (needle type depth dial meter is not currently bought in China, must be imported.Or may use the ordinary depth dial gauge to change the system).
(5) clean and check the outer diameter and appearance of each shaft gear of corrugated roller, and measure the outer diameter with the micrometer of corresponding specifications.
