Product Details:
Payment & Shipping Terms:
|
| Material: | Synthetic / Polyester | Use Position: | Press Section Of PM |
|---|---|---|---|
| Application: | Paper Making | Pm Speed: | 550-800m/min |
| Felt Weight: | 1450-1850GSM | Produce Process: | Needle |
| Thickness: | 3.8-4.6mm | Color: | White |
| High Light: | paper making felt,polyester forming fabrics |
||
Paper Making Synthetic Press Felt , Low Elongation Industrial Felt Fabric
Paper making felt, also called paper machine felt, mainly used on the paper machine to transfer and press extra water out from the wet paper sheet.
Press Felt Working Principle:
In the press section of a paper machine, water is removed from the newly formed sheet. The paper sheet is carried by a press fabric between two rolls, where water is removed with the application of pressure. also can be assisted by the use of vacuum and heat.
Press Felt Classification:
A papermakers' felt for the press or dewatering section of a papermaking machine is formed with an inner woven fabric and with a plurality of longitudinally extending, transversely spaced heavy yarns or strands which are supported on the bottom surface of the fabric by a relatively light cross-machine yarn or binder pick which interconnects the heavy strands with the warp yarns of the fabric. It is a kind of precious material in paper making industry. It can be divided into three types: wet felt, upper felt and dry felt according to the uses
There are Two series of paper making press felt available in the market, Endless Press Felt and Seam Press Felt
And Endless Press Felt could be divided in to some types according to the structure, Single Layer Felt, Double Layer, and Laminated 1+1, 1+1+1 , 1+2, 2+1, 2+2.
Press Felt Specification:
| GSM | Structure style | Application | Note |
| 950-1300 | Double layer domestic material | Corrugating, kraft paper,package paper | Excellent tensile strength, good filtration, good adsorbability, dimension atability, long life performance |
| 1000-1100 | Double layer domestic material | Corrugating, kraft paper,package paper | Excellent tension strength, good filtration, good ability to absorb, dimension stability, long life performance |
| 900-1100 | Double layer domestic material | Corrugating, kraft paper,package paper | Excellent tensile strength, good filtration, good ability adsorbability, long life performance dimension stability |
| 1100-1400 | Double layer domestic material | Write paper, printing paper, newspaper,package paper, kraft paper | Lighten trace, high line press resistance, long life performance |
| 950-1300 | Double layer import material | Corrugating, kraft paper, package paper |
Excellent tensile strength, good filtration, anti-abrasion, long life performance, dimension stability |
| 1000-1100 | Double layer import material | Kraft paper, paper board | Excellent tensile strength, good filtration, long life performance, anti-abrasion dimension stability |
| 1200-1500 | Double layer import material | Write paper, printing paper, newspaper,package paper, kraft paper | Lighten trace, high line press resistance, good filtration, dimension stability, long life performance |
| 900-1100 | Double layer import material | Corrugating, kraft paper, package paper | Excellent tension strength, good filtration, long life performance, dimension stability |
| 1200-1500 | Double layer import material | Big roll press for high-grade, package paper, paper borad | Lighten trace, high line press resistance, good filtration, dimension stability, long life performance |

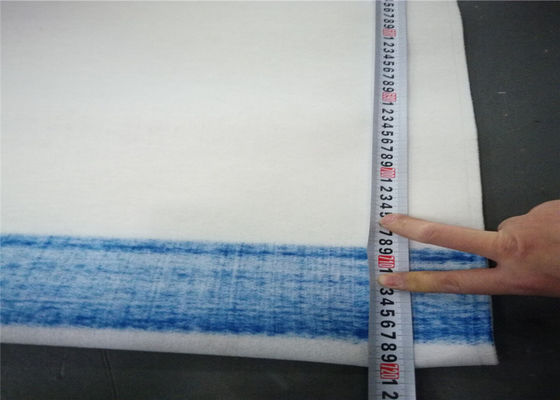

Product Pictures:
press Felt Feature:
1. High anti-compaction capacity.
2. Extremely high elasticity and recoverability.
3. Strong drainability abd larger void volumn.
4. Long holding time of wear resistance and plastic strength of felt.
5. Smooth felt surface and even pressure distribution.
Press Felt Advantage:
Good permeability & drainage
Low elongation, Stable size
Easy to wash and clean
Good adaptability, long life time
FAQ:
1. Q: How to confirm the type?
A: There are many methods for us to confirm the type:
1). tell us the specifications data.
2).tell us your requirements as more as possible, and our engineers will give you the best suggestion and design the most suitable mesh/ wire/ fabrics/ screen/ belt.
3). send us the photos with size
4). send us a small piece sample.
2. Q: Waht is the payment terms?
A: We prefer T/T, but for some countries, we will also accept L/C.
So pls feel free about the payment.
3. Q: When will delivery the goods?
A: Usally, we will deliver the goods within 15 working days. And if the quantity is big, it will take about 20-30 working days.
4. Q: How long will the fabric be used?
A: The time is different differ the usage and factory. But we can confirm and make sure that our product can be used longer than any other one in China.
5. Q: Is the package strong enough for the long transportation?
A: Of course it is.
By sea, we will pack every piece into wooden/ polywood box.
By air, we will pack it by strong water-proof bag.
Looking for ideal Press Felt Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Press Felts are quality guaranteed. We are China Origin Factory of Paper Making Press Felt. If you have any question, please feel free to contact us.
