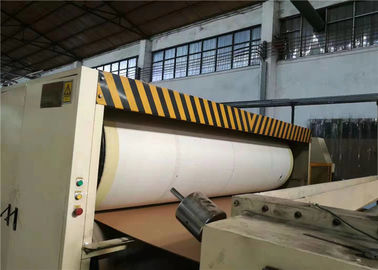

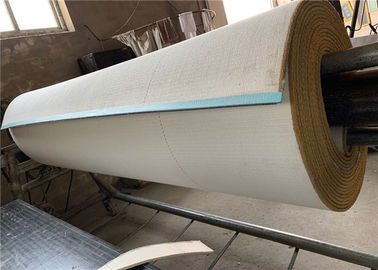

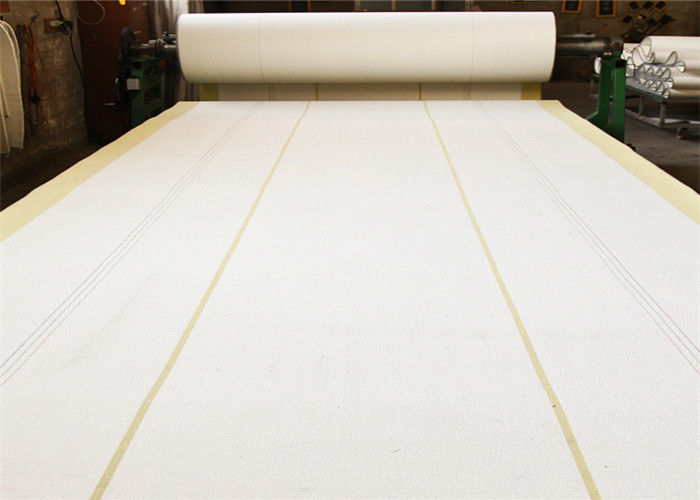

100% Synthetic Corrugator Belt with Kevlar Edge Huataobelt-006

Large Image : 100% Synthetic Corrugator Belt with Kevlar Edge Huataobelt-006

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Model Number:	Huataobelt-006

Payment & Shipping Terms:

Minimum Order Quantity:	10M2
Price:	Price accept negotiation
Packaging Details:	Wooden box
Delivery Time:	15-20days
Payment Terms:	Western Union,T/T,,L/C
Supply Ability:	40000M2/YEAR

Contact Now

Detailed Product Description

Material:	Synthetic Material	Thickness:	9±0.3mm
Wdith Range:	1000mm - 3200mm	Heat Resistance:	220℃,the Kevlar Edge Upto 350℃
Weight:	7.5kg/m2	Length:	80m
Color:	White	Applicaltion:	Automatic 3/5/7ply Corrugator Line
Highlight:	cotton conveyor belt , needle belt

100% Synthetic Corrugator Belt with Kevlar Edge Huataobelt-006

Product Specifications

Attribute	Value
Material	Synthetic Material
Thickness	9±0.3mm
Width range	1000mm - 3200mm
Heat resistance	220℃, the kevlar edge up to 350℃
Weight	7.5kg/m²
Length	80m
Color	White
Application	Automatic 3/5/7ply corrugator line

Product Description

100% Synthetic High Speed Corrugator Belt 9mm Thickness with Kevlar Edge is a consistent development based on the proven woven high speed corrugator belt range. Ideal for corrugating systems with high production speeds, even load systems and frequently changing paper widths.

Key Features

Suitable as top belt with high speed (above 150m/min) production
Heat and super tear resistance
Inwoven Aramid edge to reinforce the belts, reduce wear substantially and ensure a long lifetime
Particularly for frequent changes of board width
Popular in all corrugators plants

Technical Specifications

Product	Inwoven Aramid Edge Belt - kevlar edge
Thickness	9mm
Width range	1000mm - 3200mm
Length	80 meters
Heat-resistance	240℃ (the kevlar edge up to 350℃)
Tensile strength	70Mpa
Coefficient of friction	≥ 0.40µ
Weight per unit	(7.5±0.3)kg/㎡
Air-permeability 40mm water Column	2.0m³/㎡ min
Seam	Hot JAW lacing/Clipper with rubber coated
Edge	100mm or 200mm inwoven aramid edge reinforcement (kevlar)
Suitable position	Top belt

Seam Options

Model 1: Fastener Clipper With Rubber
Model 2: Hot JAW Lacing

Packaging Options

Type I: Waterproof film + Damp blanket + Plastic bag + Pallet
Type II: Waterproof film + Damp blanket + Plastic bag + Wood package + Pallet

Note: The wooden box uses non-fumigation wood box for convenient customs clearance, saving customers time.

Product Advantages

High grade material

Safety packing to protect

High absorption of moisture

High durability

Maximum flexibility

Suitable for machine speed 50-300M/min

Good running with low noise

Tear strength

Less trimming

Long life time running
