Ceramic Cover Board Paper Mill Parts High Vacuum Suction Box Low Vacuum Box

Ceramic Cover Board Paper Mill Parts High Vacuum Suction Box Low Vacuum Box
Ceramic Cover Board Paper Mill Parts High Vacuum Suction Box Low Vacuum Box Ceramic Cover Board Paper Mill Parts High Vacuum Suction Box Low Vacuum Box

Large Image :  Ceramic Cover Board Paper Mill Parts High Vacuum Suction Box Low Vacuum Box

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO9001
Model Number: High Vacuum Box
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 500 usd/pc
Packaging Details: Standard export packing
Delivery Time: 30days
Payment Terms: L/C, T/T,
Supply Ability: 100sets/month
Detailed Product Description
Product Name: Ceramic Cover Board High Vacuum Suction Box And Low Vacuum Box Size: Customized
Cover Material: Ceramic, UHMWPE Body Material: SS 304 316
Payment Term: L/C,T/T Delivery Time: Within 20 Days After Received Deposit
Application: Fourdrinier Forming Section Function: Paper Pulp Dewatering
High Light:

ceramic cover board paper mill parts

,

low vacuum box paper mill parts

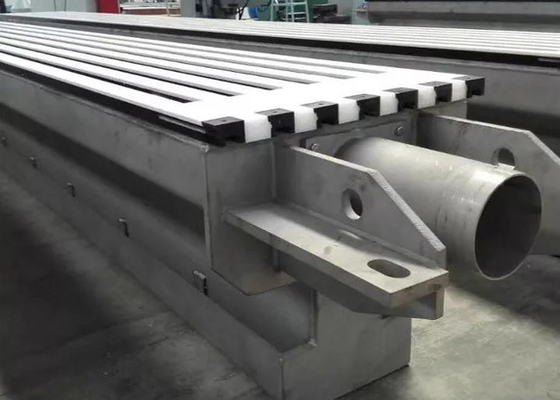

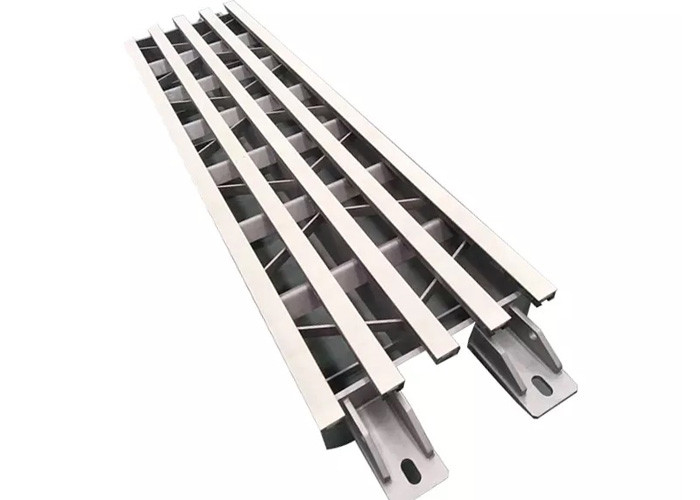

Ceramic Cover Board High Vacuum Suction Box And Low Vacuum Box For Paper Making Machine



Ceramic Cover Board High Vacuum Suction Box And Low Vacuum Box Description

The high vacuum suction box has a reasonable structure design and is a sealed structure. It is sucked by a vacuum pump to make the paper sheet from low-pressure dehydration to high-pressure rapid dehydration, thereby speeding up the drying of the paper, enhancing the dehydration effect, and forming the paper.


Both ends of the panel are equipped with adjusting blocks to adjust the width of the suction opening of the paper sheet. The adjustment block is also equipped with a lubrication device, which can reduce the coefficient of friction by lubricating with clean water and increase the service life of the net



Ceramic dewatering elements are widely used in the forming section of paper machine, such as forming board, suction box, vacuum suction box panel, low suction box panel,hydrofoil strip etc. Its use greatly improves the speed of the paper machine, the quality of the paper, and reduces the cost.



Product Name Ceramic Cover Board High Vacuum Suction Box And Low Vacuum Box For Paper Making Machine
Material Al-oxide ceramic or zr-oxide ceramic or si-nitride ceramic Advantage
Service Any design can be made as a request (1) Non-Toxic and smell
(2) Low coefficient of friction
(3) Corrosion resistant
(4) Abrasion and impact resistant
(5)Anti-Weather and Anti-Aging
(6) Self-lubricating
(7) Wear Resistant
(8) Great liner material for industrial
material handling applications
(9) UV Resistant/ultraviolet-resistance sheet
(10) High Operating Temperature
(11) High Tensile Strength
(12) High Viscosity
(13) Flame Retardant
(14) Reprocessed
Color Black / White / Yellow / Blue / Red / Orange
or as request
Application In paper and pulp industry, Paper machines
Type Forming board
Hydrofoils
High vacuum box
Low vacuum box
Tri-vac box
Bi-vac box
Felt suction box
Key Features and Benefits wear-resistant UHMW-PE material
extremely smooth surface
low friction coefficient
a low level of adhesion.
No adhesion Excellent chemical resistance
For machines with speeds up to 800 m/min



Ceramic Cover Board Paper Mill Parts High Vacuum Suction Box Low Vacuum Box 0

Ceramic Cover Board Paper Mill Parts High Vacuum Suction Box Low Vacuum Box 1

Ceramic Cover Board Paper Mill Parts High Vacuum Suction Box Low Vacuum Box 2



FAQ



Q1: What is the payment term?
A: TT or LC, anyway is available.



Q2: How long is your delivery time?
A: Generally it is 15 days if the normal size. If it is customized or big size, it may need 25 days.



Q3: What is the mode of goods transportation?
A: If clients don't need the products urgently, we normally use road transportation, rail transportation, and maritime transportation
according to the client's cost budget. If clients need the products urgently, we normally choose express or air transportation for the
fast delivery.



Q4: Do you provide samples? is it free or extra?
A: Yes, we could offer a small piece(A4 size) sample for free charge but do not afford the cost of freight.



Q5: How to confirm the type?
A: There are two methods for us to confirm the type:

1). You can tell us the specifications data.
2). Provide us with your sample.

Our engineer will do the test according to your data or samples, then recommend the suitable type to you.
