D Type 40m3 Volume Hydrapulper Machine

China HUATAO LOVER LTD certification
China HUATAO LOVER LTD certification
Huatao company is a very good company , I am very willing to cooperate with you, safe, efficient, professional, honest, happy! Thank you for providing me with stable service and products. -----EUROPAT


I'm Online Chat Now

D Type 40m3 Volume Hydrapulper Machine

D Type 40m3 Volume Hydrapulper Machine
D Type 40m3 Volume Hydrapulper Machine D Type 40m3 Volume Hydrapulper Machine D Type 40m3 Volume Hydrapulper Machine

Large Image :  D Type 40m3 Volume Hydrapulper Machine

Product Details:
Place of Origin: China
Brand Name: HUATAO
Certification: IOS
Model Number: HT-25
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: By negotiated
Packaging Details: Poly-Wooden Box or Steel Plate
Delivery Time: 1-2 weeks
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 1 set/days
Detailed Product Description
Core Components: D Type Hydropulper Machine Type: Hydro Pulper
Type: Pulping Equipment Voltage:: 380V
Production Capacity: 300-370t/d Volume(m3): 40m3
High Light:

40m3 hydrapulper


Pulping Equipment

D type 40m3 Volume Hydrapulper



1. Hydrapulper Description


The equipment is used for all types of waste paper breaking,also for the breaking pulpboard and dry paper.It has such advantages as strong ability,short breaking time,convenient operation and maintenance,low energy consumption,safe and stable operation.
It has both vertical and horizontal.


Our hydro pulper for paper recycling adopts D type structure, which improves the work efficiency, and it can be used for pulping waste paper & wet strengh paper. D Type Hydrapulper is mainly used to crushing pulp board, wastepaper, deinking, and pulp purification. Through dissociating, it can maximum make the paper’s fiber dissociating into fiber bundles or single fibers, while at the same time, it can maximize maintain impurity’s shape and strength.


2. Hydrapulper Specification


Type HT-25 HT-26 HT-27 HT-28 HT-29 HT-30 HT-31 HT-32 HT-33 HT-34 HT-35 HT-36 HT-37
Volume: m3 15 20 25 30 35 40 45 50 60 70 80 100 130
Consistency: % 3-5
Capacity: t/d 80-120 140-180 180-230 230-280 270-320 300-370 350-400 400-450 480-550 550-630 600-700 750-850 950-1050
Motor: kw 160 185 220 280 315 355 400 450 560 630 710 900 1000



3. Hydrapulper Feature


1. Pulper rotor off -center position, so that the waste paper could touch the rotor more quick, higher frequency.

2. The tank is made by welded steel,outside of mouth is ultra high strength steel,which used to strengthen tank, in the bottom of cone have deflector, which can make the paper pulp reflux circulating. In the bottom of tank is impurity discharge outlet.

3. Pulper rotor and pulp tray is higher than pulper groove bottom plane, which can reduce the pulper rotor and impurities contact, so that prolong life-span, preventing the twisted rope winding on the rotor.


4. Hydrapulper Advantages


This machine can promptly crushing waste paper, with large capacity, low power consumption, and saving vapour medication. And it is easy to maintain, with long service life, low noise, and the vibration is not strong, in stable operation, also it can save energy.

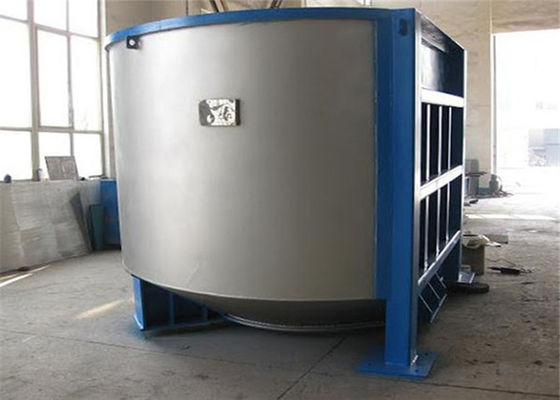

D type hydrapulper in worksite:


5.Hydrapulper Services


(1)Pre-sales Service

Offering comprehensive technical and business consultation services;

Proposing the most suitable scheme and equipment for our clients;

Designing and fabricating targeted products according to the special requirements of clients;

Training periodically high qualified service technician.


(2)After-sales Service

Highly inspecting equipments in every working procedure, quality comes first;

Fast & Safe Delivery;

Assisting our clients for foundation construction of equipments;

Dispatching engineers to install and debug equipments;

Training the first-line operators on site;

Regularly visit clients to solve production problems;

Providing life-long maintenance service;

Providing technical exchanging;


6.Hydrapulper Pictures


D Type 40m3 Volume Hydrapulper Machine 0D Type 40m3 Volume Hydrapulper Machine 1
