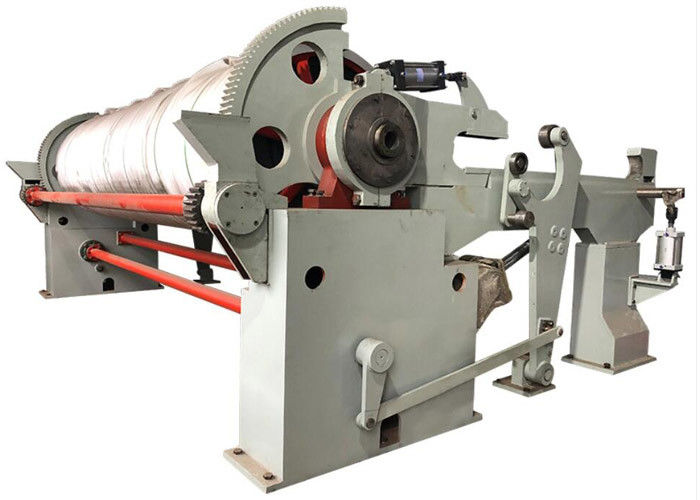

High Speed Pope Reel Paper Winder Machine For Paper Production

High Speed Pope Reel Paper Winder Machine For Paper Production
High Speed Pope Reel Paper Winder Machine For Paper Production
video play

Large Image :  High Speed Pope Reel Paper Winder Machine For Paper Production

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO9001
Model Number: Paper Machine Pope Reel
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000/SET
Packaging Details: Standard export packing
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 10 sets per month
Detailed Product Description
Product Nmae: High Speed Paper Machine Pope Reel, Pope Reel Winder Machine Application: Paper Machine - Paper Collection, Winder
Paper Grade: 15gsm - 360gsm Paper Type: Tissue, Kraft, Testliner, Printing And So On.
Working Speed: Design Accoring To Request, Suitable For Your Paper Machine Origin: China
High Light:

high speed production paper winder machine

,

pope reel paper winder machine

High Speed Paper Machine Pope Reel, Pope Reel Winder Machine For Paper Production



Paper Machine Pope Reel, Pope Reel Winder Machine Introduction

Roller library type paper roll machine with the same net paper width of the paper machine, used for the paper machine copied from the width of the paper roll into a tight uniform paper roll. It has the characteristics of reliable and convenient storage of replacement roll. The equipment mainly consists of the main frame, a paper cylinder device, a stretcher roller device, the main arm device, a secondary arm device, a pneumatic scraper device, and so on. When the machine is running, the paper roll is driven to rotate by the friction of the surface against the rotating cylinder.




This machine is used for the first set of finishing equipment behind the paper machine. The roll cylinder is operated actively, and the roll is driven by friction to complete the paper winding. By adjusting the pressure of the auxiliary arm and the cylinder of the main arm to adjust the linear pressure between the roll and the cylinder, the operation can meet the needs of different kinds of paper and make the paper rolled down from the paper machine into a compact and uniform roll paper.

Technical details of Paper Machine Pope Reel, Pope Reel Winder Machine

Product Name High Speed paper machine Pope Reel, Pope Reel Winder Machine For Paper Production
Net paper width 1092 - 5600mm
Working speed m/min customization, suitable for your current paper machine
Paper gsm 15gsm - 360gsm
Paper type Tissue, Kraft, Testliner, Printing & Writing, culture paper, and so on.
Max Jumbo Roll diamater 2800mm



Working theory of Horizontal pneumatical Paper Machine Pope Reel, Pope Reel Winder Machine
The winding roller is driven to wind paper by a cooling drum, the cooling cylinder is equipped with a driving motor. In working, the linear pressure between the paper roll and cooling drum can be adjusted by controlling the air pressure of the main arm and vice arm air cylinder.



Paper Machine Pope Reel, Pope Reel Winder Machine Feature
high working speed,no-stop, save paper, shorten paper roll changing time, neat tight big paper roll, high efficiency, easy operation.



Paper Machine Pope Reel Pre-sales Service
Offering comprehensive technical and business consultation services;
Proposing the most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technicians.



Paper Machine Pope Reel After-sales Service
Highly inspecting equipment in every working procedure, quality comes first;
Fast & Safe Delivery;
Assisting our clients with foundation construction of equipment;
Dispatching engineers to install and debug equipment;
Training the first-line operators on site;
Regularly visit clients to solve production problems;
Providing life-long maintenance service;
Providing technical exchange;



High Speed Pope Reel Paper Winder Machine For Paper Production 0High Speed Pope Reel Paper Winder Machine For Paper Production 1
