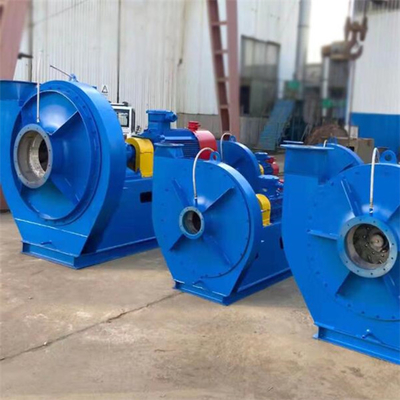

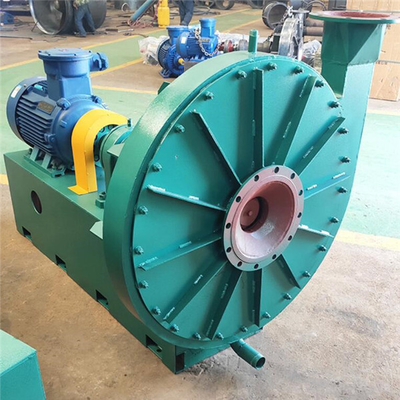

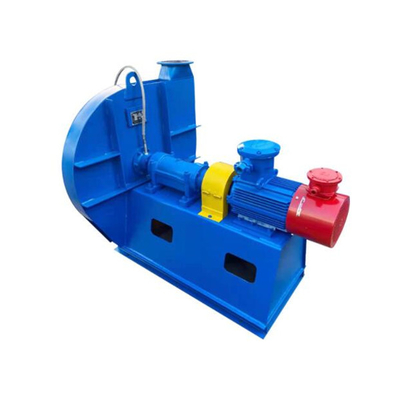

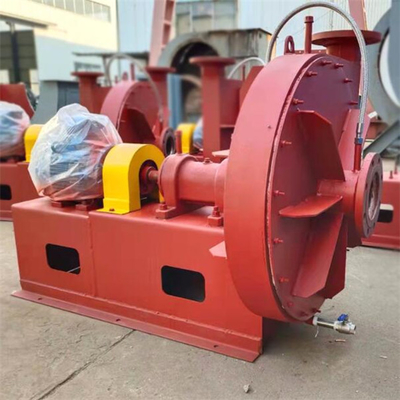

Explosion Proof Single Stage Centrifugal Blower Pressurized Sealed Gas

Explosion-Proof Gas Pressurized Fan Pressurized Sealed Single Stage Gas Centrifugal Blower

Indroduction For Explosion-Proof Gas Pressurized Fan Pressurized Sealed Single Stage Gas Centrifugal Blower ​​:

Gas pressurized centrifugal blower is mainly used for gas pressurization in factories and mines gas stations, blast furnace, coke oven, converter gas pressurization, ammonia, biogas, methane and other tight gas transportation, as well as high-pressure forced blasting.

Features For Explosion-Proof Gas Pressurized Fan Pressurized Sealed Single Stage Gas Centrifugal Blower​​​​​​:

The machine has low noise, flat performance curve, large flow adjustment area, high efficiency, low energy consumption, especially good sealing performance and stable operation, which is well received by customers. The fan can be made to rotate clockwise or counterclockwise, and the outlet angles are 0 degrees, 90 degrees, and 180 degrees, respectively. Users can choose according to the actual distribution needs of the pipe network.

Composition For Explosion-Proof Gas Pressurized Fan Pressurized Sealed Single Stage Gas Centrifugal Blower:

This type of fan is a plate-welded integral structure, mainly composed of the following components:

1. Impeller. The impeller is the heart of the whole fan, so the blade shape of the machine is optimized according to the new high-efficiency fan theory. The material is made of high-quality stainless steel or alloy according to different needs, which has good corrosion resistance and sufficient strength. After the impeller is formed, it is corrected by static and dynamic balance, and the accuracy is G4 level.

2. Chassis. It is welded with high-quality carbon steel and the machine base as a whole, which ensures the rigidity of the whole machine, and epoxy resin is coated inside the machine shell to enhance the corrosion resistance: the upper part of the machine shell is equipped with G3/4" steam pipe interface, and the lower part is equipped with G1. 5" drain valve: The inlet and outlet flanges of the fan are standard flanges to facilitate the user's pipeline connection.

3. Sealing group. The seal mainly adopts soft packing seal and centrifugal seal. There are no wearing parts in the seal, the structure is very simple, the effect is particularly reliable, and the replacement is convenient.
