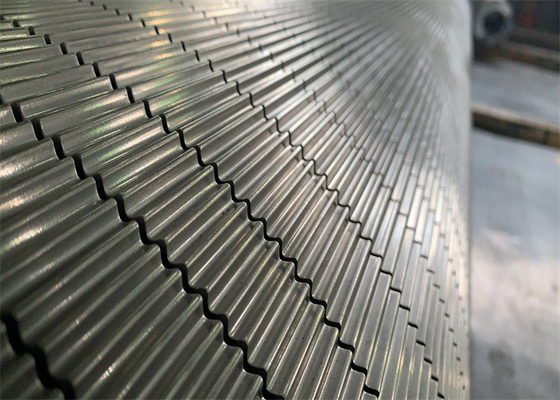

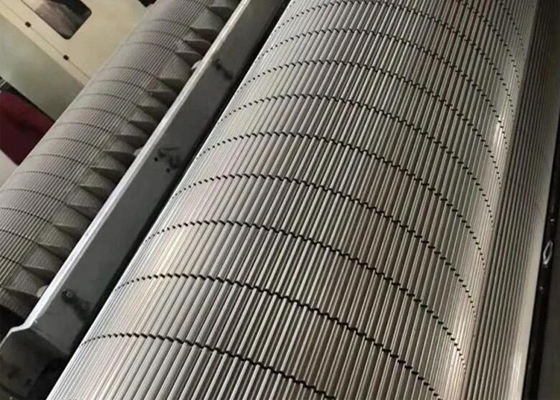

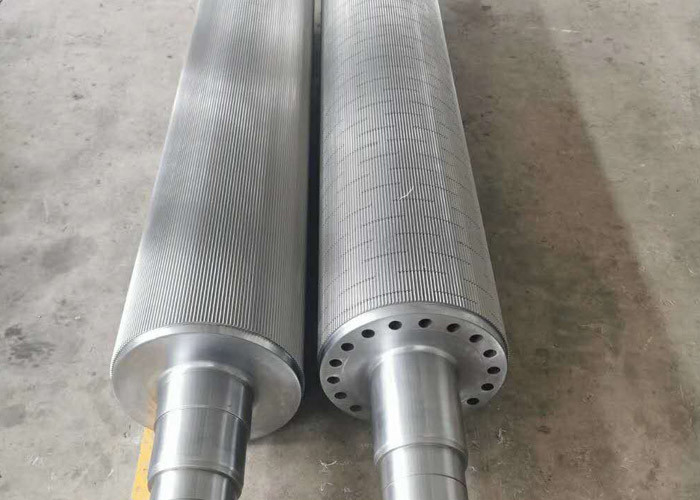

48crmo / 50crmo Alloy Steel Single Facer Corrugated Roll Customize

Large Image : 48crmo / 50crmo Alloy Steel Single Facer Corrugated Roll Customize

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO9001
Model Number:	48crmo/50crmo Alloy Steel Single Facer Corrugated Roll Corrugating Roller

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 3000/PC
Packaging Details:	Standard Export Packing
Delivery Time:	20 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100 sets per year

Contact Now

Detailed Product Description

Product Name:	48crmo/50crmo Alloy Steel Single Facer Corrugated Roll Corrugating Roller	Customize:	Available
Material Capabilities:	48crmo Or 50crmo Alloy Steel	Diameter:	100-600mm
Lentgh:	100-4000mm	Flute Type:	A.C.B.E.F.G As Customer Request
Highlight:	Customize Single Face Corrugated Roll , 50crmo Alloy Steel Corrugated Roll , 48crmo Alloy Steel Corrugating Roller

48crmo / 50crmo Alloy Steel Single Facer Corrugated Roll Customize

Product Specifications

Attribute	Value
Product Name	48crmo/50crmo Alloy Steel Single Facer Corrugated Roll Corrugating Roller
Customize	Available
Material Capabilities	48crmo or 50crmo Alloy Steel
Diameter	100-600mm
Length	100-4000mm
Flute Type	A.C.B.E.F.G as Customer Request

Product Description

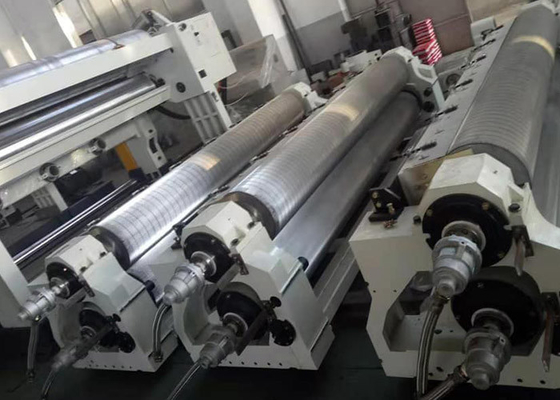

The 48crmo/50crmo Alloy Steel Single Facer Corrugated Roll Corrugating Roller is the most important part of corrugated cardboard production line. Its abrasion resistance and service life are the main technical indexes for measuring quality and economical efficiency, directly influencing the economic benefits of manufacturer.

The most important parameter is the flute profile. To design the flute profile, we must know the corrugated paper gsm, speed, flute height, correct diameter and other requirements such as good FCT, saving paper, etc. Our engineers have rich experience in designing flute profiles to prevent problems like flute paper breakage, low speed, collapsed flute, or high-low flute.

Technical Specifications

Material: Special 48CrMo alloy steel fine forgings
Hardness: >HRC58 Quenching layer depth: 5-7mm
Coating Thickness: 0.06 and 0.07mm Tungsten Coating Thickness
Surface plating: Micro hardness HV900-1250
Combination hardness: >75MPa
Visible optical porosity: <1%
Design: The optimization of economic type design
Processing: High-speed Corrugating Rolls with twice fine grinding

Flute Type Specifications

Flute Type	Flute	Teeth/300mm	Height of Flute (mm)
A	UV	30±2	4.6-4.9
C	UV	39±3	3.6-3.9
CB	UV	44±2	3.0-3.4
B	UV	50±2	2.6-2.9
BE	UV	66±3	1.9-2.1
E	UV	90±10	1.1-1.5
F	UV	124±10	0.7-0.8
G	UV	185±12	0.5-0.65
N	UV	200±15	0.4-0.5
O	UV	267 or design	0.25-0.35
