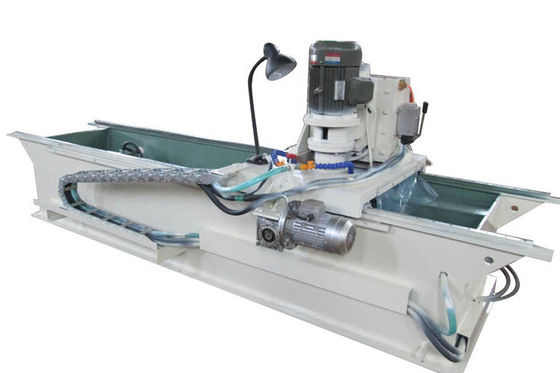

Automatic Blade Sharpener Machine Use For NC Cutting Blade



Type HT-MZ6125 grinding machine is a multi-utility grinding machine. The machine is mainly used in grinding all sorts of knives. It is the necessary machine in woodwork, food, printing paper, plastic and veneer. It is special for cutting-paper machine. The frame is jointed in the double iron plates in high quality. The advanced and reasonable frame can ensure the precision of the machine. There is an electromagnetic cupola in the machine body. There is a worm transmission on one end which can adjust the angle from 0 to 90 degree when the hand is revoled. On front side there is switch block which is used to adjust the working distance. And on the back side is Variable frequency speed regulating rack and pinion drive. Pump is fixed on the cover of the water tank, equipped with electric controlling box. The machine uses the engine drive. There is a gear clearance mechanism between the saddle and the motor. You can adjust it to be best. The main case is on the frame. There is a special motor for rising up and down, which is in the grinding-knives’ box. The special motor is special for grinding the knives. The machine is equipped with super electromagnetic suction cap. The angle from 0 to 90 degree is adjustable with a calibrating device. The working distance is adjustable in fixed range. Wet grinding is applied to the precise grinding of the angle of the knife with cup-shaped grinding wheel. Different grinding wheels can grind knives in different material . The special motor is special for grind (axis gap as adjustable). Auto-feed and hand-feed can be chosen in the course of working.

Product Name	Knife grinder
Material	Double steel plate
Performance	High precision and low noise
Max. Grinding Length	1600mm
Working range	0 ~ 1600mm with mobile motor
Cup-shaped knife grinding wheel	Φ200×100
Angle of platform	0~90°
Speed of grinding	2.52m/min
Grinding motor	YZ112M-4 4KW 1400r/min
Overall measure	3000×1300×1800mm



GRINDING MACHINE MAIN FEATURES:

1) The main parts of the machine are cast of steel and welded as little as possible due to the contact with water during machine working.

2)The worktable use the electromagnetic chuck. And very convenience to clamp knife. The worktable is easy to adjust the angle by worm gear.

3) The rail use linear guide and ensure the steady horizontal movement of grinding head .

4) The machine is easy to operate, high precision, save the time of Grinding knife in the factory, and improve the production efficiency in the factory
