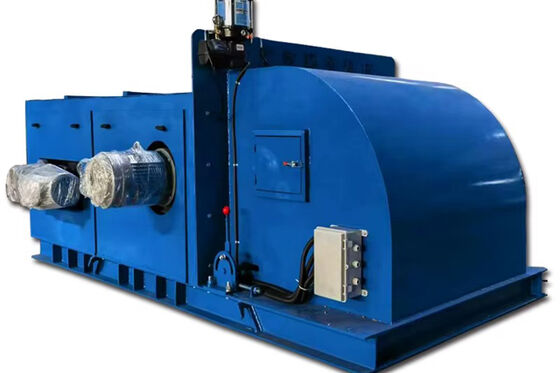

High Purity Eddy Current Separator for Upgrading from E waste Stream

High Purity Eddy Current Separator for Upgrading from E waste Stream

Product Description:

Recyclers processing shredded lithium-ion battery packs will find this eddy current separator effective at recovering aluminum and copper current collectors from the black mass. The machine operates with rotor speeds from 1200 to 4000 RPM lower speeds are recommended for this application to minimize sparking risks. The belt width is 800 mm with a throughput capacity of 1.5 to 3 tons per hour for battery shredder output sized 2 mm to 15 mm. A 4 kW motor powers the system with an explosion-proof enclosure for safety when processing battery materials. The belt is made from 6 mm thick anti-static rubber with a dissipative surface that prevents static charge buildup. The frame is painted in RAL 1023 yellow using a conductive epoxy coating to ground any static electricity. A manual splitter baffle with a non-sparking brass adjustment mechanism allows safe cut point changes. The feed chute is lined with 2 mm polyurethane to prevent metal-on-metal contact. The entire machine is equipped with grounding straps to ensure electrical continuity. This separator is typically installed inside a ventilated enclosure with fire suppression systems for battery processing safety.

Product Introduction

This Eddy Current Separator (ECS) is an advanced sorting system designed to automatically eject non-ferrous metals (aluminium, copper, zinc, brass) from mixed solid waste streams. Built for continuous operation in Municipal Solid Waste (MSW) facilities, Incinerator Bottom Ash (IBA) recovery lines, and single-stream recycling centers, it transforms low-grade residue into profitable metal fractions.

Target Applications

• Municipal Solid Waste (MSW) Treatment Plants:

  Recovers beverage cans, aluminum foils, and small non-ferrous fragments from the heavy fraction after primary crushing / bag opening.

• Incineration Bottom Ash (IBA) Valorization:

  Extracts valuable non-ferrous metals from bottom ash, maximizing resource recovery and reducing disposal costs.

• Scrap Metal Recycling (Zorba Upgrading):

  Purifies shredded non-ferrous mixtures (Zorba) into high-grade copper, aluminum, and magnesium for smelters.

• Glass / Plastic Purification Lines:

  Removes metal contaminants from crushed glass (cullet) or plastic flakes to protect downstream shredders and improve end-product purity.

Key Advantages for Heavy-Duty Waste Streams

Separation Efficiency Guarantee

Up to 98% recovery rate for aluminium cans (20-50mm size) and 85-92% for fine non-ferrous particles (2-10mm), verified in real MSW plants.

Technical Specifications (Standard Range)

Competitive Advantages for Project Buyers

• Built for 24/7 harsh operation

  Reinforced frame, sealed bearings, and oversized shaft – tested in MSW plants handling >30% moisture and 15% abrasive content.

• Lower operating cost

  Energy-efficient rotor design consumes 20-30% less power than traditional models at same throughput.

• Easy integration

  Bolt-on design with standard inlet/outlet heights; can be retrofitted into existing conveyor lines within 2 days.

• Global after-sales support

  Spare parts (belts, bearings, rotor modules) available from regional warehouses. 12-month warranty + remote troubleshooting.

Request for Quotation (RFQ) – Please Provide:

To engineer the right solution for your facility, kindly share:

• Feed material description (e.g., MSW heavy fraction, bottom ash, glass cullet, Zorba)
• Particle size range (minimum to maximum in mm)
• Target output purity requirement (e.g., >95% aluminium)
• Expected processing volume (tons per hour or tons per day)
• Preferred working width (mm) and local voltage/frequency
• Site environmental conditions (indoor/outdoor, humidity, temperature)
• *Optional: Send a 2-5 kg material sample to our test center for a free separation analysis report.*
