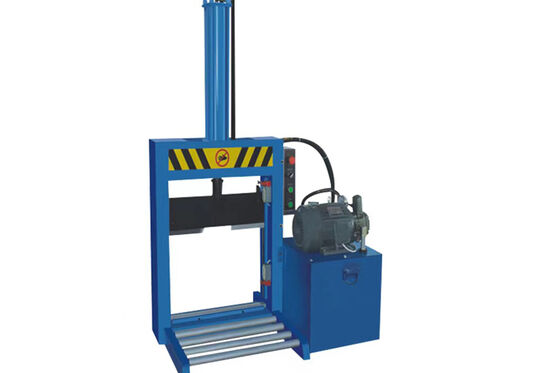

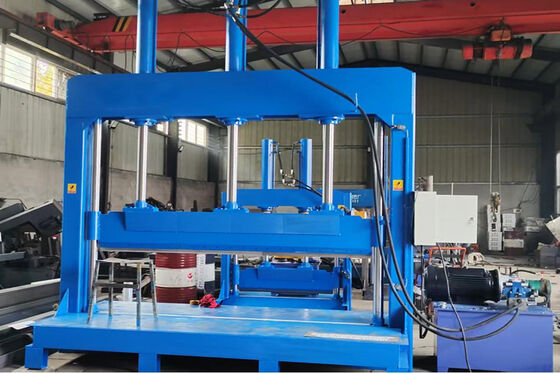

Guillotine Type Rubber Bale Cutter Machine For Recycling

Vertical Rubber Bale Cutter is a piece of equipment used for processing rubber. Its function is to cut blocks (or bales) of natural or synthetic rubber into smaller, more manageable pieces that are easier to process. Since rubber is a solid material characterized by high elasticity and toughness—and given that processing scales, conditions, and rubber varieties and properties vary widely—rubber cutters are available in a diverse range of specifications and performance capabilities. Therefore, when purchasing and operating a rubber cutter, it is essential to make selections and adjustments closely tailored to specific operational requirements.

Rubber cutters are primarily utilized for cutting natural rubber, synthetic rubber, and various plastic materials. They are particularly well-suited for installation near rubber mixers, where they serve to cut rubber bales into smaller chunks for subsequent processing.

Structure of the Rubber Cutter

A rubber cutter typically consists of several main components: the cutting blade, machine frame, working hydraulic cylinder, base, auxiliary worktable, hydraulic system, and electrical control system. A protective pad—made of nylon or soft lead—is installed on the base beneath the cutting blade to safeguard the blade's cutting edge. When cutting raw rubber, the material is manually positioned beneath the cutting blade; upon pressing the start button, the blade—driven by the piston rod—descends along guide rails mounted on the frame to sever the rubber material. The machine frame is equipped with upper and lower limit switches; these switches control the directional control valve to reverse the movement of the cutting blade, while also serving to protect the cylinder head of the hydraulic piston.

Advantages of the Rubber Cutter

1. The vertical rubber cutter features a simple yet rational structural design, offering ease of operation, convenient handling, and a lightweight profile.

2. The machine tool operates via a single-blade hydraulic mechanism and is primarily composed of the cutting tool, machine frame, working hydraulic cylinder, and hydraulic system.

3. The vertical rubber cutter boasts a long stroke length and powerful cutting force, facilitating both operation and maintenance. Furthermore, it is equipped with safety protection devices, ensuring safer and more efficient operation during use.
